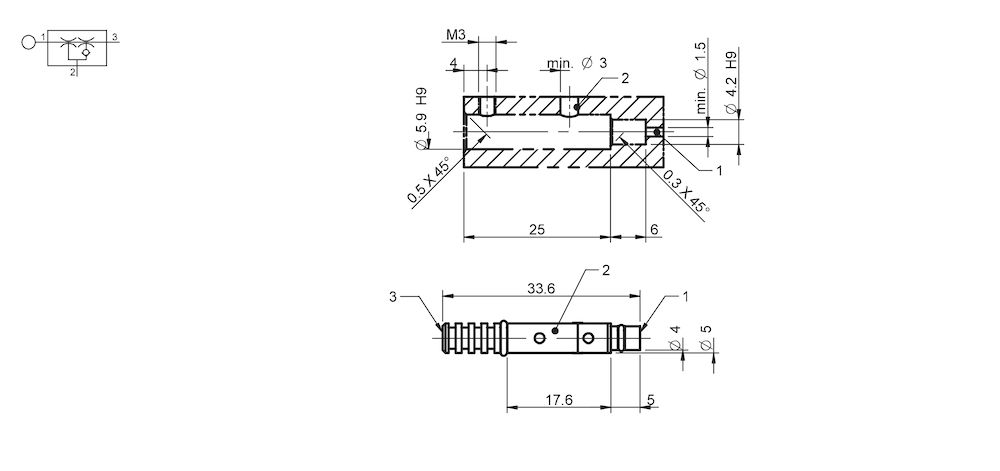

Piab COAX® cartridge MICRO Bi03-2

COAX® is an advanced solution for creating vacuum with compressed air. Based on Piab’s multistage technology, COAX® cartridges are smaller, more efficient and more reliable than conventional ejectors, that allows for the design of a flexible, modular and .

$38.01
Part Number
  • 01.06.966
Highlights...

Features

  • Two-stage COAX® cartridge - MICRO - probably the world's smallest multistage vacuum ejector.
  • Vacuum level to 24.5 -inHg at extremely low feed pressure.
  • High operational reliability in case of fluctuating or low compressed-air pressure.
  • The low weight makes it suitable to integrate close to the suction point in high speed pick-and-place applications of small objects.
  • Suitable for handling sealed objects.
  • Used in P2010 and VGS™2010.
  • Material: Nitrile (NBR);Al;PA;SS;TPE
  • Temperature: 14 °F
  • Dimensions: 0 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
