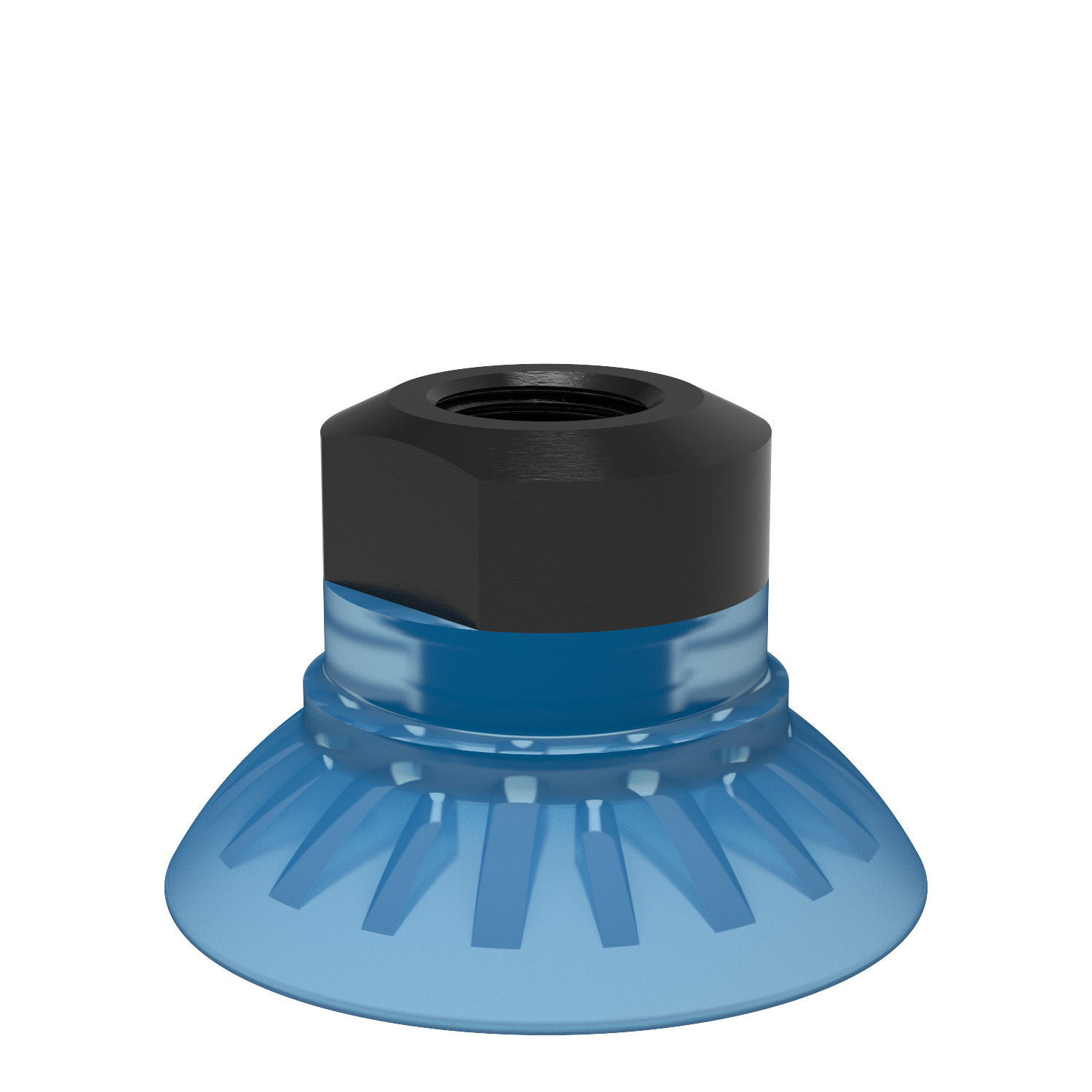

Piab Suction cup FC35P Polyurethane 50, 1/8" NPSF female, with dual flow control valve

DURAFLEX® suction cups have been developed to meet the strict demands of the automotive industry. A typical application is the feeding of sheet metal into a press tool. The slightly curved shape and internal cleats provide a good grip and the strengthened.

$38.67
Part Number
  • FC35P.4D.04DA
Highlights...

Features

  • Suitable for slightly domed and flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
  • Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
  • The suction cups have cleats that prevent thin objects from being disfigured.
  • DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
  • The DURAFLEX® material is mark-free.
  • Material: Polyurethane (PU)

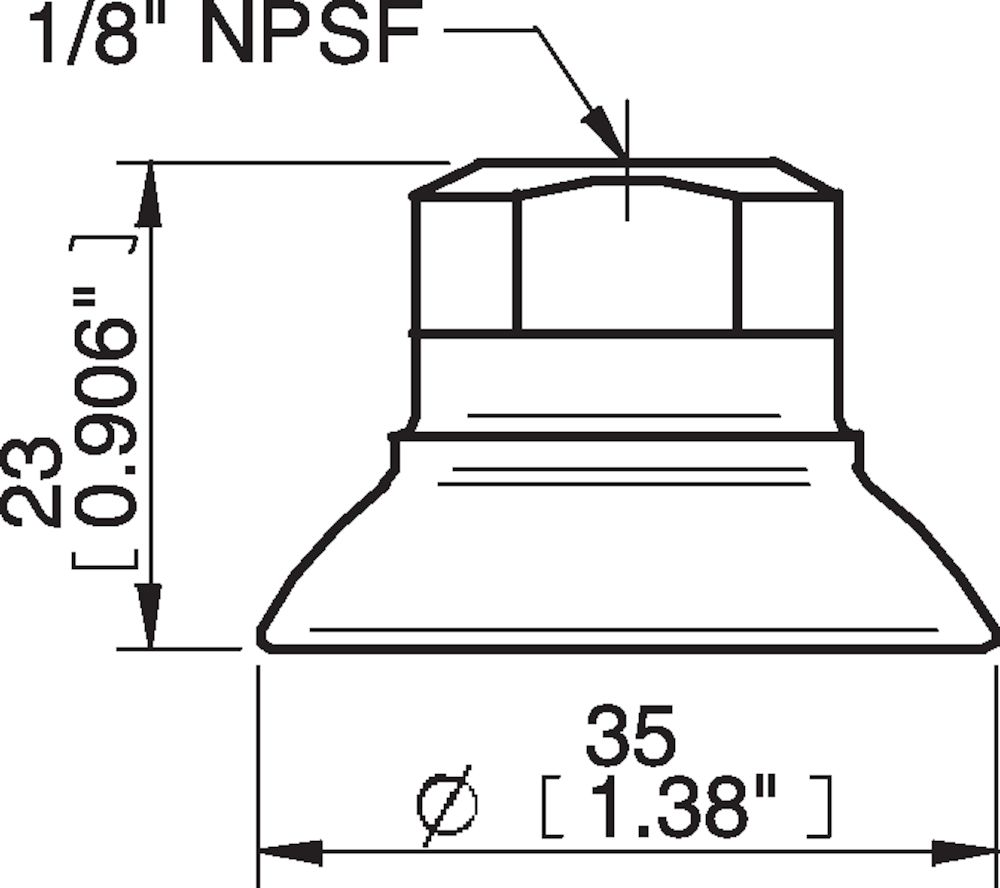

  • Dimensions: 0.91 in. (length), 0.01 lb. (weight)
  • Fitting Size: 18 mm.
