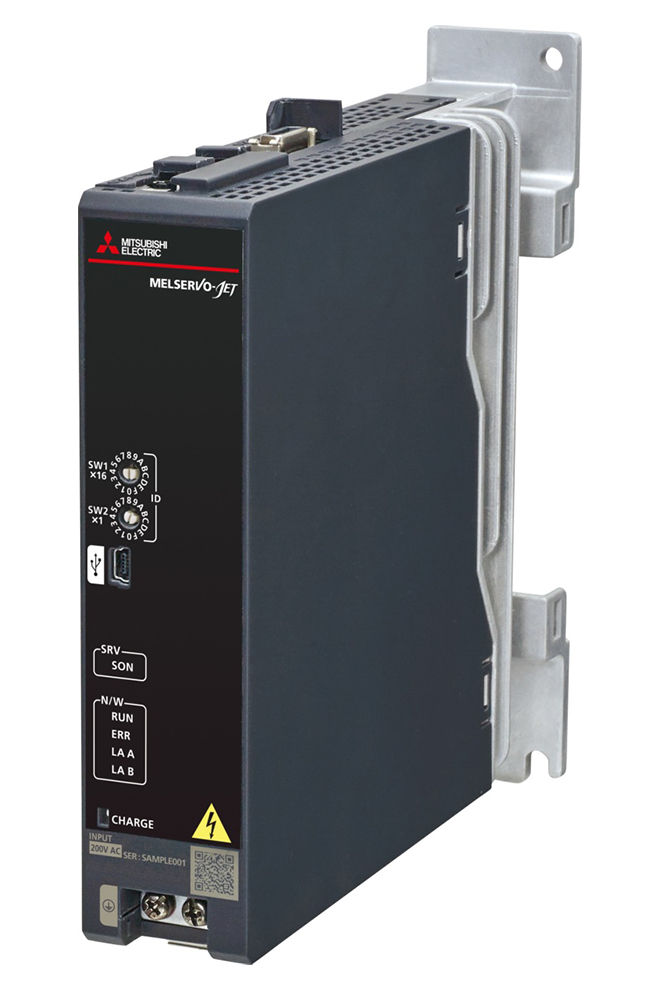

Mitsubishi MELSERVO-JET Series Servo Amplifier

AC servo amplifier with CC-Link IE TSN or EtherCAT interfaces for advanced motion control. 0.1 to 3kW output. 200V class.

This model has 14 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Rated output: up to 3kW
  • Interface(s):
    • CC-Link IE TSN or EtherCAT
  • Power supply: 1/3-phase 200 to 240 VAC
  • Natural cooling
    • Force cooling with 200G and 300G models
  • Built-in dynamic brake
  • USB port
  • Safety sub-function (through direct connection)
  • Operating ambient temperature range: 0 to 55°C
  • Enclosure rating: IP20
  • Compatible servo motor series: HG-KNS, HG-SNS

The Mitsubishi MELSERVO-JET Series Servo Amplifier is an electric AC servo amplifier that offers efficient and accurate results at high speeds. Ethernet-based CC-Link IE TSN or EtherCAT interfaces offer flexible connection for advanced motion control applications. This product family is also compatible with CC-Link IE Field Network Basic. The MR-JET amplifiers support large capacity, high-speed communication up to 1 Gbps (100 Mbps with EtherCAT variants). Communication cycles of 125μs up to 8ms are available, with a speed frequency response of 3.2kHz. These units are easily configured via MR-Configurator2 servo software and Motorizer freeware.

The MR-JET Series supports the following servo functionality: Advanced vibration suppression control II; adaptive filter II; robust filter; quick tuning; auto tuning; one-touch tuning; tough drive function; drive recorder function; machine diagnosis function; power monitoring function; lost motion compensation function; super trace control.
