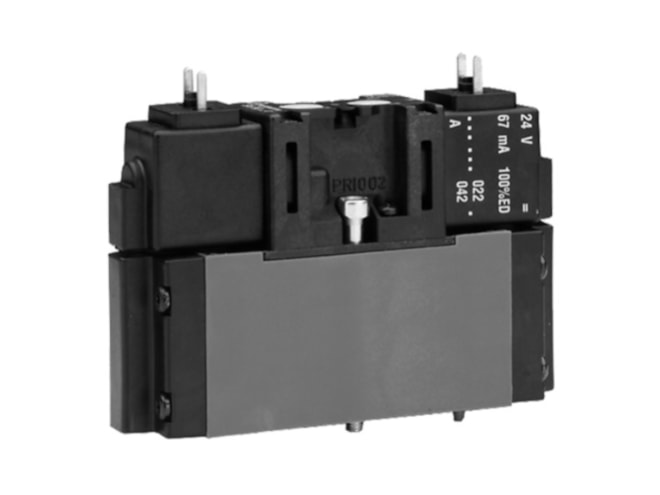

Aventics CD01-PA Series Electric and Pneumatic Actuated Directional Valve

Spool valve with electric or pneumatic actuation. Up to 1010l/min flow rate. ISO 15407-1 standard, ATEX rating available.

This model has 57 variants.
Part Number
  • CD01-PA Series
Highlights...

Features

  • Control: electric, pneumatic
  • Switching principle:
    • 2x3/2
    • 5/2, with spring return
  • Flow rate(s): up to 1010l/min
  • Max working pressure: 16bar
  • Min working pressure: -0.9bar
  • Manual override with detent available
  • Standardized valve system size: 26mm
  • Combination with CD02-AL Series possible
  • Certification: ISO 15407-1, ATEX configurations available
  • IP65 rated enclosure

The Aventics CD01-PA Series Electric and Pneumatic Actuated Directional Valve is a highly versatile ISO 15407-1 standard valve. This series offers pneumatic or electrical control, with vacuum or pressure of up to 16bar. Dual-pressure application, pressure-zones, ATEX certification, and various accessories make this line of valves highly modular.
