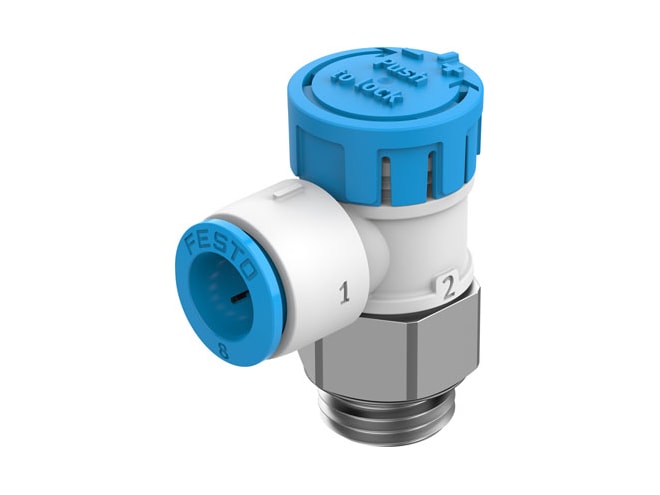

Festo VFOE-LE-T-G14-Q8 One-way Flow Control Valve

Name: Festo VFOE-LE-T-G14-Q8 One-way Flow Control Valve
Price: 16.42 USD
Availability: InStock

L-shape One-way flow control valve for exhaust air with G1/4 and 8mm push-in connector pneumatic connections. 1 per order. View other configurations.

$16.42

Part Numbers

VFOE-LE-T-G14-Q8
8068729

Highlights...

VFOE-LE-T-G14-Q8
By Festo
FREE Shipping on orders of $1,000 or more
Manufacturer has 1222 in stock.
Additional 2-3 days to process. Call for expedite options.

Overview

Features

Exhaust air one-way flow control function valve function
Manual type of actuation
Rotary knob with detent adjustment component
Screw-in type of mounting
500L2 standard nominal flow rate in flow control direction
370L2 standard nominal flow rate in blocked direction
500L2 standard nominal flow rate in blocked direction
PBT material housing
Optional mounting position
991452 symbol
16MM width across flats
360°/no continuous swivelling permissible rotatability
0.02MPA operating pressure complete temperature range
1MPA operating pressure complete temperature range
0.2BAR operating pressure complete temperature range
10BAR operating pressure complete temperature range
2.9PSI operating pressure complete temperature range
145PSI operating pressure complete temperature range
810L2 standard flow rate in flow control direction 0.6->0 mPa (6->0 bar, 87->0 psi)
750L2 standard flow rate in non-return direction 0.6->0 mPa (6->0 bar, 87->0 psi)
900L2 standard flow rate in non-return direction 0.6->0 mPa (6->0 bar, 87->0 psi)
Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
VDMA24364 zone III lABS (PWIS) conformity
Class 4 according to ISO 14644-1 cleanroom class
-10GC media temperature
60GC media temperature
12NM max. tightening torque
10NM nominal torque
± 20% tolerance for nominal tightening torque
16G product weight
RoHS-compliant note on materials
PBT material cover
HNBR material dynamic seals
Galvanised steel material threaded bolt
PBT material release ring
NBR material static seals
-10GC ambient temperature to 60GC ambient temperature
Pneumatic connection qS-8 , port 1
Pneumatic connection g1/4 , port 2
