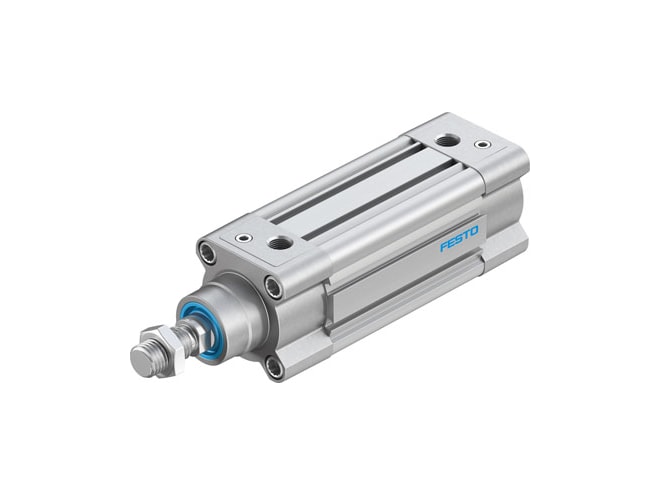

Festo DSBC-50-70-D3-PPVA-N3 ISO Cylinder

Double-acting cylinder Conforms to ISO 15552 with 50mm piston diameter, 70mm stroke, and Pneumatic cushioning (adjustable at both ends). View other configurations.

Festo DSBC-50-70-D3-PPVA-N3 ISO Cylinder

$273.70

Part Numbers

DSBC-50-70-D3-PPVA-N3
3659473

Highlights...

DSBC-50-70-D3-PPVA-N3
By Festo
FREE Shipping on orders of $1,000 or more
Usually ships in 2-3 weeks

Features

70MM stroke
50 mm piston diameter
M16x1.5 piston rod thread
Pneumatic cushioning, adjustable at both ends cushioning
Optional mounting position
ISO 15552 conforms to standard
Male thread piston-rod end
Piston design
Piston rod design
Profile barrel design
Via proximity switch position detection
991235 symbol
Piston rod at one end variants
0.04MPA operating pressure
1.2MPA operating pressure
0.4BAR operating pressure
12BAR operating pressure
Double-acting mode of operation
Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
2 - Moderate corrosion stress corrosion resistance class cRC
VDMA24364-B1/B2-L lABS (PWIS) conformity
1J impact energy in end positions
22MM cushioning length
990N theoretical force at 0.6 mPa (6 bar, 87 psi), return stroke
1178N theoretical force at 0.6 mPa (6 bar, 87 psi), advance stroke
365G moving mass for 0 mm stroke
25G additional moving mass per 10 mm stroke
1216G basic weight for 0 mm stroke
78G additional weight per 10 mm stroke
Either: type of mounting
Via female thread type of mounting
With accessories type of mounting
RoHS-compliant note on materials
Die-cast aluminium, coated material cover
TPE-U(PU) material piston seal
Wrought aluminium alloy material piston
High-alloy steel material piston rod
TPE-U(PU) material piston rod wiper
TPE-U(PU) buffer seal material
POM cushioning piston material
Smooth-anodised wrought aluminium alloy material cylinder barrel
Galvanised steel material nut
TPE-E material rod wiper
Metal polymer compound material bearing
Galvanised steel material collar screws
-20GC ambient temperature to 80GC ambient temperature
Pneumatic connection g1/4

View other configurations.

Spec Sheets

Festo DSBC-50-70-D3-PPVA-N3 ISO Cylinder Datasheet (99 KB)

Other

Festo DSBC-50-70-D3-PPVA-N3 ISO Cylinder CAD Diagram (854 KB)

Tubes

Festo PUN-H-8X1,25-BL Plastic Tubing

Festo PUN-H-8X1,25-BL Plastic Tubing

Standard tubing with 8x1.25 m O.D x wall thickness. Standard in Blue color.

Festo PUN-H-8X1,25-NT Plastic Tubing

Festo PUN-H-8X1,25-NT Plastic Tubing

Standard tubing with 8x1.25 m O.D x wall thickness. Standard in Natural color.

Festo PUN-H-8X1,25-SW Plastic Tubing

Festo PUN-H-8X1,25-SW Plastic Tubing

Standard tubing with 8x1.25 m O.D x wall thickness. Standard in Black color.

Festo PUN-H-8X1,25-TBL Plastic Tubing

Festo PUN-H-8X1,25-TBL Plastic Tubing

Standard tubing with 8x1.25 m O.D x wall thickness. Standard in Translucent blue color.

Fittings

Festo QS-G1/4-8 Push-in Fitting

Festo QS-G1/4-8 Push-in Fitting

Festo QS-G1/4-8-I Push-in Fitting

Festo QS-G1/4-8-I Push-in Fitting

Festo QSL-G1/4-8 Push-in L-fitting

Festo QSL-G1/4-8 Push-in L-fitting

Function Fittings

Festo VFOE-LE-T-G14-Q8 One-way Flow Control Valve

Festo VFOE-LE-T-G14-Q8 One-way Flow Control Valve

L-shape One-way flow control valve for exhaust air with G1/4 and 8mm push-in connector pneumatic connections. 1 per order.

Festo GRLA-1/4-QS-8-D One-way Flow Control Valve

Festo GRLA-1/4-QS-8-D One-way Flow Control Valve

Cylinder Mountings

Festo ZNCF-50 Trunnion Flange

Festo ZNCF-50 Trunnion Flange

Festo SNC-50 Swivel Flange

Festo SNC-50 Swivel Flange

Festo SNCS-50 Swivel Flange

Festo SNCS-50 Swivel Flange

Festo SNCB-50 Swivel Flange

Festo SNCB-50 Swivel Flange

Festo SNCL-50 Swivel Flange

Festo SNCL-50 Swivel Flange

Festo HNC-50 Foot Mounting

Festo HNC-50 Foot Mounting

Proximity Sensors

Festo SDBT-MSX-1L-NU-E-0.3-N-M8 Proximity Sensor

Festo SDBT-MSX-1L-NU-E-0.3-N-M8 Proximity Sensor

T series binary position sensor with 3-wire N/O contact, NPN switching output and 0.3m cable.

Festo SDBT-MSX-1L-NU-E-2.5-N-LE Proximity Sensor

Festo SDBT-MSX-1L-NU-E-2.5-N-LE Proximity Sensor

T series binary position sensor with 3-wire N/O contact, NPN switching output and 2.5m cable.

Festo SDBT-MSX-1L-PU-E-0.3-N-M8 Proximity Sensor

Festo SDBT-MSX-1L-PU-E-0.3-N-M8 Proximity Sensor

T series binary position sensor with 3-wire N/O contact, PNP switching output and 0.3m cable.

Festo SDBT-MSX-1L-PU-E-2.5-N-LE Proximity Sensor

Festo SDBT-MSX-1L-PU-E-2.5-N-LE Proximity Sensor

T series binary position sensor with 3-wire N/O contact, PNP switching output and 2.5m cable.

Festo SMT-8M-A-NS-24V-E-0,3-M8D Proximity Sensor

Festo SMT-8M-A-NS-24V-E-0,3-M8D Proximity Sensor

Festo SMT-8M-A-NS-24V-E-2,5-OE Proximity Sensor

Festo SMT-8M-A-NS-24V-E-2,5-OE Proximity Sensor

Festo SMT-8M-A-PS-24V-E-0,3-M8D Proximity Sensor

Festo SMT-8M-A-PS-24V-E-0,3-M8D Proximity Sensor

Festo SMT-8M-A-PS-24V-E-2,5-OE Proximity Sensor

Festo SMT-8M-A-PS-24V-E-2,5-OE Proximity Sensor

Piston Rod Attachments

Festo SGS-M16X1,5 Rod Eye

Festo SGS-M16X1,5 Rod Eye

Festo SG-M16X1,5 Rod Clevis

Festo SG-M16X1,5 Rod Clevis

Festo FK-M16X1,5 Self-aligning Rod Coupler

Festo FK-M16X1,5 Self-aligning Rod Coupler
