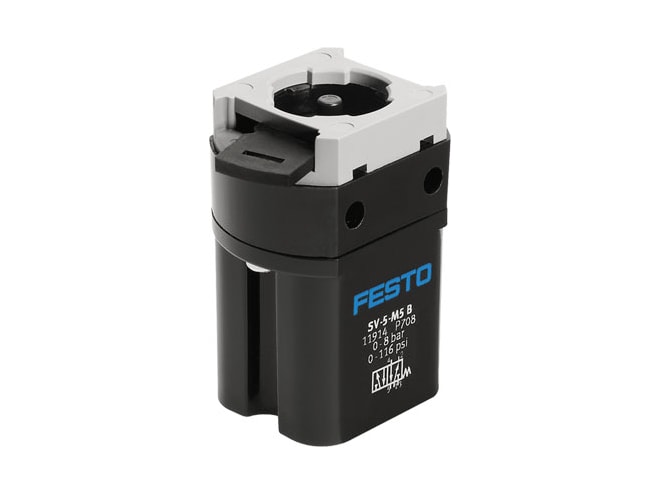

Festo SV-5-M5-B Front Panel Valve

Front Panel valve with M5 connection and 5/2, monostable valve function. View other configurations.

$124.22
Part Numbers
  • SV-5-M5-B
  • 11914
Highlights...

Features

  • 5/2-way, monostable valve function
  • Manual type of actuation
  • 95L2 standard nominal flow rate
  • 0MPA operating pressure
  • 0.8MPA operating pressure
  • 0BAR operating pressure
  • 8BAR operating pressure
  • Poppet valve with spring return design
  • Mechanical spring type of reset
  • 2.3MM nominal size
  • Soft sealing principle
  • Optional mounting position
  • Direct type of piloting
  • 991339 symbol
  • Overlap lap
  • Compressed air to ISO 8573-1:2010 [-:-:-] operating medium
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 17N actuating force
  • 53G product weight
  • Front panel mounting type of mounting
  • With through-hole type of mounting
  • NBR material seals
  • Polymer material housing
  • Brass material housing
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection m5 , port 1
View other configurations.
