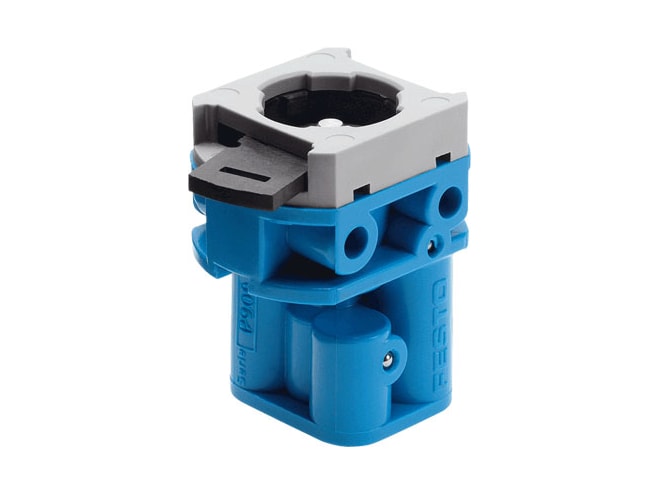

Festo SV-3-M5 Front Panel Valve

Front Panel valve with M5 connection and 3/2, usually closed, monostable valve function. View other configurations.

$85.66
Part Numbers
  • SV-3-M5
  • 6817
Highlights...

Features

  • 3/2-way, closed, monostable valve function
  • Manual type of actuation
  • 65L2 standard nominal flow rate
  • -0.095MPA operating pressure
  • 0.8MPA operating pressure
  • -0.95BAR operating pressure
  • 8BAR operating pressure
  • Poppet valve with spring return design
  • Mechanical spring type of reset
  • 2MM nominal size
  • Soft sealing principle
  • Optional mounting position
  • Direct type of piloting
  • Non-reversible flow direction
  • 991292 symbol
  • Overlap lap
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 12N actuating force
  • 40G product weight
  • Front panel mounting type of mounting
  • With through-hole type of mounting
  • NBR material seals
  • Polymer material housing
  • Brass material housing
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection m5 , port 1
