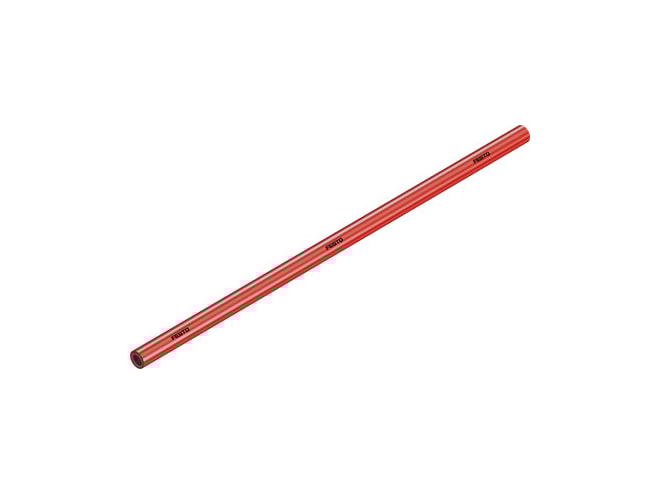

Festo PAN-V0-8X1-RT Plastic Tubing

Features

• 10MM outside diameter
• 8MM outside diameter for push-in fitting
• 45MM flow-relevant bending radius
• 6MM inside diameter
• 24MM min. bending radius
• Suitable for energy chains tubing characteristics
• -0.095MPA operating pressure complete temperature range
• 0.3MPA operating pressure complete temperature range
• -0.95BAR operating pressure complete temperature range
• 3BAR operating pressure complete temperature range
• -13.775PSI operating pressure complete temperature range
• 43.5PSI operating pressure complete temperature range
• -0.095MPA temperature-dependent operating pressure
• 1.2MPA temperature-dependent operating pressure
• -0.95BAR temperature-dependent operating pressure
• 12BAR temperature-dependent operating pressure
• -13.775PSI temperature-dependent operating pressure
• 174PSI temperature-dependent operating pressure
• Mineral oil: max. 0.3 MPa at max. 90 °C note on operating pressure
• Water: max. 0.3 MPa at max. 90 °C note on operating pressure
• Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
• Mineral oil operating medium
• Water (liquid, ice-free) operating medium
• UL94 V-0 (casing) fire test material
• VDMA24364-B2-L lABS (PWIS) conformity
• 0.065K/M product weight according to length
• Red colour
• A 72 +/-4 shore hardness
• D 57 +/-3 shore hardness
• RoHS-compliant note on materials
• PA12-P material tubing
• PVC-P material tubing
• -30GC ambient temperature to 90GC ambient temperature
• Pneumatic connection for push-in connector O.D. 8 mm
