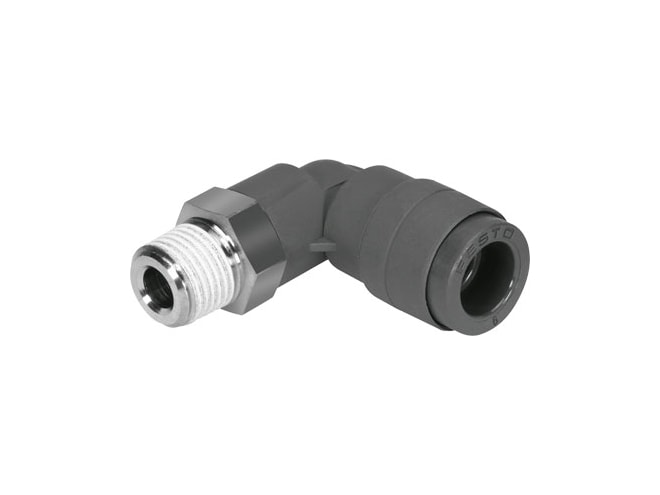

Festo QSL-V0-1/8-8 Push-in L-fitting

Features

• Standard size
• 6MM nominal size
• UL94 V-0 (housing) fire test material
• UL94 V-0 (releasing ring) fire test material
• Coating type of seal on screwed plug
• L-shape design
• 10 size of pack
• Push-pull principle design
• -0.095MPA operating pressure complete temperature range
• 1MPA operating pressure complete temperature range
• -0.95BAR operating pressure complete temperature range
• 10BAR operating pressure complete temperature range
• -13.775PSI operating pressure complete temperature range
• 145PSI operating pressure complete temperature range
• Water: max. 0.6 MPa at max. 50°C note on operating pressure
• Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
• Water (liquid, ice-free) operating medium
• Lubricated operation possible note on operating and pilot medium
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• 7NM nominal torque
• ± 20% tolerance for nominal tightening torque
• 15G product weight
• External hexagon, size 12 mm type of mounting
• Black colour of release ring
• Nickel-plated brass material screwed plug
• RoHS-compliant note on materials
• PBT material housing
• PBT material release ring
• NBR material tubing seal
• High-alloy stainless steel material tubing clamp component
• Brass material tubing clamp component
• 0GC ambient temperature to 60GC ambient temperature
• Pneumatic connection male thread R1/8 , port 1
• Pneumatic connection for tubing outside diameter of 8 mm , port 2
