Festo Custom Gantry and Cartesian Robot System

Name: Festo Custom Gantry and Cartesian Robot System
Brand: Festo
Availability: BackOrder

Explore single-axis, linear, planar, and 3D gantry concepts. Configure the shape of your application and our team will size and quote the right Festo system.

Images may not represent all possible configurations of this product.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.

Request pricing below.

Configured Part No. {{ calcPartNumber }}

Alternate Part Nos. {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Highlights...

By Festo
FREE Shipping on orders of $2,000 or more
Call for availability

Features

Ready-to-install handling systems: assembled, tested, and delivered with energy chain, connection technology, and matching drive package
1D, 2D, and 3D Cartesian configurations
Standard, high-speed, and compact system styles
Electric, pneumatic, or mixed drive technology
Matching grippers, vacuum, frames, control cabinets, and vision
Commissioning, startup, and operator training available

System Styles at a Glance

System Style	Motion	Best For	Festo Platform
Single-Axis System	1D	Long straight-line strokes and large loads	YXCS
Standard Linear Gantry	2D vertical	Long horizontal travel with a vertical lift	YXCL
High-Speed Linear Gantry	2D vertical	Fast pick rates where space is limited	EXCT (YXML)
Standard Planar Surface Gantry	2D horizontal	Heavy workpieces and long strokes across a surface	YXCF
High-Speed Planar Surface Gantry	2D horizontal	Very fast, flat moves with a low moving mass	EXCH
Compact Planar Surface Gantry	2D horizontal	Flattest design with maximum working space coverage	EXCM

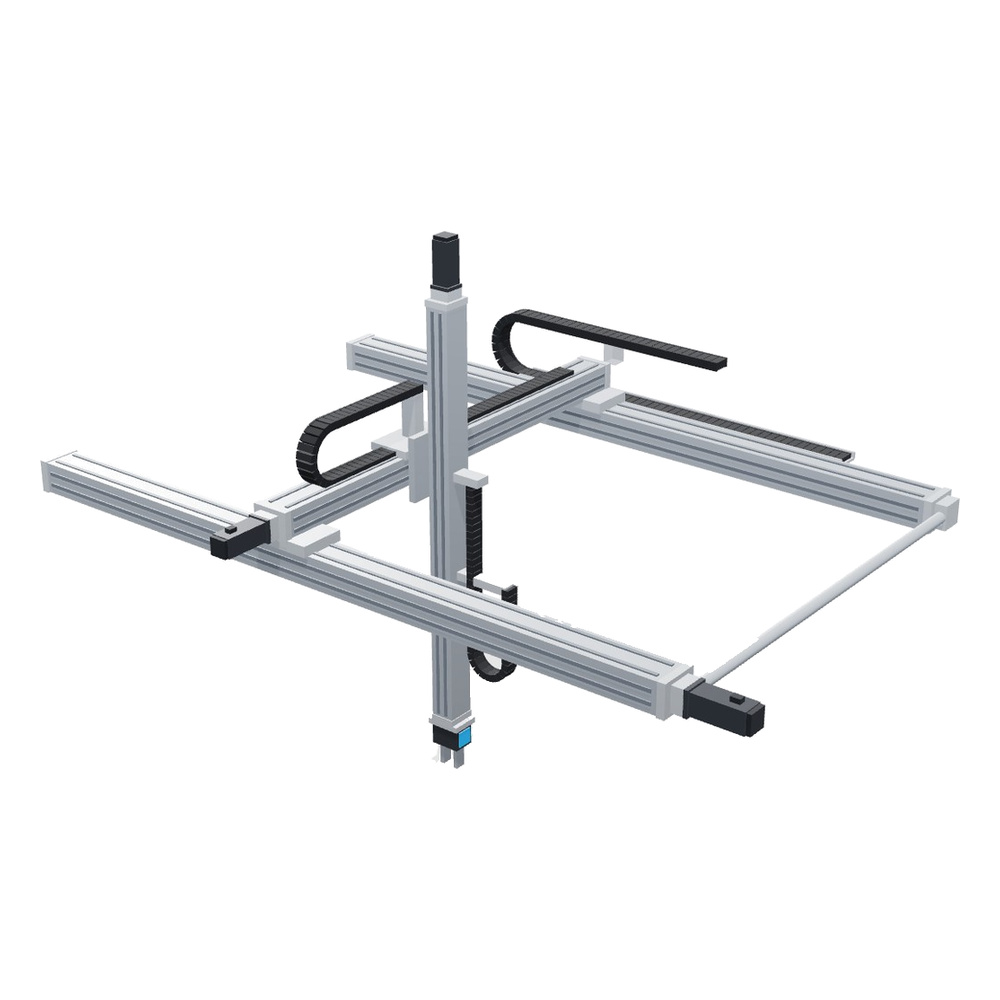

Standard 3D Gantry	3D	Long strokes and heavy loads in all directions	YXCR
High-Speed 3D Gantry	3D	Highest dynamics in a compact, flat package	EXCH-based
Compact 3D Gantry	3D	High payloads in the smallest working space	Compact planar with EGSC / DGSL mini slide

What Happens After You Request Pricing

1. Request pricing

Your configured part number and selections come straight to the Motion World team.

2. We size it

An automation specialist reviews your application, asks any follow-up questions, and sizes the system with Festo's engineering tools.

3. You get a concept and quote

We send back a recommended Festo system, a quote, and a CAD concept if you asked for one.

Every gantry is built around the application, so there is no single part number to buy off the shelf. This configurator lets you explore the possibilities first: choose how the part needs to move, how big and heavy it is, how fast the system has to run, and what should be included. Your configured part number captures those choices so our team can start with a clear picture of what you need.

Festo handling systems combine electric and pneumatic axis modules into single-axis systems, linear gantries, planar surface gantries, and three-dimensional gantries. Standard styles are built for long strokes and heavy loads, high-speed styles use fixed motors and a low moving mass for fast cycles, and compact styles save height and footprint for machine integration.

Not sure where to start? Pick “Not Sure – Help Me Choose” and describe your application when you request pricing. We'll recommend the right style.
