SICK sensingCam SEC200 Series Image-Based Code Reader

Name: SICK sensingCam SEC200 Series Image-Based Code Reader
Brand: SICK
Price: 715.0 USD
Availability: BackOrder

1D, 2D code identification, with up to 300 mm reading distance. Integrated web server, with USB, Ethernet and REST API interfaces.

Introducing the sensingCam SEC200

sensingCam SEC200: Simple Code Reading for Production & Logistics

Effective August 21st, 2026 SICK has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.

Highlights...

By SICK
FREE Shipping on orders of $2,000 or more
Call for availability

Features

Sensor: CMOS monochrome
Code structures: 1D codes, 2D codes
Bar code type: Code 39, Code 128, Code 93, UPC / EAN / JAN (with addition), Code 25, Codabar, postal codes
2D code type: QR code, Data Matrix
Reading distance: 100 to 300 mm
Optical focus: fixed
Resolution: 1080 x 1280 px (1.3 MP)
Field of view: 36° x 31°
Scan/frame rate: ≤ 60 fps
Image format: JPEG
Illumination: white
Communication interface(s):
- USB
- Ethernet, REST API
Operating temperature: 0 to 50°C
Relative humidity: ≤ 90 %
Supply voltage: 5 V
Dimensions: 56 mm x 56 mm x 30.5 mm
Housing material: aluminum, plastic
Window material: glass
Protection rating: IP65
Mounting:
- 6x threads for M4 screws
- 1x ¼ in - 20 UNC thread for photo tripod

The SICK sensingCam SEC200 Series Image-Based Code Reader is an economic solution for 1D and 2D code identification applications including packing and assembly step stations. The devices are built for reliable operation in demanding industrial environments, with dust ingress and vibration protection up to IP65.

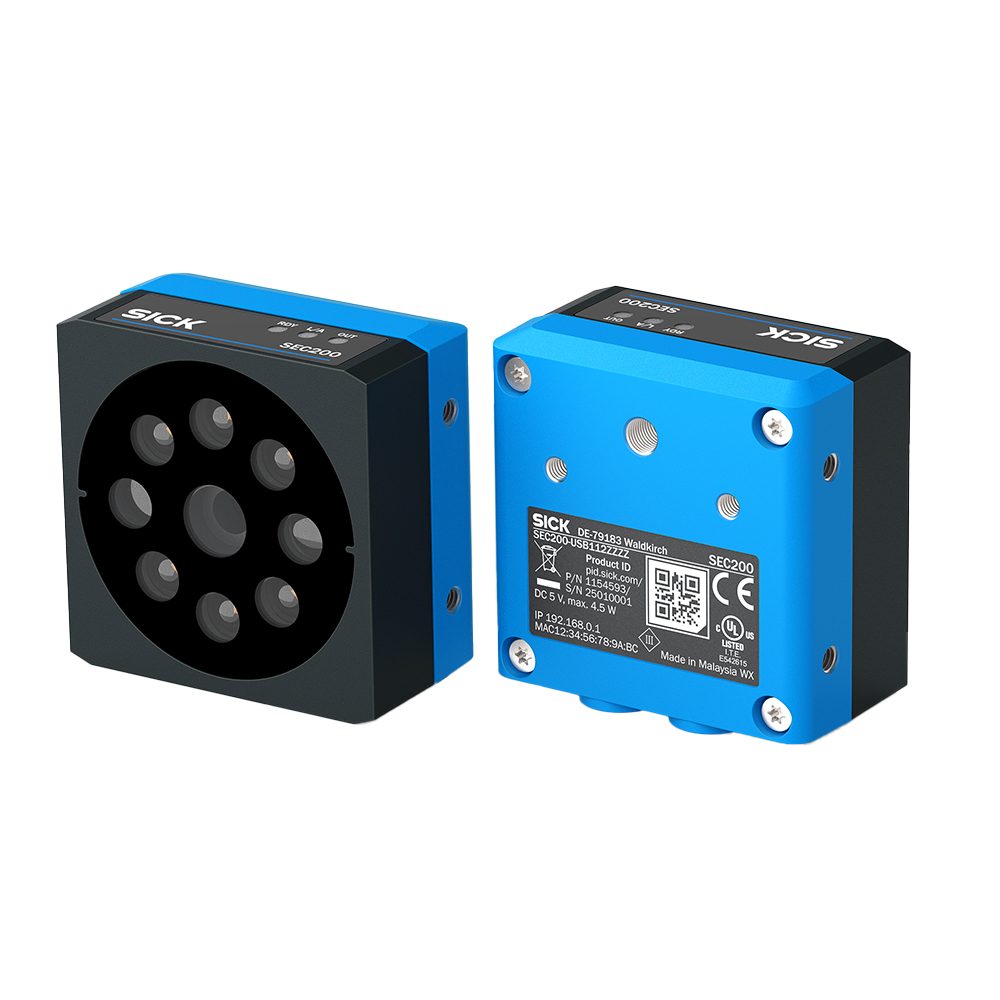

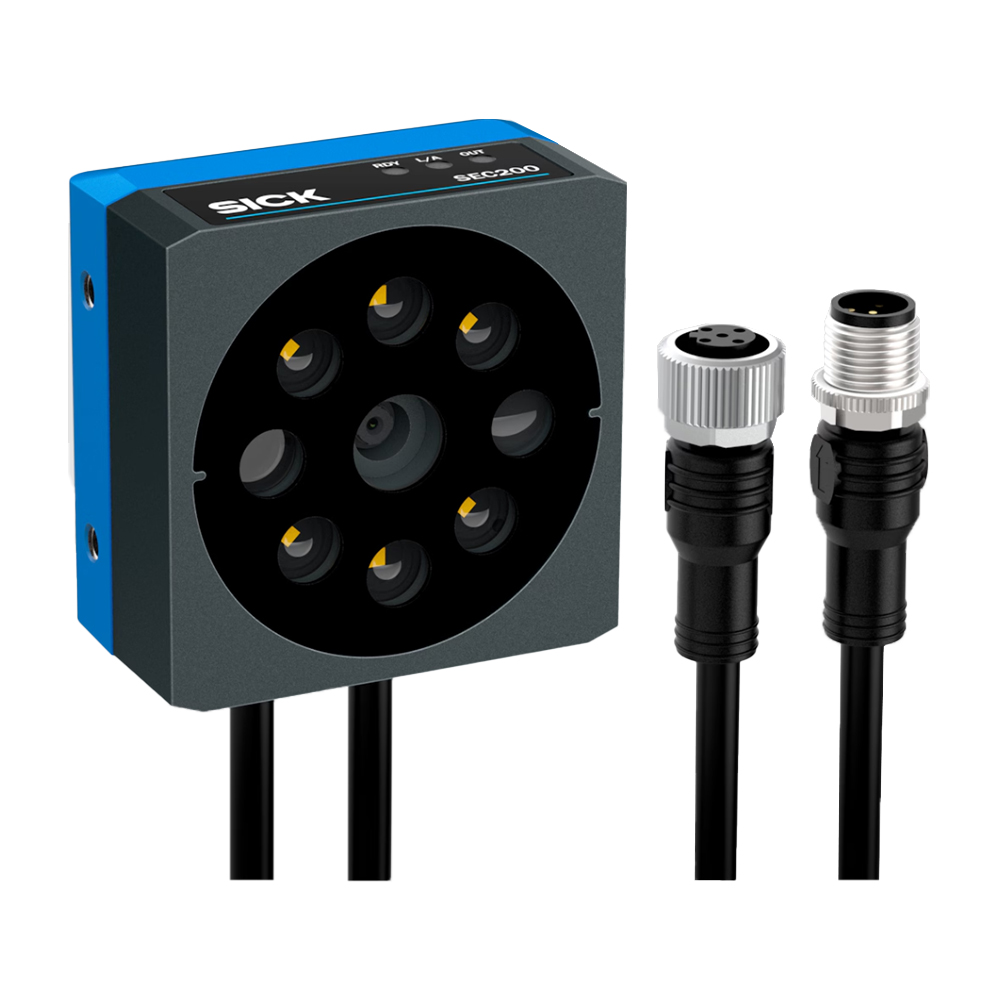

The SEC200 Series consists of two main variants, the first of which is differentiated by a USB interface, with Type-C socket and 5 V supply voltage requirement. The second features an Ethernet interface, with 100 Mbit/s, 100Base-TX transmission, an M12, 4-pin, D-coded connector and 12 to 24 VDC supply voltage requirement. The Ethernet enabled model also features a REST API interface for configuration. Each unit includes an integrated web server.

Paired with an easy mounting process this ensures installation, setup, and adjustment of the SEC200 camera is quick and easy without the need for additional software. Acoustic and visual feedback support the intuitive operating design, automatically detecting and reading codes as items are presented in front of the device, no manual triggering required.
