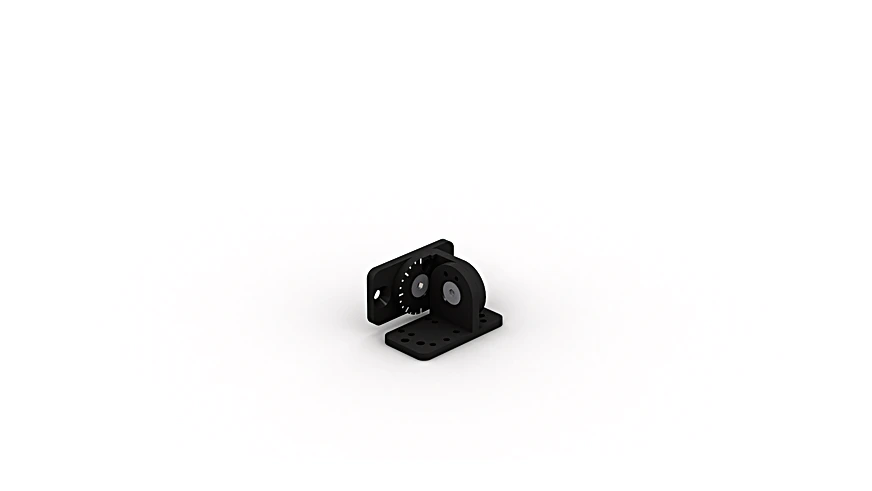

Wenglor ZVZZ001 Mounting for camera or code scanner

Mounting for camera or code scanner.

$121.00
Part Number
  • ZVZZ001
Highlights...

Features

  • Simple installation
  • Flexible alignment options
  • Mounting on aluminum profiles
  • Mounting type, device-side: Screwable with slot nut
  • Mounting type, system-side: Aluminum profile
  • Material: Aluminum, anodised
  • Weight: 88 g
  • Scope of delivery: 1 × mounting system, 2 × screws M5×14, 2 × screws M4×8, 1 × screw M3×6, 1 × setscrew M3×4, 1× locking pin 3×8
  • Packaging unit: 1 Piece

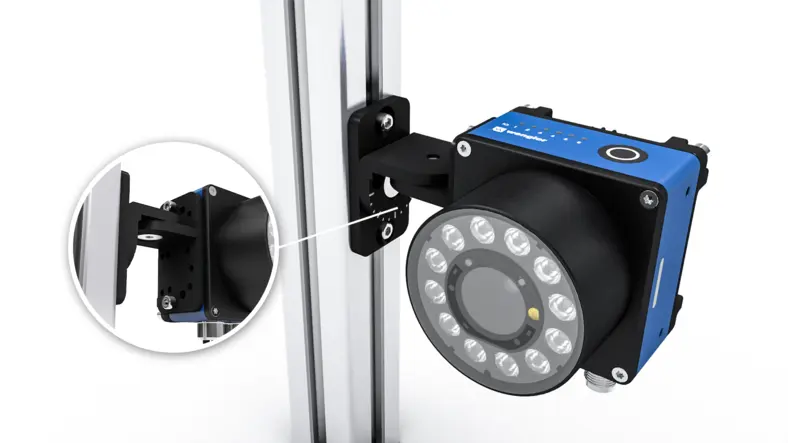

This mounting enables the correct mounting of an imaging sensor (camera or code scanner) on aluminum profiles. The system can be rotated 180° on the vertical plane and 360° on the horizontal plane.
