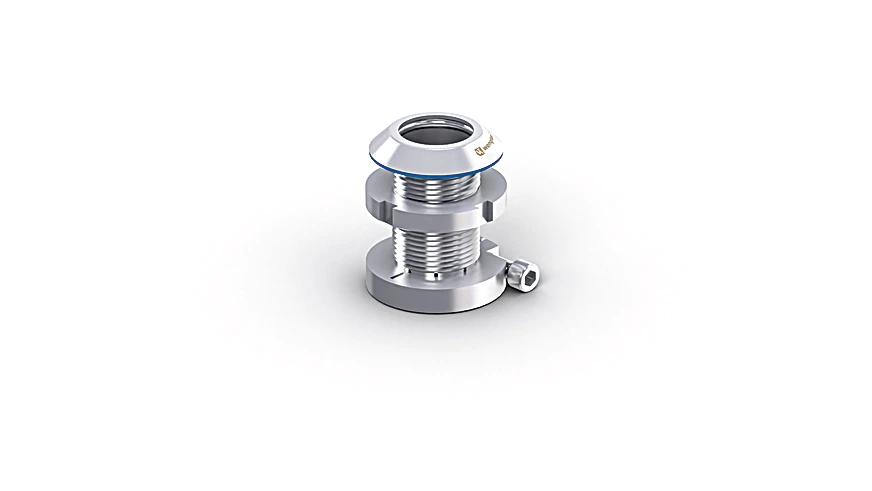

Wenglor ZMKII0001 Mounting Console for Ø 20 mm

Mounting Console for Ø 20 mm.

$84.30
Part Number
  • ZMKII0001
Highlights...

Features

  • Hygienic design makes it easy to clean
  • Resistant to cleaning agents
  • Made with food safe materials that are FDA approved
  • Mounting type, device-side: Terminals, screws
  • Mounting type, system-side: Mounting in through-hole
  • Material: Stainless steel, V4A (1.4404/1.4435/316L) / Fluororubber, FKM / Silicone (FDA) / Stainless steel, V2A (1.4305/303)
  • Degree of Protection: IP68 / IP69K
  • Weight: 123 g
  • Scope of delivery: 1 × mounting console
  • Packaging unit: 1 Piece
  • Use: for round housing, For mounting tube
  • Hygienic Design: X
  • Detergent resistant: X

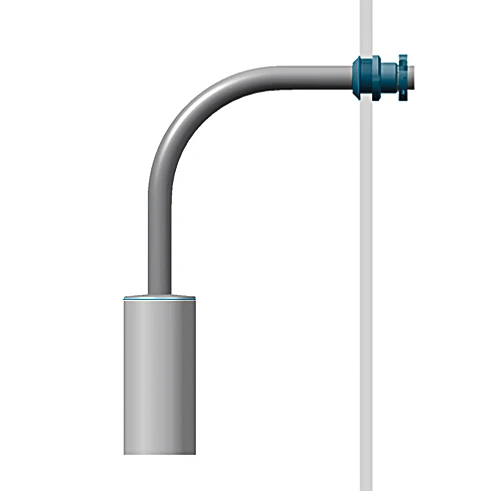

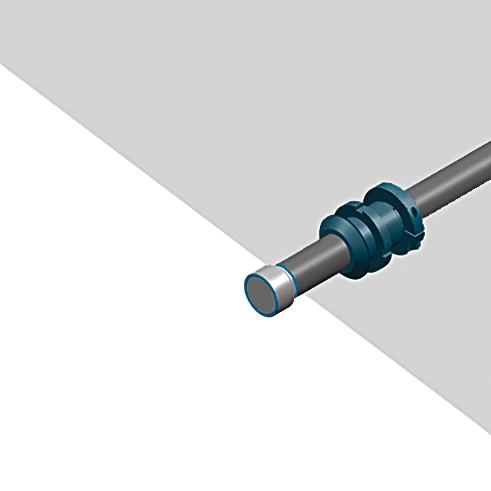

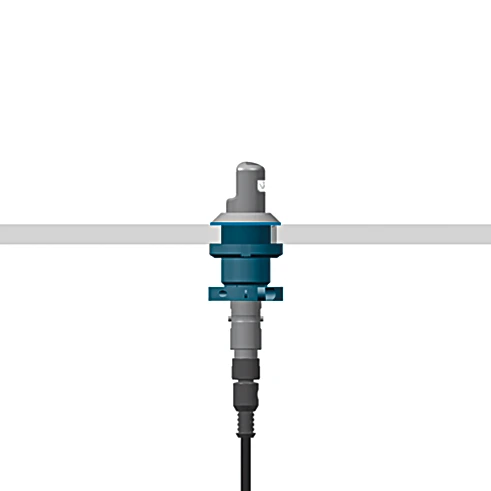

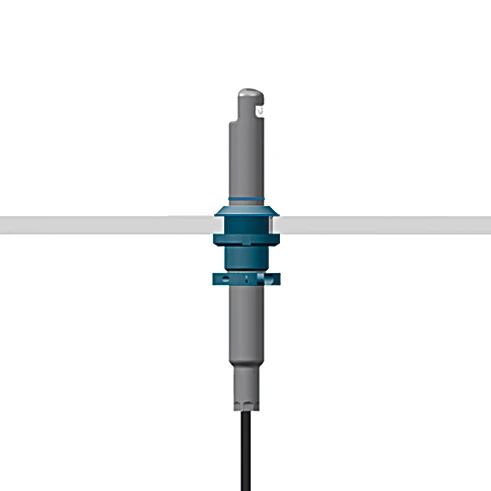

This complete system, which integrates seamlessly into the machine, includes numerous other components as well as the mounting console. The hygiene sensors and mounting tubes can be fed through the system's side panel with the aid of the mounting console and fastened there without any gaps.
