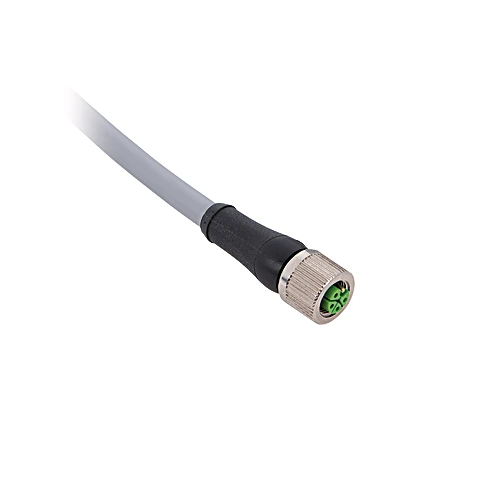

Wenglor ZDHL001 Connection Line M12 × 1; 5-pin, L-coding

Features

• PUR, straight
• Halogen free
• Rated current: 16 A
• Connection 1: Socket, straight

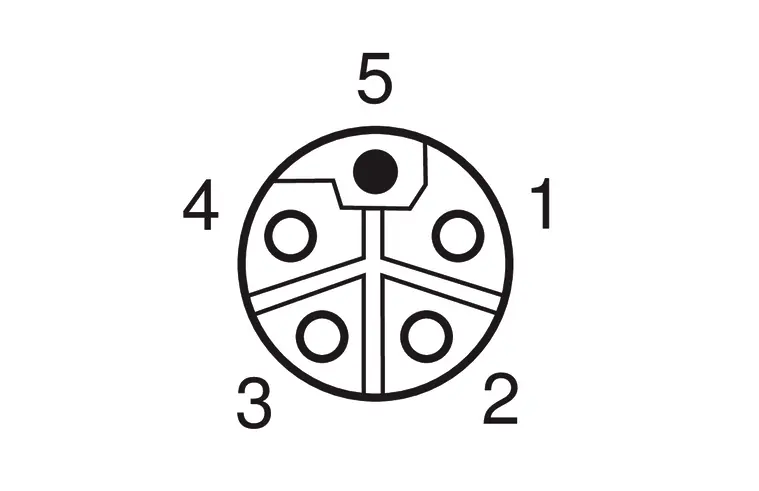

• Connection mode 1: M12 × 1, 5-pin, L-cod.
• Connection 2: stripped
• Torque: M12: 0,6 Nm
• Coding: L-coding

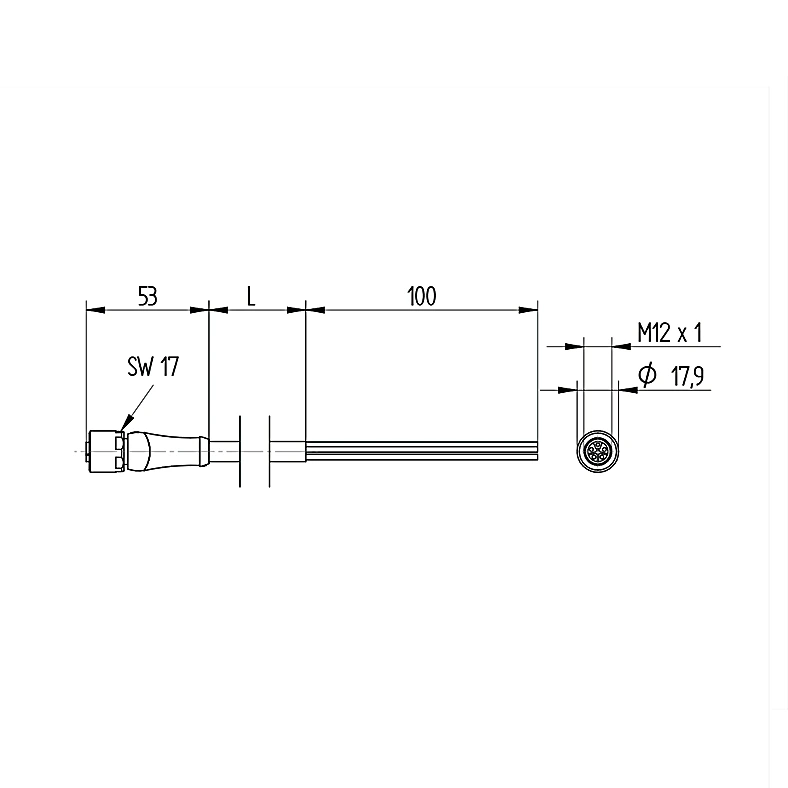

• Cable length (L): 10 m
• Outer diameter (d): 8.2 mm
• Wire cross-section: 1.5 mm²
• Degree of Protection: IP69K
• Temperature range (fixed installation): -58°F to 176°F
• Temperature range (moving application): -13°F to 176°F
• Cable Jacket Material: Plastic, PUR
• Material Wire Insulation: Plastic, PP
• Material Sleeve Nut: Brass, nickel-plated
• Halogen-free: yes
• Drag Chain Suitable: yes
• Bending radius (fixed installation): > 7,5 × d
• Bending radius (used in motion): > 10 × d
• Travel speed (with 5 m horizontal travel distance): ≤ 3,3 m/s
• Acceleration: 5 m/s²
• Bending cycles: ≤ 5000000
• Number of torsion cycles: 5,000,000
• Torsional stress: ± 180°/m
• Torsional speed (cycles/min): 35
• Weight: 1,350 g
• Scope of delivery: 1 × connection line
• Packaging unit: 1 Piece
