Wenglor ZDGL003 Connection Line M12 × 1; 4-pin

Connection Line M12 × 1; 4-pin.

$148.00
Part Number
  • ZDGL003
Highlights...

Features

  • Straight
  • Supply Voltage: 30 V DC

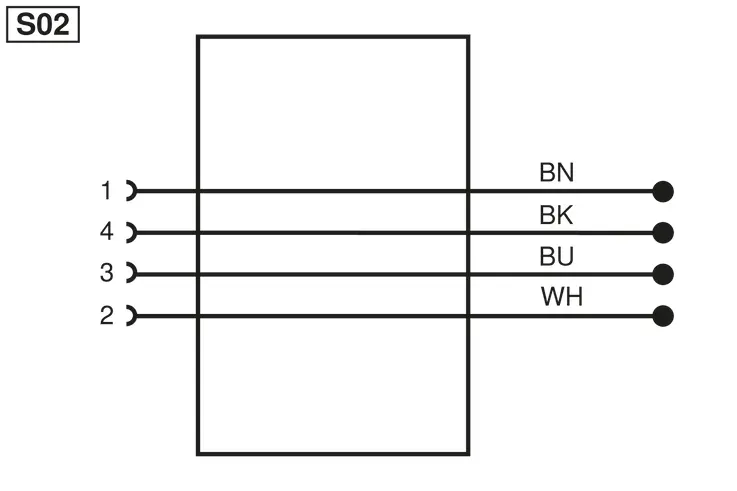

  • Connection 1: Socket, straight

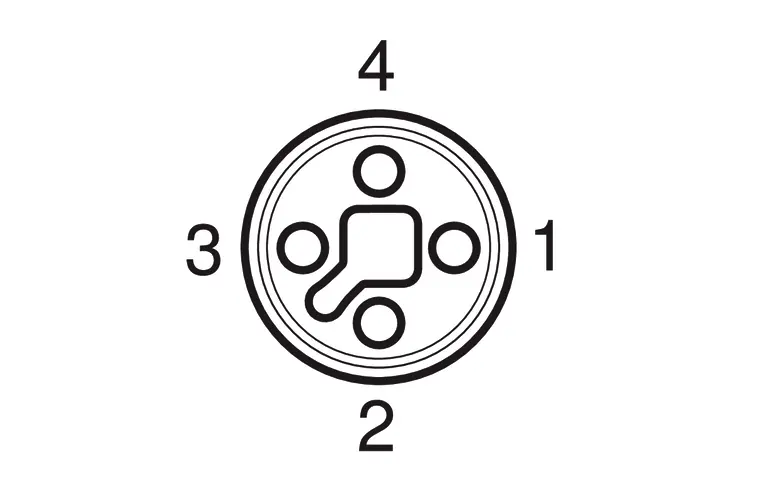

  • Connection mode 1: M12 × 1, 4-pin
  • Connection 2: stripped
  • Torque: M12: 0,6 Nm
  • Coding: T-coding
  • Cable length (L): 10 m
  • Outer diameter (d): 8.4 mm
  • Wire cross-section: 1.5 mm²
  • Degree of Protection: IP65, IP67
  • Temperature range (fixed installation): -13°F to 158°F
  • Temperature range (moving application): -22°F to 176°F
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: PVC
  • Material Sleeve Nut: Brass, nickel-plated
  • Halogen-free: yes
  • Drag Chain Suitable: yes
  • Flame retardant: yes
  • Bending radius (fixed installation): 5 × d
  • Bending radius (used in motion): 10 × d
  • Travel speed (with 5 m horizontal travel distance): 3 m/s
  • Acceleration: 5 m/s²
  • Weight: 1,100 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
