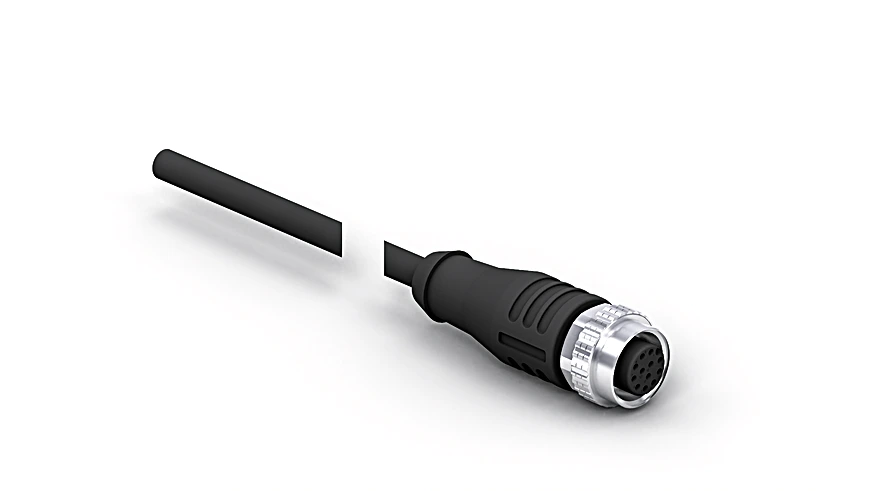

Wenglor ZDCL010 Connection Line M12 × 1; 12-pin

Connection Line M12 × 1; 12-pin.

$294.00
Part Number
  • ZDCL010
Highlights...

Features

  • Screened
  • PUR, straight
  • Drag chain suitable
  • Suitable for robots
  • Supply Voltage: ≤ 30 V DC
  • Connection 1: Socket, straight

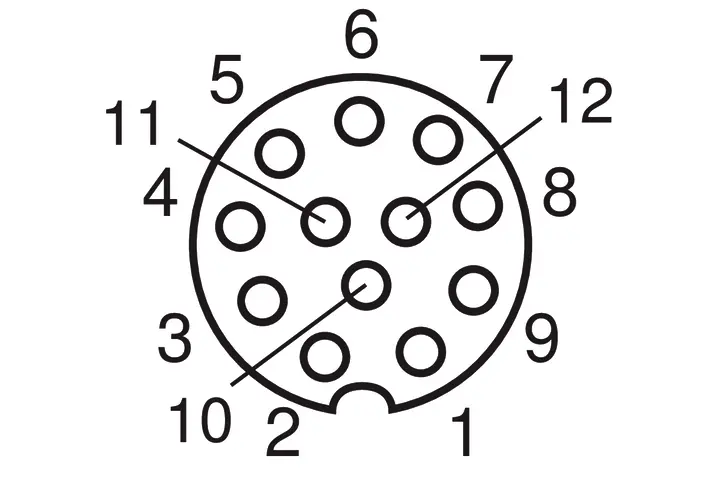

  • Connection mode 1: M12 × 1, 12-pin
  • Connection 2: stripped
  • Coding: A-coding
  • Cable length (L): 30 m
  • Outer diameter (d): 6 mm
  • Wire cross-section: 0.14 mm²
  • Degree of Protection: IP65, IP67, IP69K
  • Temperature range (fixed installation): -22°F to 194°F
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: Plastic, PP
  • Material Sleeve Nut: Brass, nickel-plated
  • Equipment: Shielded
  • Halogen-free: yes
  • Drag Chain Suitable: yes
  • Bending radius (fixed installation): 5 × d
  • Bending radius (used in motion): 12 × d
  • Bending cycles: ≥ 2000000
  • Number of torsion cycles: ≥ 500,000
  • Torsional stress: ± 180°/m
  • Weight: 1,555 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
