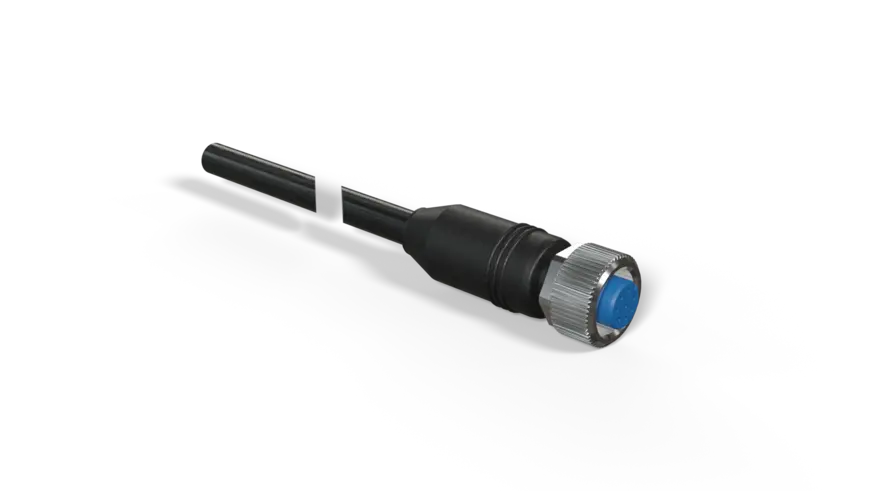

Wenglor ZDCL007 Connection Line M12 × 1; 12-pin

Connection Line M12 × 1; 12-pin.

$294.00
Part Number
  • ZDCL007
Highlights...

Features

  • Screened
  • Drag chain suitable
  • PUR, straight
  • Suitable for robots
  • Supply Voltage: ≤ 30 V DC
  • Connection 1: Socket, straight

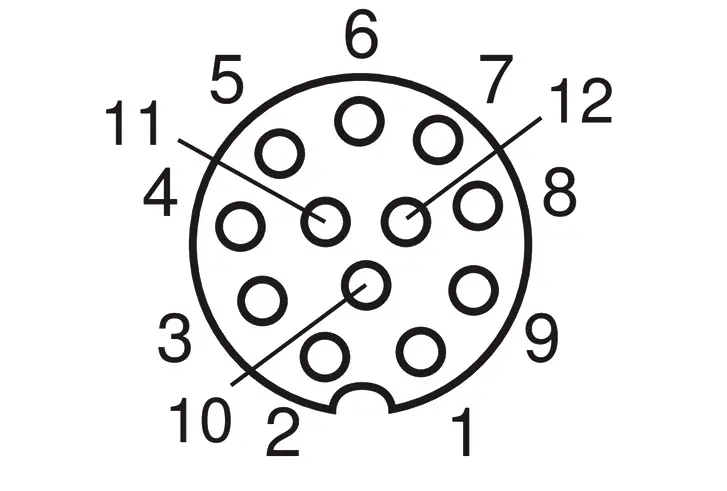

  • Connection mode 1: M12 × 1, 12-pin
  • Connection 2: stripped
  • Torque: M12: 0,6 Nm
  • Coding: A-coding
  • Cable length (L): 30 m
  • Outer diameter (d): 6.5 mm
  • Wire cross-section: 0.14 mm²
  • Degree of Protection: IP67
  • Temperature range (fixed installation): -40°F to 185°F
  • Temperature range (moving application): -13°F to 185°F
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: Plastic, TPE
  • Material Sleeve Nut: Brass, nickel-plated
  • Equipment: Shielded
  • Halogen-free: yes
  • Drag Chain Suitable: yes
  • Bending radius (fixed installation): 5 × d
  • Bending radius (used in motion): 10 × d
  • Travel speed (with 5 m horizontal travel distance): ≤ 3,3 m/s
  • Acceleration: ≤ 5 m/s²
  • Bending cycles: 5000000
  • Number of torsion cycles: 2,000,000
  • Torsional stress: ± 30°/m
  • Torsional speed (cycles/min): 35
  • Weight: 1,560 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
