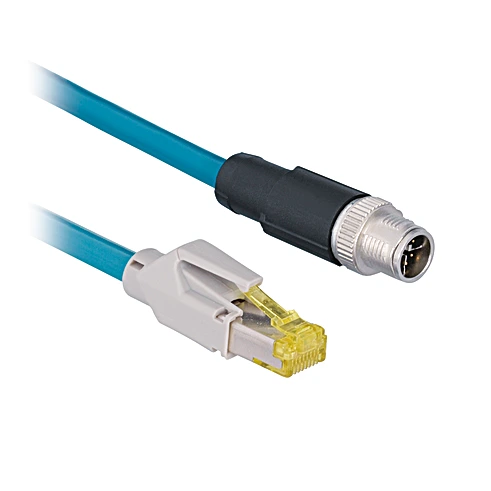

Wenglor ZC1V026 Connection Cable M12 × 1; 8-pin, X-coding - RJ45; 8-pin

Features

• Screened
• Drag chain suitable
• Suitable for robots
• PUR, straight
• Supply Voltage: ≤ 60 V DC
• Connection 1: Plug, straight

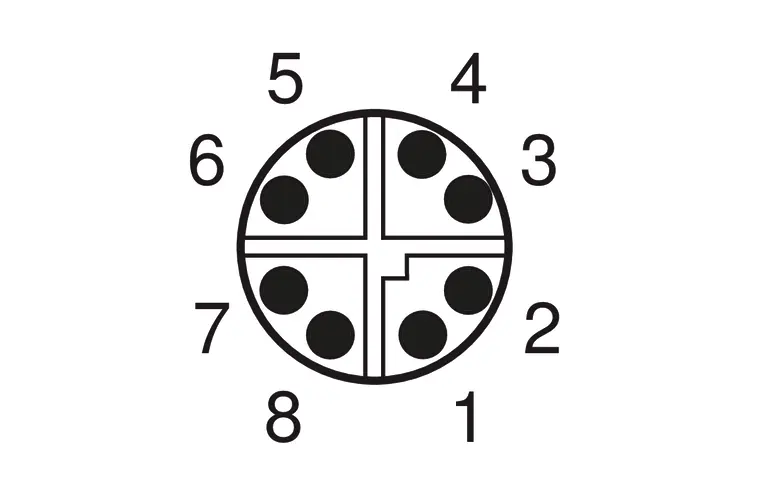

• Connection mode 1: M12 × 1, 8-pin, X-cod.
• Connection 2: Plug, straight

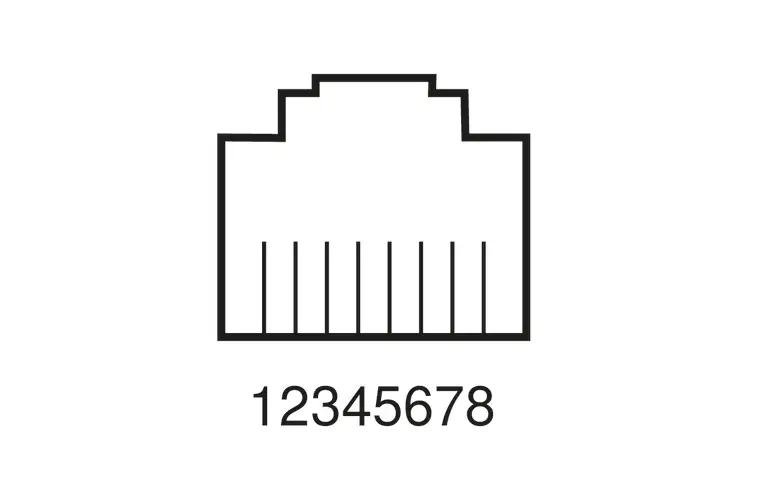

• Connection mode 2: RJ45, 8-pin
• Coding: X-coding

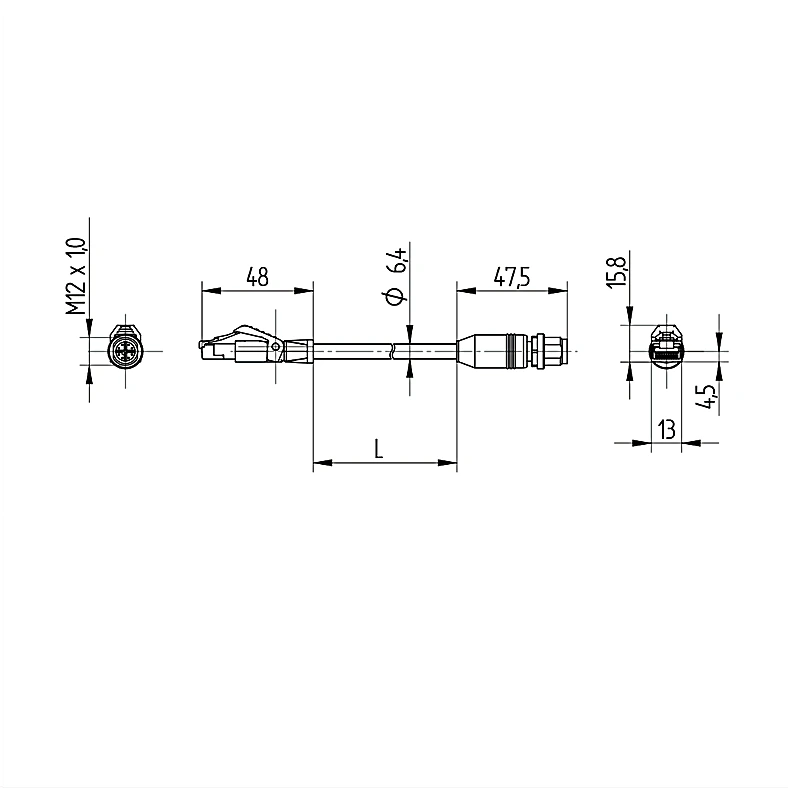

• Cable length (L): 15 m
• Outer diameter (d): 7.4 mm
• Wire cross-section: 0.14 mm²
• Degree of Protection: IP67
• Temperature range (fixed installation): -40°F to 176°F
• Temperature range (moving application): -4°F to 176°F
• Cable Jacket Material: Plastic, TPE
• Material Wire Insulation: Plastic, HDPE
• Material Sleeve Nut: Zinc diecasting, nickel-plated
• Category: Cat 6 EA
• Equipment: Shielded
• Drag Chain Suitable: yes
• Flame retardant: yes
• Bending radius (fixed installation): 4 × d
• Bending radius (used in motion): 4 × d
• Travel speed (with 5 m horizontal travel distance): ≤ 1,2 m/s
• Acceleration: ≤ 2,4 m/s²
• Bending cycles: ≤ 10 Mio. (77°F)
• Number of torsion cycles: ≤ 3 Mio. (77°F)
• Torsional stress: ± 270°/m
• Torsional speed (cycles/min): 60
• Weight: 869 g
• Scope of delivery: 1 × line
• Packaging unit: 1 Piece
