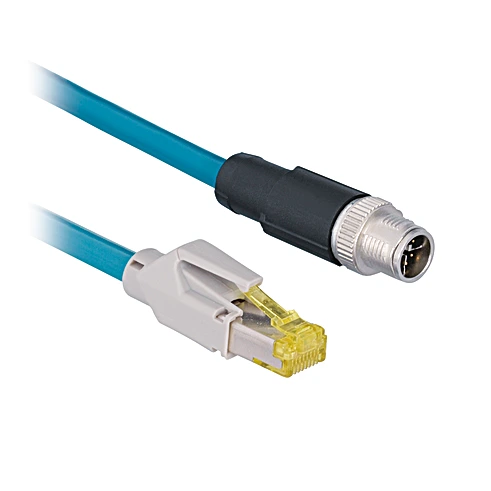

Wenglor ZC1V003 Connection Cable M12 × 1; 8-pin, X-coding - RJ45; 8-pin

Features

• PUR, straight
• Screened
• Drag chain suitable
• Supply Voltage: ≤ 48 V AC/DC
• Connection 1: Plug, straight

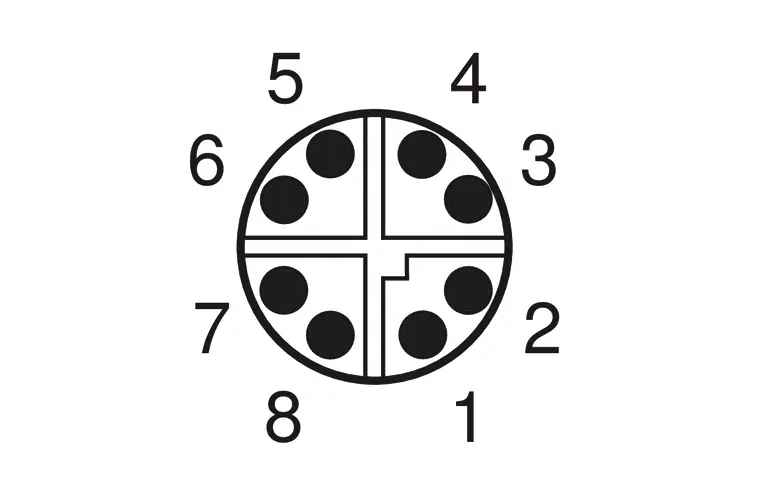

• Connection mode 1: M12 × 1, 8-pin, X-cod.
• Connection 2: Plug, straight

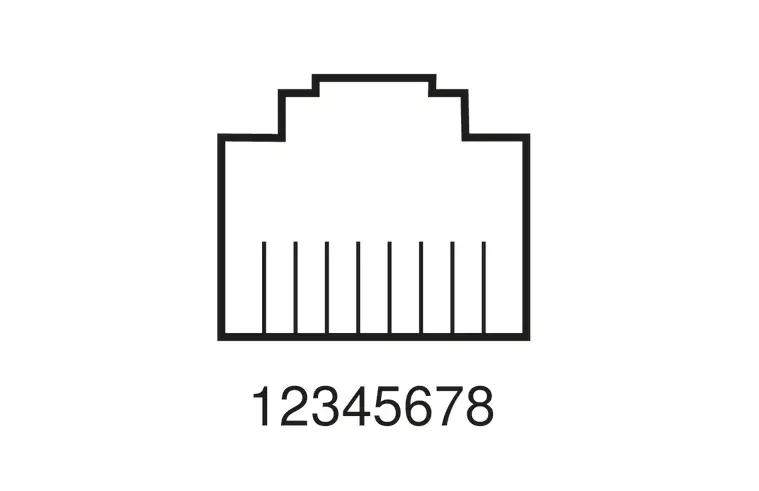

• Connection mode 2: RJ45, 8-pin
• Torque: M12: 0,4 Nm
• Coding: X-coding
• Cable length (L): 5 m
• Outer diameter (d): 6.9 mm
• Wire cross-section: 0.14 mm²
• Degree of Protection: IP67
• Temperature range (fixed installation): -4°F to 176°F
• Temperature range (moving application): -4°F to 122°F
• Cable Jacket Material: Plastic, PUR
• Material Wire Insulation: Plastic, PP
• Material Sleeve Nut: Zinc diecasting, nickel-plated
• Category: CAT 5E
• Equipment: Shielded
• Halogen-free: yes
• Drag Chain Suitable: yes
• Bending radius (fixed installation): 4 × d
• Bending radius (used in motion): 8 × d
• Travel speed (with 5 m horizontal travel distance): 3 m/s
• Acceleration: 5 m/s²
• Bending cycles: 5000000
• Weight: 310 g
• Scope of delivery: 1 × line
• Packaging unit: 1 Piece
