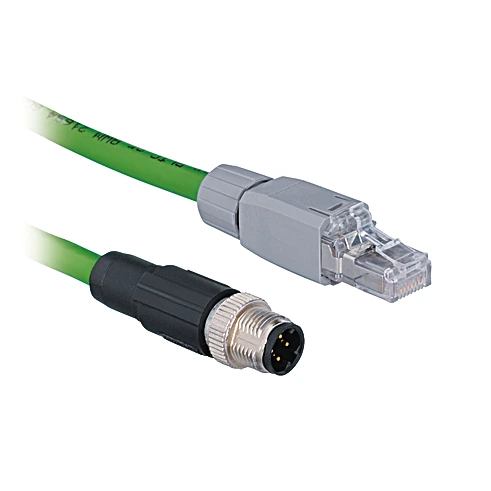

Wenglor ZAV51R602 Connection Cable M12 × 1; 4-pin, D-coding - RJ45; 4-pin

Connection Cable M12 × 1; 4-pin, D-coding - RJ45; 4-pin.

$171.00
Part Number
  • ZAV51R602
Highlights...

Features

  • Drag chain suitable
  • Screened
  • PUR, straight
  • Connection 1: Plug, straight

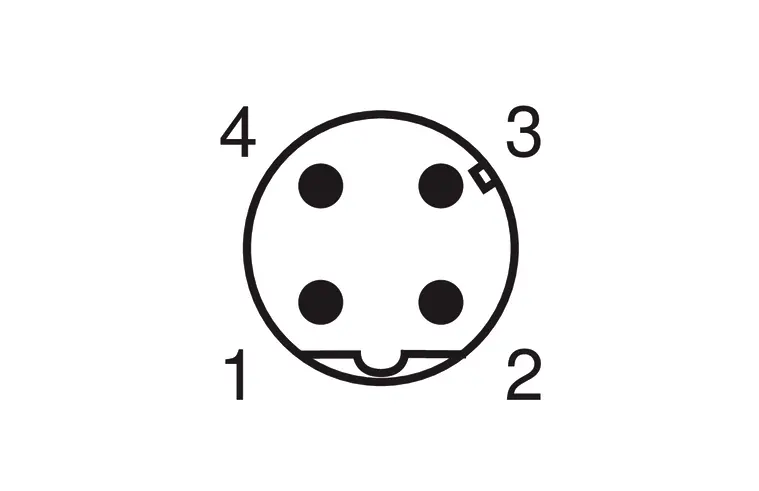

  • Connection mode 1: M12 × 1, 4-pin, D-cod.
  • Connection 2: Plug, straight

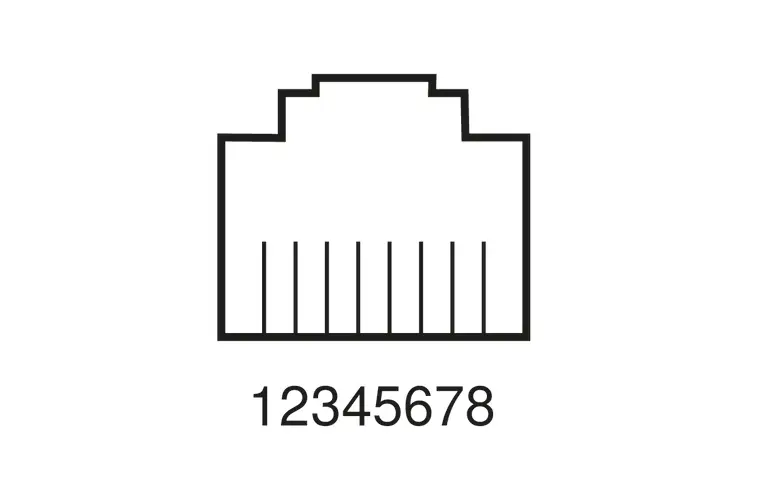

  • Connection mode 2: RJ45, 8-pin
  • Torque: M12: 0,6 Nm
  • Coding: D-coding
  • Cable length (L): 10 m
  • Outer diameter (d): 6.5 mm
  • Wire cross-section: 0.34 mm²
  • Degree of Protection: IP67
  • Temperature Range: 14°F to 140°F
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: Plastic, PO
  • Material Sleeve Nut: Zinc diecasting
  • Category: CAT 5
  • Equipment: Shielded
  • Halogen-free: yes
  • Drag Chain Suitable: yes
  • Bending radius (fixed installation): 5 × d
  • Bending radius (used in motion): 10 × d
  • Travel speed (with 5 m horizontal travel distance): 4 m/s
  • Acceleration: 4 m/s²
  • Bending cycles: 3000000
  • Weight: 650 g
  • Scope of delivery: 1 × connection cable
  • Packaging unit: 1 Piece
