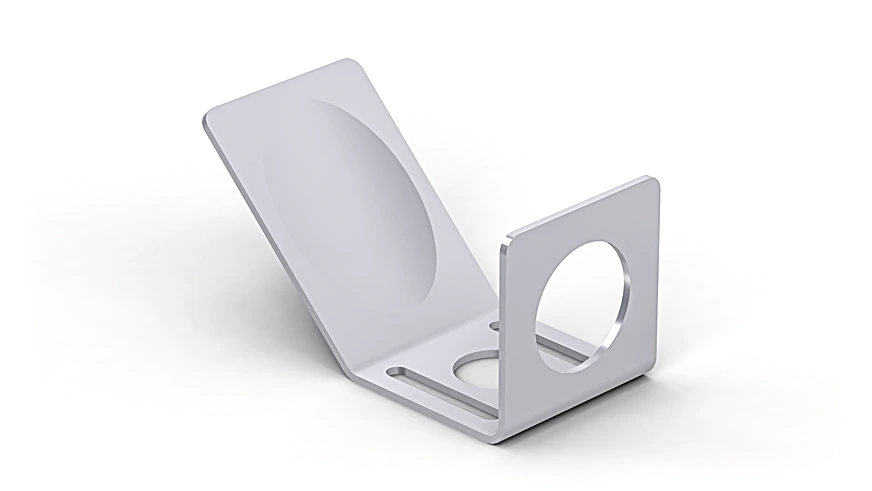

Wenglor Z0024 Baffle Plate for M30 × 1,5

Name: Wenglor Z0024 Baffle Plate for M30 × 1,5
Brand: Wenglor
Price: 45.3 USD
Availability: BackOrder

Baffle Plate for M30 × 1,5.

$45.30

Part Number

Z0024

Highlights...

Z0024
By Wenglor
FREE Shipping on orders of $2,000 or more
Limited to in-stock inventory

Features

For M30 × 1,5
Deflection about 90°
Focussing the ultrasonic cone
Material: Stainless steel, V2A (1.4301/1.4303)
Deflection about 90°: yes
Focusing the sonic cone: yes
Weight: 118 g
Scope of delivery: 1 × baffle plate
Packaging unit: 1 Piece

Use of the baffle plate does not influence the range of the ultrasonic sensors. Due to focusing, the sonic cone becomes roughly 3° narrower. The mounting clearance between the sensor's active surface and the baffle plate must be subtracted from the sensor's maximum range.
