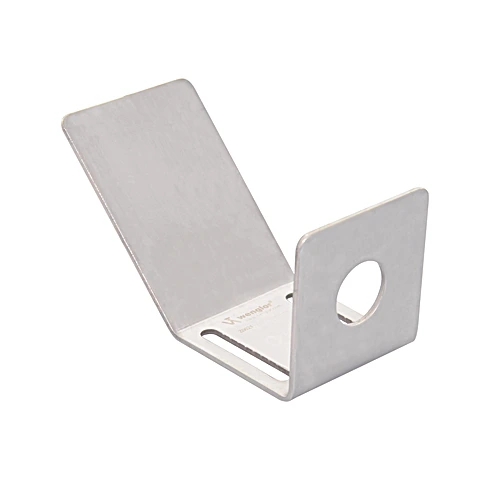

Wenglor Z0021 Baffle Plate for M18 × 1

Baffle Plate for M18 × 1.

$34.50
Part Number
  • Z0021
Highlights...

Features

  • For M18 × 1
  • Deflection about 90°
  • Material: Stainless steel, V2A (1.4301/1.4303)
  • Deflection about 90°: yes
  • Weight: 125 g
  • Scope of delivery: 1 × baffle plate
  • Packaging unit: 1 Piece
Use of the baffle plate does not influence the range or sonic cone of the ultrasonic sensors. The mounting clearance between the sensor's active surface and the baffle plate must be subtracted from the sensor's maximum range.
