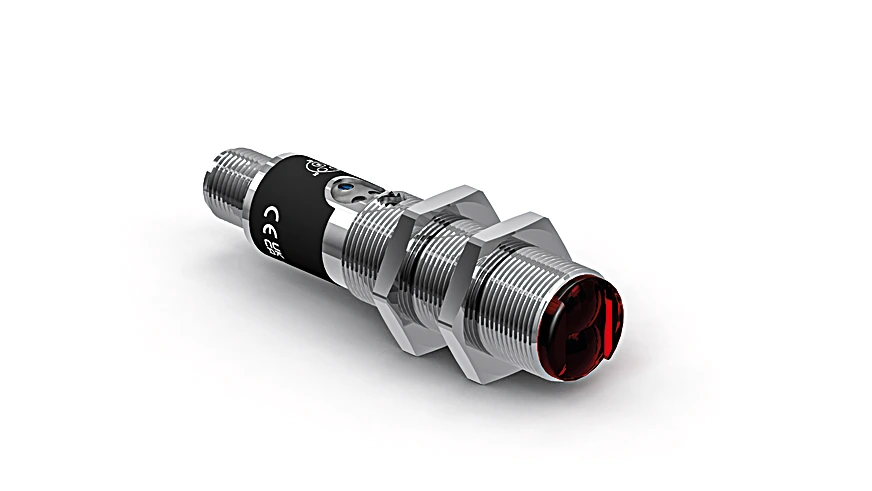

Wenglor XD100PCV3 Retro-Reflex Sensor Universal

Features

• Stainless steel housing
• Smallest recognizable part: 0,1 mm
• Range: 14 m
• Switching frequency: 3 kHz
• Range: 14,000 mm
• Reference Reflector/Reflector Foil: RQ100BA
• Smallest Recognizable Part: 100 µm
• Switching Hysteresis: < 15 %
• Light Source: Laser, red
• Wavelength: 655 nm
• Polarization Filter: yes
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 2
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 1 °
• Beam Divergence: < 15 mrad
• Light Spot Diameter: see table 1
• Focus Distance: 350 mm
• Optics: Two-Lens Optic
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 30 mA
• Switching Frequency: 3 kHz
• Response Time: 167 µs
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• FDA Accession Number: 0820386-000
• Setting Method: Potentiometer
• Housing Material: Stainless steel, V2A (1.4305/303)
• Full Encapsulation: yes
• Degree of Protection: IP67
• Connection Type: Plug variant
• Connection: M12 × 1; 4-pin
• Weight: 35 g
• MTTFd (EN ISO 13849-1): 2,153.46 a
• Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
• Contamination Output: yes
• PNP NO: yes
• Circuit: NC, NC/NO, NO
• Working Distance: 0,2 m, 5 m, 10 m
• Light Spot Diameter: 2 mm, 42,5 mm, 85 mm
• RQ100BA: 0.6 to 14 m
• RE18040BA: 0.6 to 9.5 m
• RQ84BA: 0.75 to 11 m
• RR84BA: 0.55 to 14 m
• RE9538BA: 0.55 to 5 m
• RE6151BM: 0.35 to 10 m
• RE6151BA: 0.5 to 4.5 m
• RR50_A: 0.65 to 9 m
• RE6040BA: 0.5 to 11 m
• RE8222BA: 0.7 to 5.5 m
• RR34_M: 0.6 to 5.5 m
• RE3220BM: 0.55 to 3.5 m
• RE6210BM: 0.45 to 3.5 m
• RR25_M: 0.4 to 4.5 m
• RR25KP: 0.3 to 2.5 m
• RR21_M: 0.4 to 3 m
• ZRAE02B01: 0.7 to 4.5 m
• ZRME01B01: 0.5 to 1.8 m
• ZRME03B01: 0.5 to 5 m
• ZRMR02K01: 0.5 to 2 m
• ZRMS02_01: 0.6 to 2.8 m
• RF508: 0.4 to 1.1 m
• RF258: 0.4 to 1.6 m
• ZRDF__K01: 0.4 to 7 m
• Complementary Products: Reflector, Reflector Foil, Dust Extraction Tube STAUBTUBUS-01, PNP-NPN Converter BG2V1P-N-2M
