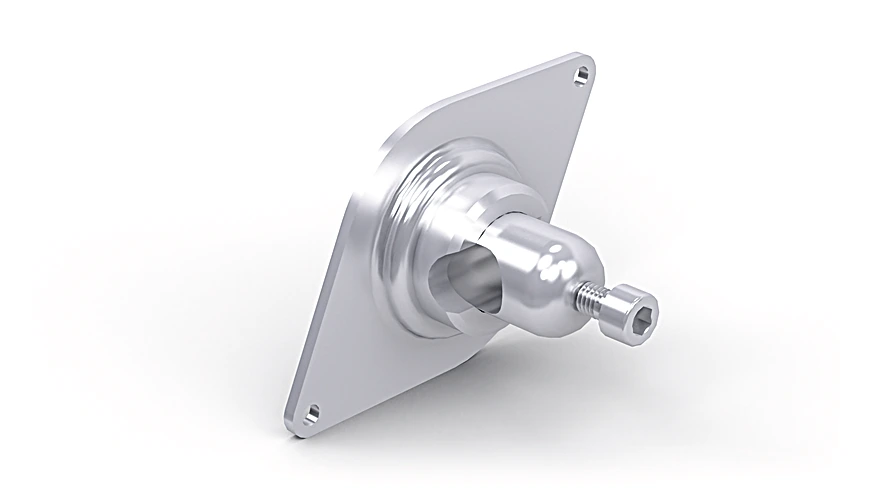

Wenglor WTAS12AL Mounting For 81 × 55 × 30…47 mm (TA)
Mounting For 81 × 55 × 30…47 mm (TA).
$21.90
Part Number
- WTAS12AL
Highlights...
- WTAS12AL
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Simple installation
- Flexible alignment options
- Aluminum
- For 81 × 55 × 30 to 47 mm
- Mounting type, device-side: Screwable to mounting plate
- Mounting type, system-side: Mounting bar
- Material Mounting Head: Aluminum, anodised
- Material Mounting Plate: Stainless steel, V2A (1.4301/304)
- for Round Profile Diameter: 8 to 13 mm
- Weight: 104 g
- Scope of delivery: 1 × mounting head, 1 × mounting plate, 1 × M6 screw × 20 mm
- Packaging unit: 1 Piece
- Use: for square housing
Description
The mounting allows wenglor sensors and reflectors to be easily adjusted and rotated 360° on the vertical and horizontal planes.
Documents
Spec Sheets
Other

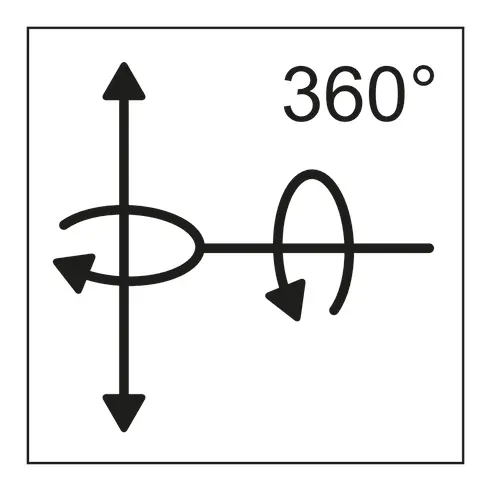

- Wenglor WTAS12AL Mounting For 81 × 55 × 30…47 mm (TA) Alignment possibilities (55 KB)

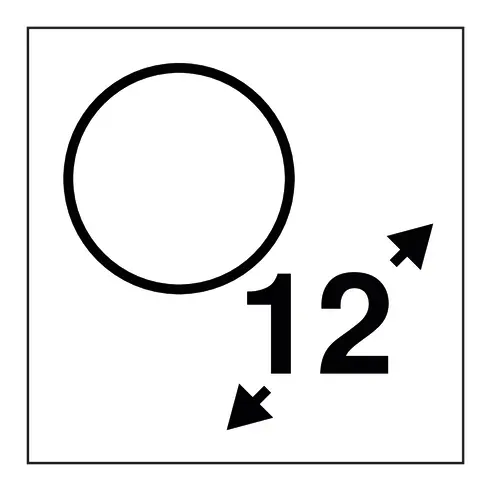

- Wenglor WTAS12AL Mounting For 81 × 55 × 30…47 mm (TA) Contour types-1 (28 KB)

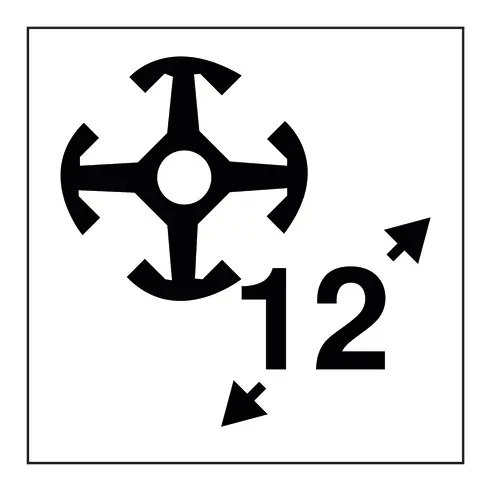

- Wenglor WTAS12AL Mounting For 81 × 55 × 30…47 mm (TA) Contour types-2 (31 KB)

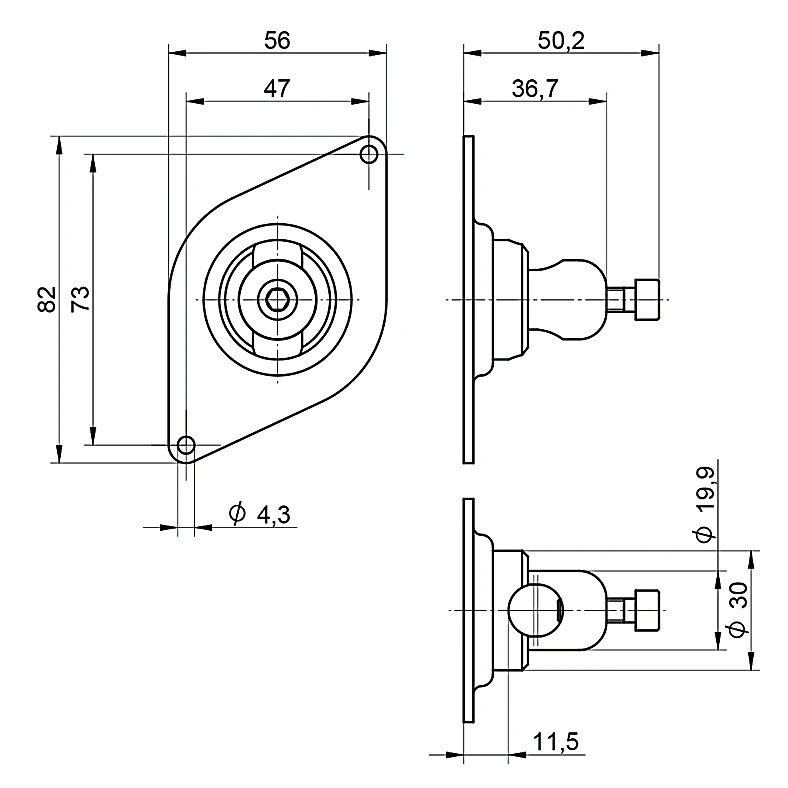

- Wenglor WTAS12AL Mounting For 81 × 55 × 30…47 mm (TA) Dimensioned Picture (30 KB)
