Wenglor UF55MV3 Fiber-optic amplifier

Fiber-optic amplifier.

$493.00
Part Number
  • UF55MV3
Highlights...

Features

  • Analog output (0 to 10 V DC)
  • Linear output signal proportional to obstruction of glass fiber
  • Adjustable slope
  • Working Range: 150 to 600 mm
  • Measuring Range: 450 mm
  • Resolution: 2 %
  • Light Source: Infrared, LED
  • Wavelength: 880 nm
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Principle: Through-beam mode
  • Supply Voltage: 20 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 50 Hz
  • Response Time: 10 ms
  • Temperature Drift: 3 %
  • Temperature Range: 14°F to 140°F
  • Analog Output: 0 to 10 V
  • Output Resistance Analog Output: 1 kOhm
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Protection Class: III

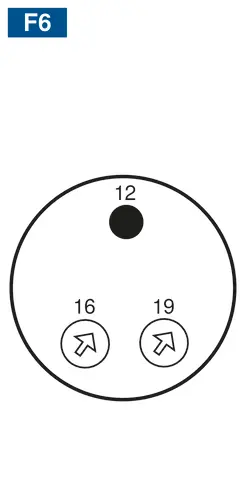

  • Setting Method: Potentiometer
  • Housing Material: Brass, nickel-plated
  • Optic Cover: Glass
  • Full Encapsulation: yes
  • Degree of Protection: IP65
  • Connection Type: Plug variant

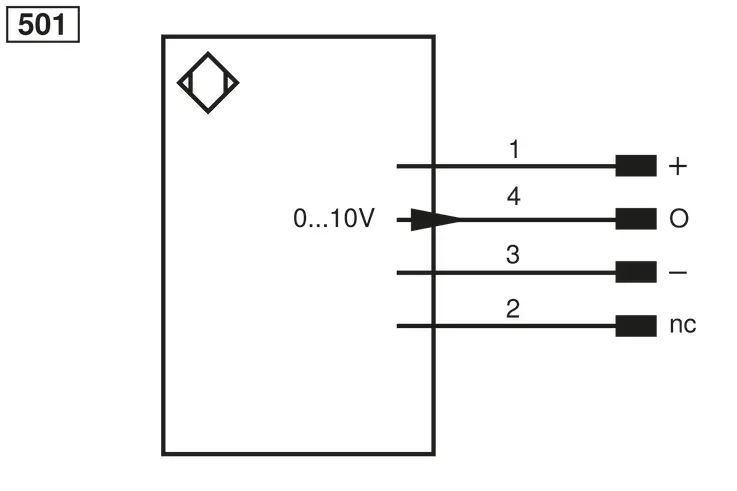

  • Connection: M12 × 1; 4-pin
  • Weight: 138 g
  • MTTFd (EN ISO 13849-1): 1,590.02 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor, 1 × UEM30KU-01 sleeve nut, 2 × MUTTER-M30-E001 hex nuts
  • Analog Output: yes
  • Complementary Products: Glass Fiber-Optic Light Curtain, IO-Link converter
This sensor is especially well suited for applications with glass fiber-optic light curtains using the through-beam sensor principle.
