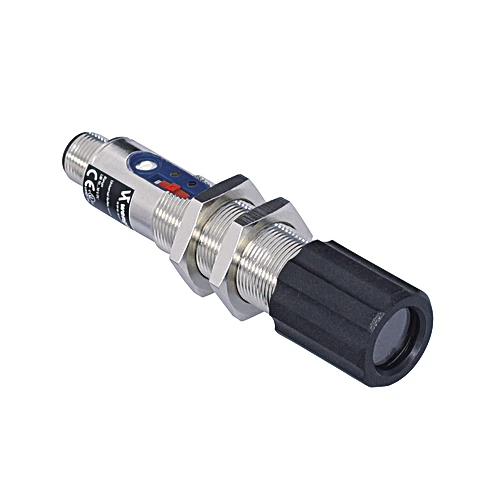

Wenglor UC44PC3S421 Fiber-optic amplifier

Fiber-optic amplifier.

$604.00
Part Number
  • UC44PC3S421
Highlights...

Features

  • Adaptable for fiber-optic cables: reflex and through-beam mode

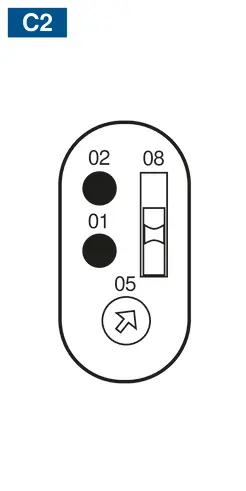

  • Control panel on the side
  • Adjustable detection range
  • Range: 400 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Infrared, LED
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 53.6°Furrent Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 1 kHz
  • Response Time: 500 µs
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Setting Method: Potentiometer
  • Housing Material: Brass, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP54
  • Connection Type: Plug variant

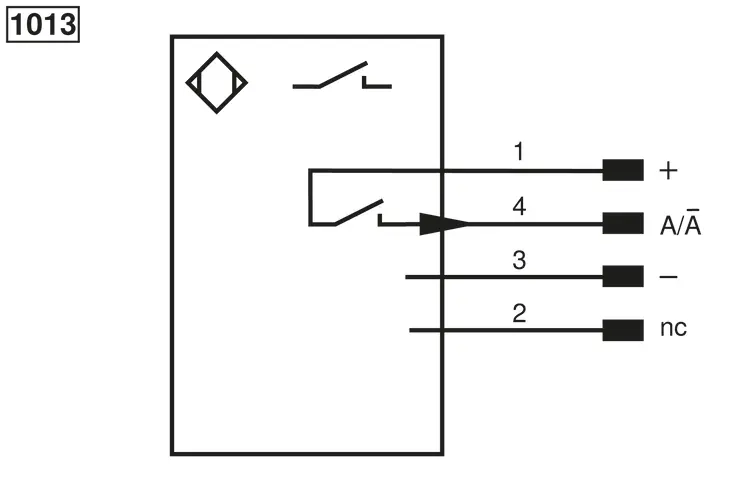

  • Connection: M12 × 1; 4-pin
  • Weight: 45 g
  • Scope of delivery: 1 × BEF-SET-13 mounting set, 1 × sensor, 1 × UEM18KU-01 sleeve nut
  • PNP NO: yes
  • Circuit: NC, NC/NO, NO
  • Complementary Products: Glass Fiber-Optic Cable, PNP-NPN Converter BG2V1P-N-2M
These sensors are equipped for use with glass fiber optic cables but can be used with or without one. The transmitter and receiver are located in a single housing. The sensor evaluates transmitted light reflected back from the object and the output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
