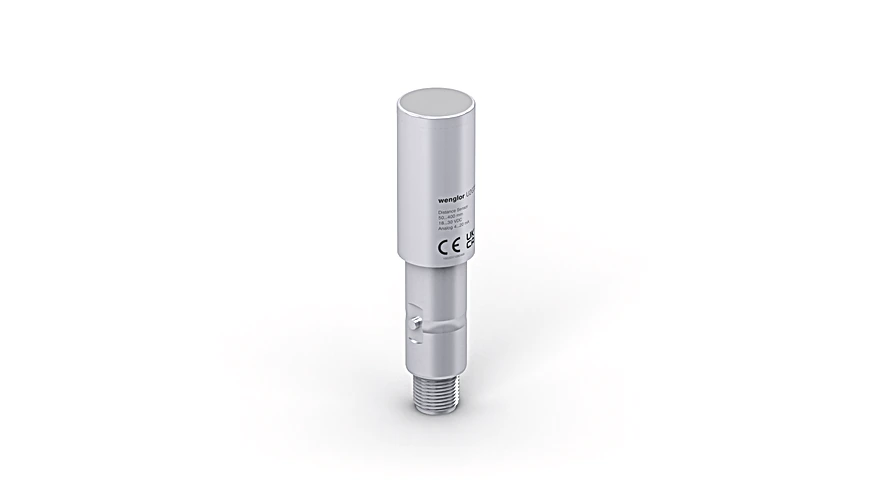

Wenglor U2GT001 Distance Sensor

Distance Sensor.

$717.00
Part Number
  • U2GT001
Highlights...

Features

  • Stainless steel housing for harsh environments
  • Hygienic design makes it easy to clean
  • FDA compliant and Ecolab certified
  • IO-Link 1.1
  • External teach-in
  • 2 switching outputs
  • Working range, reflex sensor: 50 to 600 mm
  • Working range, through-beam sensor: 50 to 1,200 mm
  • Setting Range: 50 to 600 mm
  • Reproducibility maximum: 4 mm
  • Linearity Deviation: 4 mm
  • Resolution: 1 mm
  • Ultrasonic Frequency: 260 kHz
  • Opening Angle: < 13 °
  • Service Life (T = 77°F): 100,000 h
  • Switching Hysteresis: 2 % *
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 35 mA
  • Switching frequency, reflex sensor: 10 Hz
  • Switching frequency, through-beam sensor: 10 Hz
  • Response time, reflex sensor: 50 ms
  • Response time, through-beam sensor: 50 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -22°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • Data Storage: yes
  • Protection Class: III
  • Setting Method: IO-Link, Teach input (for switching output)
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Sensing face: Stainless steel, V4A
  • Degree of Protection: IP68, IP69K
  • Connection Type: Plug variant

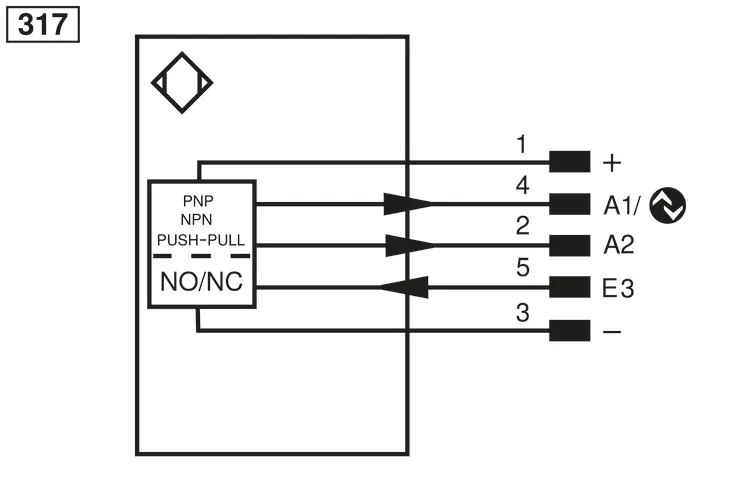

  • Connection: M12 × 1; 5-pin
  • Weight: 65 g
  • MTTFd (EN ISO 13849-1): 1,452.07 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • PNP NO: yes
  • IO-Link: yes
  • Output: NPN, PNP, Error Output
  • Circuit: NC, NC/NO, NO
  • Other parameters: Filter, Unit of measure, Adjustable sonic cone, Through-beam mode, Teach-in mode
  • Complementary Products: IO-Link Master, Software
These ultrasonic sensors evaluate the sound reflected from the object. They can detect almost any object and are especially well suited for monitoring fill levels of liquids and bulk goods and for detecting transparent objects regardless of the material, state, color or transparency. The measured value can be read out via IO-Link, and the sensor can be optimally adapted to the application. The stainless steel housing in hygienic design enables use in demanding environments such as washdown and hygienic areas. The sensor can be used both in reflex mode operation, and as an ultrasonic through-beam sensor.
