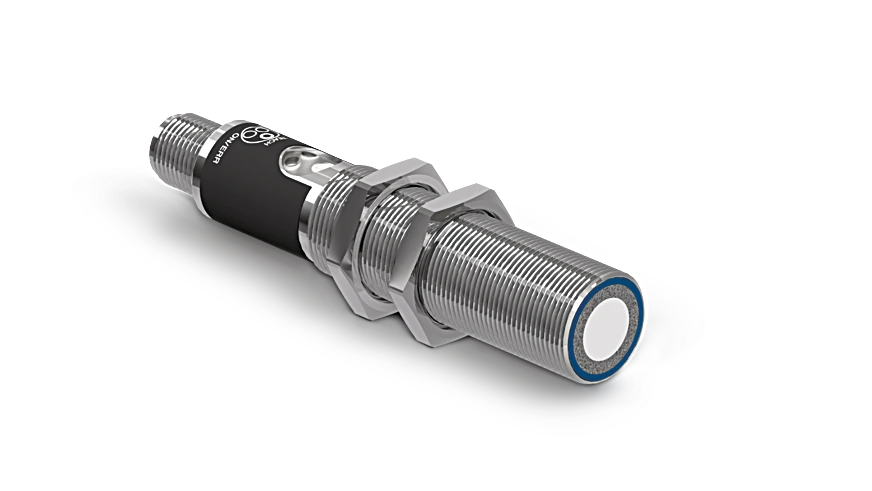

Wenglor U18T002 Distance Sensor

Distance Sensor.

$402.00
Part Number
  • U18T002
Highlights...

Features

  • Stainless steel housing
  • Digital and analog output
  • Synchronous and multiplex mode
  • IO-Link 1.1
  • Switching output adjustable via teach-in button

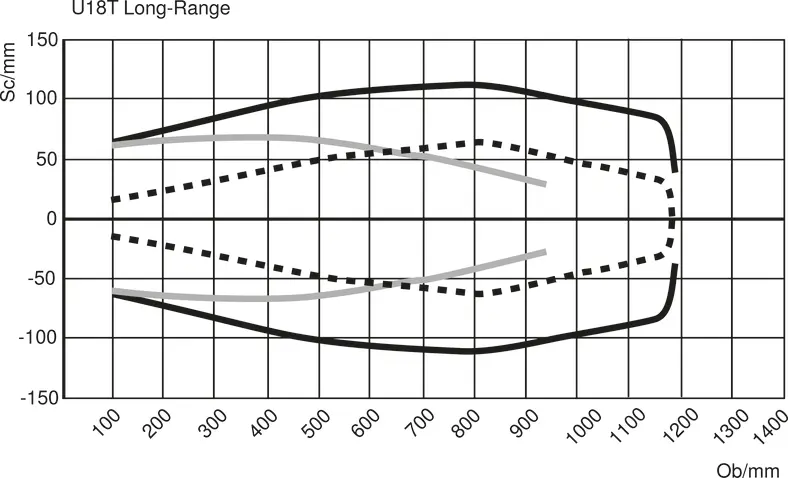

  • Working range, reflex sensor: 100 to 1,200 mm
  • Working range, through-beam sensor: 100 to 2,400 mm
  • Setting Range: 100 to 1,200 mm
  • Reproducibility maximum: 2 mm
  • Linearity Deviation: 3 mm
  • Resolution: 1 mm
  • Ultrasonic Frequency: 240 kHz
  • Service Life (T = 77°F): 100,000 h
  • Switching Hysteresis: 2 % *
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching frequency, reflex sensor: 7 Hz
  • Switching frequency, through-beam sensor: 7 Hz
  • Response time, reflex sensor: 71 ms
  • Response time, through-beam sensor: 71 ms
  • Temperature Drift: < 1 %
  • Temperature Range: -22°F to 140°F
  • Number of Switching Outputs: 1
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Analog Output: 0 to 10 V
  • Synchronous Mode: Up to 32 sensors
  • Multiplex Mode: up to 16 sensors
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.1
  • Data Storage: yes
  • Protection Class: III
  • Setting Method: IO-Link, Teach input (for switching output), Teach-in (for switching output)
  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Sensing face: Epoxy resin/glass bubble mixture, Plastic, PBT, Silicone
  • Degree of Protection: IP67
  • Connection Type: Plug variant

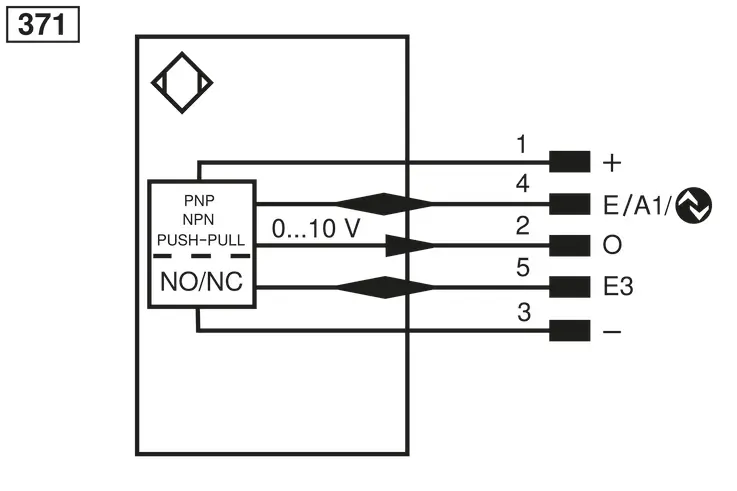

  • Connection: M12 × 1; 5-pin
  • Weight: 42 g
  • MTTFd (EN ISO 13849-1): 1,193.85 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • PNP NO/NC switchable: yes
  • Analog Output: yes
  • IO-Link: yes
  • Circuit: NC, NC/NO, NO
  • Other parameters: Multiplex mode, Synchronous mode
  • Complementary Products: IO-Link converter, IO-Link Master, Software, Baffle Plate Z0021, Z0022
These ultrasonic sensors evaluate the sound reflected from the object. They are capable of detecting almost any object, regardless of material and condition. As such, they are especially well suited for monitoring fill levels of liquids and bulk goods and for detecting transparent objects. The measured value can be read out via IO-Link, and the sensor can be adapted as needed to the application. The sensor can be used in reflex mode operation and as an ultrasonic through-beam sensor.
