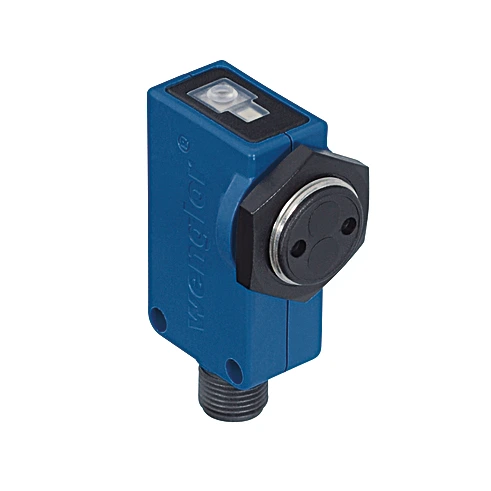

Wenglor TR55PCVT2 Reflex Sensor Energetic

Features

• Compact housing
• Teach-in
• Large detection range
• Simple installation
• Range: 500 mm
• Switching Hysteresis: 15 %
• Light Source: Infrared, LED
• Wavelength: 880 nm
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 12 °
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 40 mA
• Switching Frequency: 1 kHz
• Response Time: 500 µs
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Lockable: yes
• Teach Mode: NT, MT
• Protection Class: III
• Setting Method: Teach-In
• Housing Material: Plastic, PBT, Stainless steel, V2A (1.4305/303)
• Full Encapsulation: yes
• Degree of Protection: IP67
• Connection Type: Plug variant

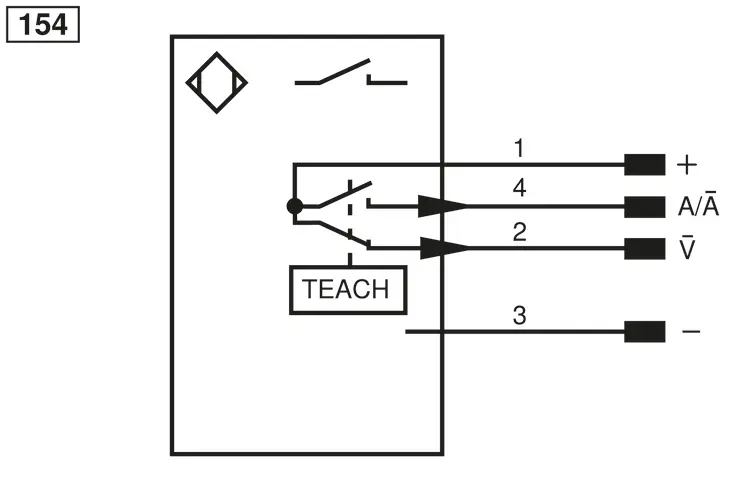

• Connection: M12 × 1; 4-pin
• Weight: 52 g
• Scope of delivery: 1 × operating instructions, 1 × initial start-up instructions, 1 × MUTTER-M18-E012 hex nut, 1 × sensor
• Contamination Output: yes
• PNP NO/NC switchable: yes
• Complementary Products: Adapterbox A232, Dust Extraction Tube STAUBTUBUS-01, PNP-NPN Converter BG2V1P-N-2M
