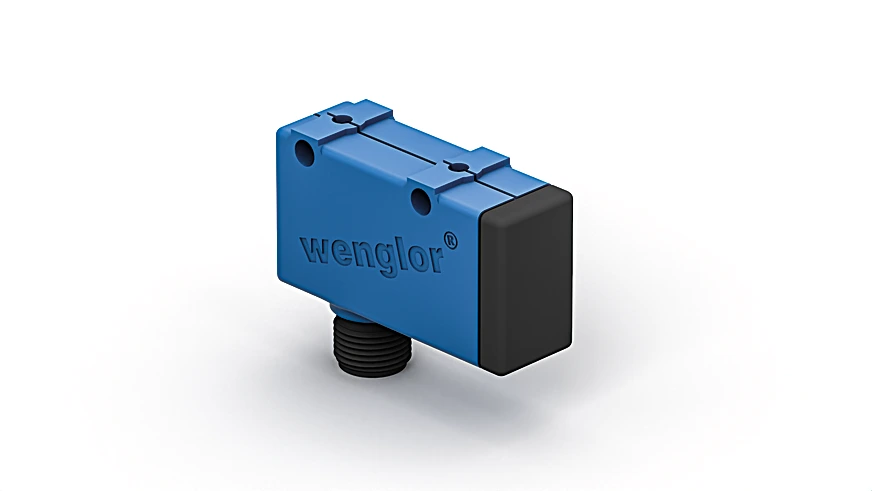

Wenglor TM55PCT2 Reflex Sensor Energetic

Reflex Sensor Energetic.

$205.00
Part Number
  • TM55PCT2
Highlights...

Features

  • Compact housing
  • Teach-in, external teach-in
  • Large detection range
  • Range: 500 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Infrared, LED
  • Wavelength: 850 nm
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 12 °
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 1 kHz
  • Response Time: 500 µs
  • On-/Off-Delay (RS-232): 0 to 5 s
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Teach Mode: NT, MT
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection Type: Plug variant

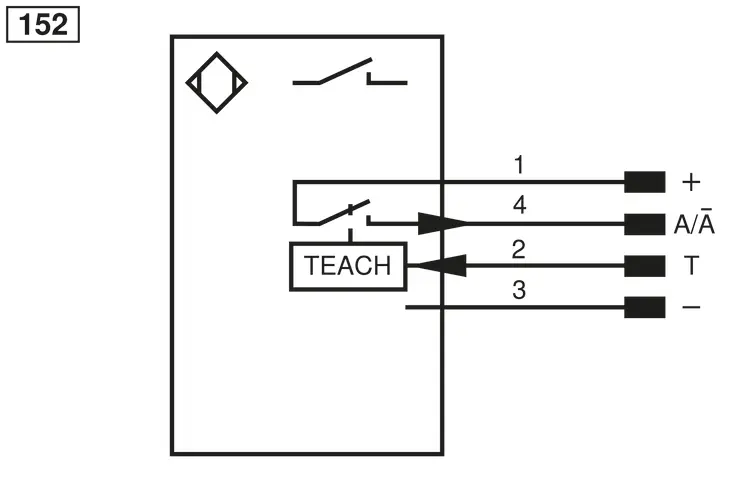

  • Connection: M12 × 1; 4-pin
  • Weight: 25 g
  • Scope of delivery: 1 × sensor
  • PNP NO: yes
  • External teach-in input: yes
  • RS-232 with Adapterbox: yes
  • Circuit: NC, NC/NO, NO
  • Complementary Products: Adapterbox A232, PNP-NPN Converter BG2V1P-N-2M, Software
The transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
