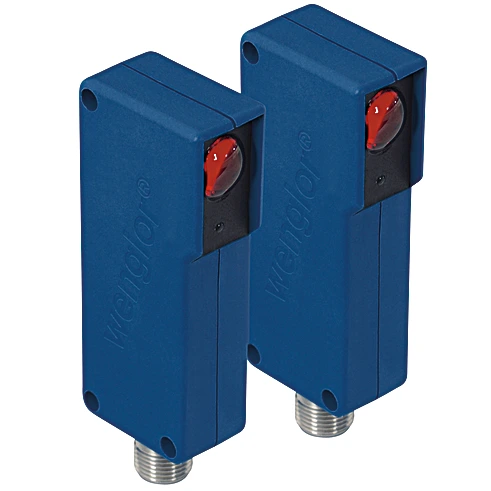

Wenglor SN6003 Through-Beam Sensor

Through-Beam Sensor.

$433.00
Part Number
  • SN6003
Highlights...

Features

  • Glass lenses
  • Test input
  • Range: 60 m
  • Range: 60,000 mm
  • Light Source: LED, red
  • Service Life (T = 77°F): 100,000 h
  • Opening Angle: 4 °
  • Sensor Type: Emitter
  • Supply Voltage: 15 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Temperature Drift: < 10 %
  • Temperature Range: -22°F to 131°F
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • Housing Material: Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67

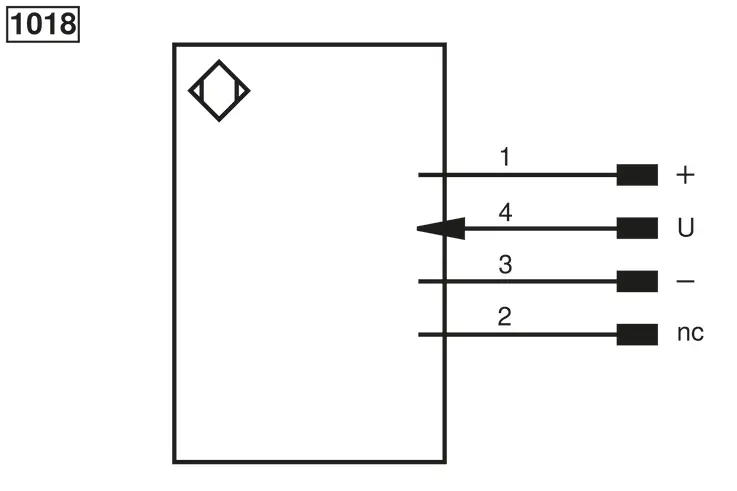

  • Connection: M12 × 1; 4-pin
  • Optic Cover: Glass
  • Weight: 81 g
  • Scope of delivery: 1 × BEF-SET-02 mounting set, 1 × initial start-up instructions, 1 × sensor
  • Complementary Products: Dust Extraction Tube STAUBTUBUS-03, Set Protective Housing ZSN-NN-02
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
