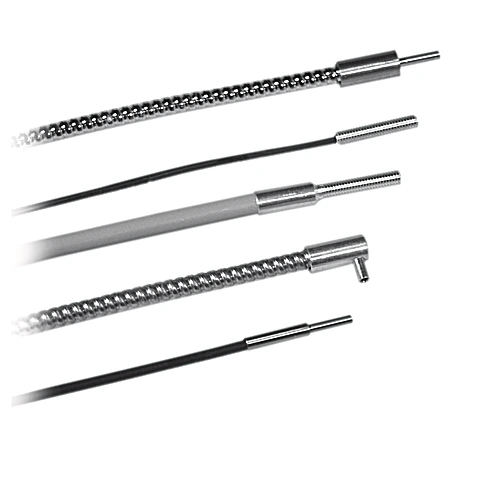

Wenglor SLK1478 Glass Fiber-Optic Cable Through-Beam Mode

Glass Fiber-Optic Cable Through-Beam Mode.

$427.00
Part Number
  • SLK1478
Highlights...

Features

  • A broad range of applications are possible due to the modular system design
  • The fiber-optic cable is available and can be ordered.
  • Fiber Bundle Diameter: 1.1 mm
  • Opening Angle: 68 °
  • Fiber: Step Index
  • Fiber Diameter: 50 µm
  • Temperature Range: -13°F to 176°F
  • Bending Radius: 23 mm
  • Fiber-Optic Length L: 2 m
  • Jacket Material: PVC
  • Material End Sleeve: Stainless Steel
  • Light Emission: straight
  • Weight: 67 g
  • Scope of delivery: 2 × fiber-optic cables
Glass fiber-optic cables are extremely flexible and can be used in confined spaces. Metal-sheathed glass fiber-optic cables are the solution for high ambient temperatures in particular. The modular system enables different fiber diameters, sheaths and other options to be manufactured individually. The technical support team will be happy to answer any further questions you may have.
