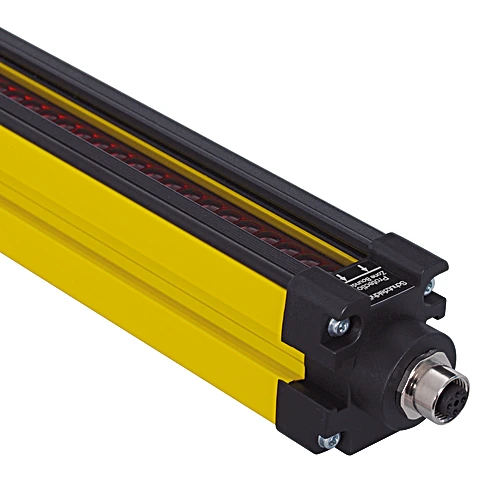

Wenglor SG4-30IE015C1 Safety Light Curtain Hand Protection

Features

• Fix blanking, floating blanking and reduced resolution, cascading, muting
• Completely integrated electronics
• Serial interface
• Range: 0.5 to 20 m
• Safety Field Height (SFH): 180 mm
• Resolution: 30 mm
• Light Source: LED, red
• Opening Angle: ± 2.5 °
• Sensor Type: Receiver
• Supply Voltage: 24 V DC
• Current Consumption (Ub = 24 V): 300 mA
• Response Time: 3.3 ms
• Temperature Range: -4°F to 122°F
• Storage temperature: -13°F to 158°F
• Number of safety outputs (OSSDs): 2
• Safety Output Voltage Drop: < 2.5 V
• PNP Safety Output/Switching Current: 300 mA
• Number of Signal Outputs: 1
• Signal Output Voltage Drop: < 2.5 V
• Signal Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Overload Protection: yes
• Reverse Polarity Protection: yes
• Interface: RS-485
• Protection Class: III
• Housing Material: Aluminum, powder-coated
• Degree of Protection: IP67
• Connection Type: Plug variant

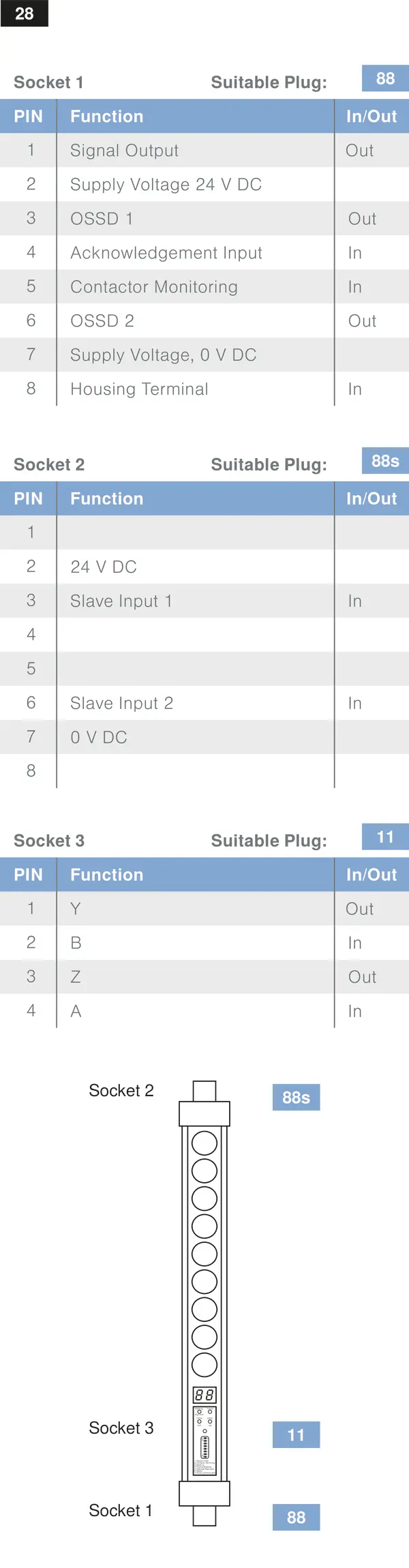

• Connection: M12 × 1; 8-pin
• Optic Cover: Plastic, PC
• Weight: 570 g
• ESPE Type (EN 61496): 4
• Safety Category (EN ISO 13849-1): 4
• Performance Level (EN ISO 13849-1): PL e
• PFHD: 3,08 × E-8 1/h
• Mission Time TM (EN ISO 13849-1): 20 a
• Hand Protection: yes
• Restart Inhibit: yes
• Contactor Monitoring: yes
• Cascading: yes
• Fix Blanking: yes
• Floating Blanking: yes
• Reduced Resolution: yes
• Serial Communication: yes
• Complementary Products: Software wsafe, Muting Indicator SM0-00CA000C1, Protection Column with Protective Screen SZ000EG125NN01, Protection Column with Path-Folding Mirror SZ000EU125NN01, Safety Relay SG4-00VA000R2, SR4B3B01S, SR4D3B01S, Path-Folding Mirror Z2UG002, Laser Alignment Tool SZ0-LAH1, Software
