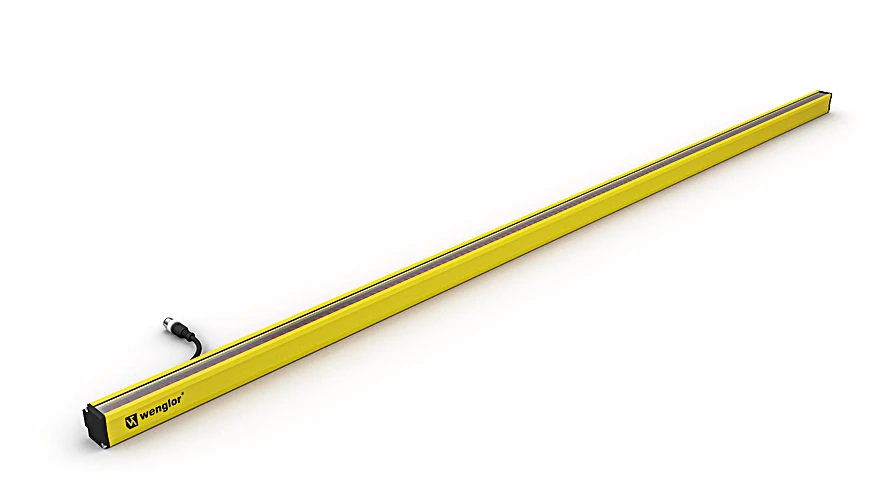

Wenglor SEMG519 Safety Light Curtain Hand Protection

Safety Light Curtain Hand Protection.

$2,083.00
Part Number
  • SEMG519
Highlights...

Features

  • Easy configuration via wiring
  • Slim design for easy integration
  • Quick alignment through visible red light
  • Protection field over the entire length of the housing for an installation without protrusion
  • Range: 0.25 to 14 m

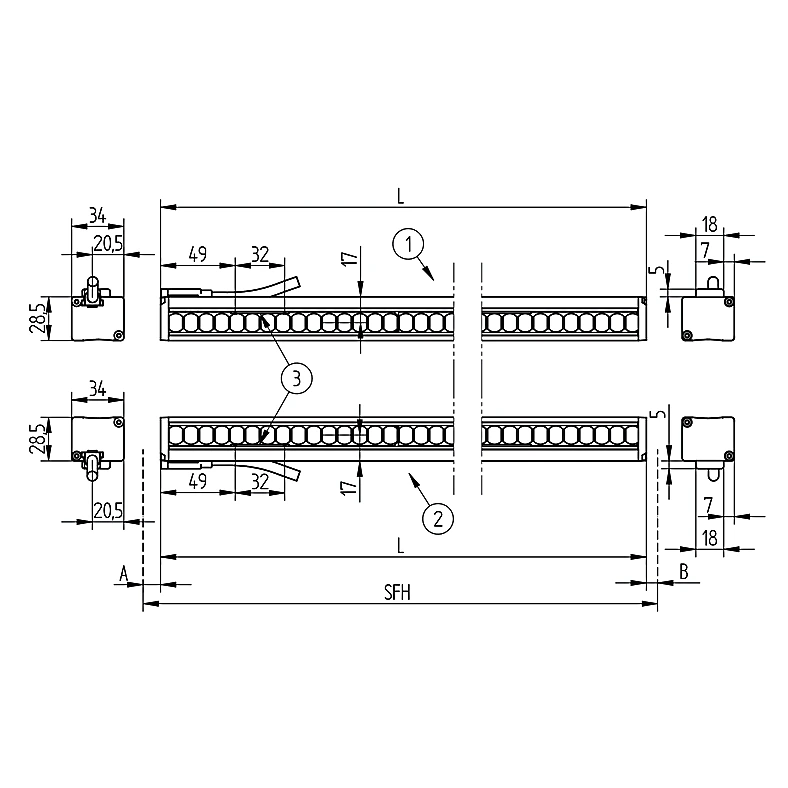

  • Housing Length (L): 1,362 mm
  • Safety Field Height (SFH): 1,387 mm
  • Resolution: 30 mm
  • Light Source: LED, red
  • Wavelength: 630 nm
  • Opening Angle: ± 2.5 °
  • Sensor Type: Emitter
  • Supply Voltage: 19.2 to 28.8 V DC
  • Current Consumption (Ub = 24 V): 75 mA
  • Temperature Range: -13°F to 131°F
  • Storage temperature: -13°F to 140°F
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • Housing Material: Aluminum, powder-coated
  • Optic Cover: Plastic, PC
  • Degree of Protection: IP65, IP67
  • Connection Type: 1 plug with cable

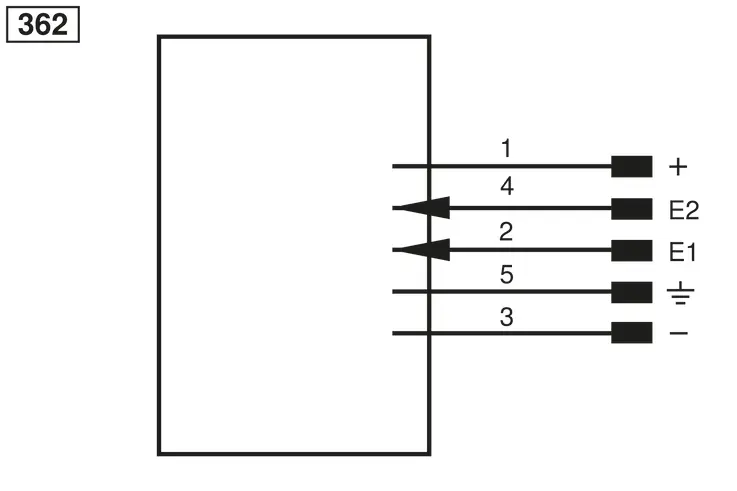

  • Connection: M12 × 1; 5-pin
  • Cable length (L): 300 mm
  • Weight: 1,400 g
  • ESPE Type (EN 61496): 4
  • Performance Level (EN ISO 13849-1): Cat. 4 PL e
  • Mission Time TM (EN ISO 13849-1): 20 a
  • Safety Integrity Level (EN 61508): SIL 3
  • Safety Integrity Level (EN 62061): SILCL 3
  • Scope of delivery: 1 × safety light curtain
  • Hand Protection: yes
  • Scope of functions: Basic function
  • Complementary Products: Protection Column with Protective Screen SZ000EG170NN01, Protection Column with Path-Folding Mirror SZ000EU170NN01, Path-Folding Mirror Z2UG004, Software, Protection column with deflection mirror Z2SU002, Protection column with protective screen Z2SS002
These safety light curtains complete all basic tasks with ease. The basic functions of safety operating mode, restart inhibit and contactor monitoring are integrated as standard and can be easily configured. Without protrusion, the safety field always extends to the end of the housing. This makes it easy to secure even in confined installation conditions.
