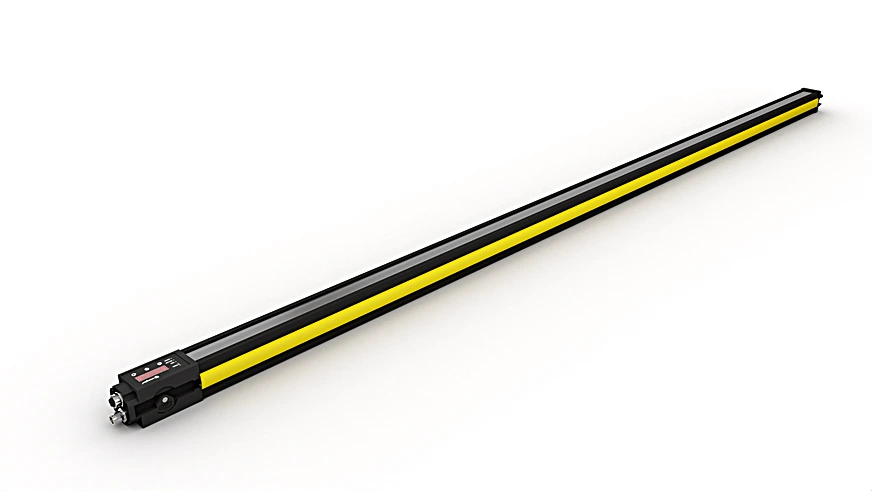

Wenglor SEFG660 Safety Light Curtain Hand Protection

Safety Light Curtain Hand Protection.

$3,779.00
Part Number
  • SEFG660
Highlights...

Features

  • Simple configuration and diagnosis with wTeach2 software
  • Higher levels of safety and availability thanks to intelligent muting functions
  • Multifunctional thanks to measuring function
  • Quick duplication of settings via microSD memory card
  • Range: 0.25 to 20 m

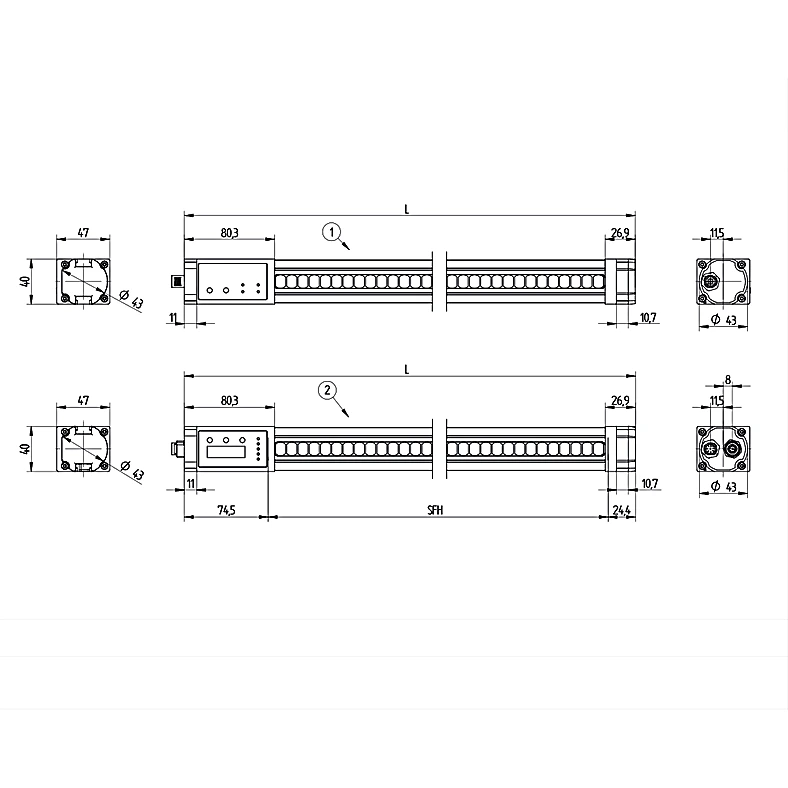

  • Housing Length (L): 1,610 mm
  • Safety Field Height (SFH): 1,511 mm
  • Resolution: 30 mm
  • Light Source: LED, red
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: ± 2.5 °
  • Sensor Type: Receiver
  • Supply Voltage: 19.2 to 28.8 V DC
  • Current Consumption (Ub = 24 V): ≤ 350 mA
  • Response Time: 16.2 ms
  • Temperature Range: -22°F to 131°F
  • Storage temperature: -22°F to 158°F
  • Number of safety outputs (OSSDs): 2
  • Safety Output Voltage Drop: ≤ 2.3 V
  • PNP Safety Output/Switching Current: ≤ 300 mA
  • Number of Signal Outputs: 1
  • Signal Output Voltage Drop: < 2.5 V
  • Signal Output/Switching Current: < 100 mA
  • Short Circuit Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • Housing Material: Aluminum, anodised
  • Optic Cover: Plastic, PC
  • Degree of Protection: IP65, IP67
  • Connection Type: Plug variant

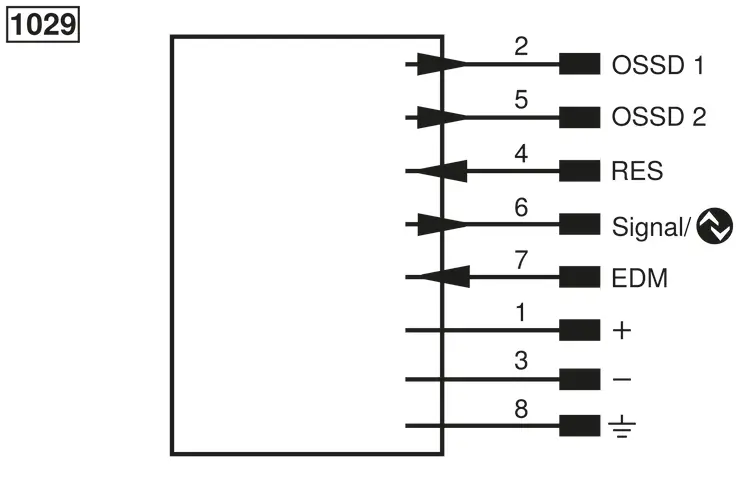

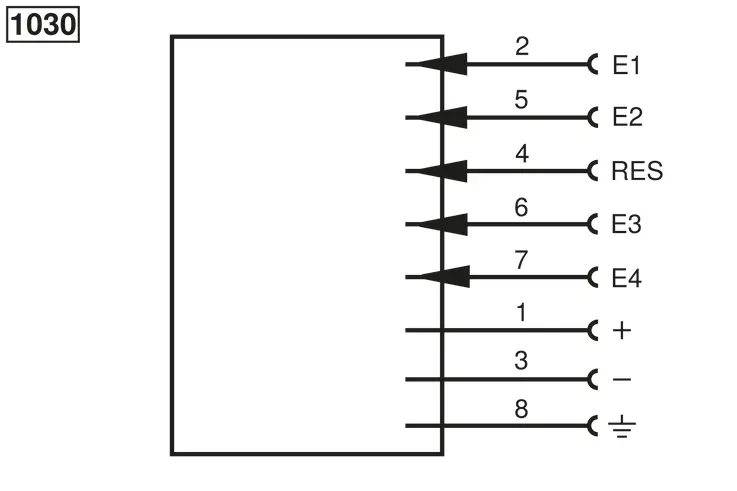

  • Connection: M12 × 1; 8-pin
  • Weight: 2,980 g
  • ESPE Type (EN 61496): 4
  • Performance Level (EN ISO 13849-1): Cat. 4 PL e
  • PFHD: ≤ 1.8 × 10-8
  • Mission Time TM (EN ISO 13849-1): 20 a
  • Safety Integrity Level (EN 61508): SIL 3
  • Safety Integrity Level (EN 62061): SILCL 3
  • Scope of delivery: 1 × safety light curtain
  • Hand Protection: yes
  • Scope of functions: Muting
  • IO-Link: yes
  • Complementary Products: Safety Relay SG4-00VA000R2, SR4B3B01S, SR4D3B01S, Laser alignment tool Z98G001, microSD card ZNNG013, Muting connection box ZFBB001, Muting boom ZMZG005, Test rods ZEMG003 and ZEMG009, IO-Link Master, Protection column with deflection mirror Z2SU003, Protection columns with/without protective screen (Z2SS003/ Z2SM003)
The safety light curtain can be flexibly integrated into systems thanks to the well-conceived mounting technology and the compact housing. Alignment of the emitter and the receiver is simplified by the visible red light and the signal strength display. User-friendly wTeach2 software make settings and diagnosis via the IO-Link interface extremely easy. Settings can be subsequently saved to a microSD card and quickly duplicated on other products. Extensive muting functions guarantee an ideal solution for every application in order to safely transport objects into and out of the danger zone.
