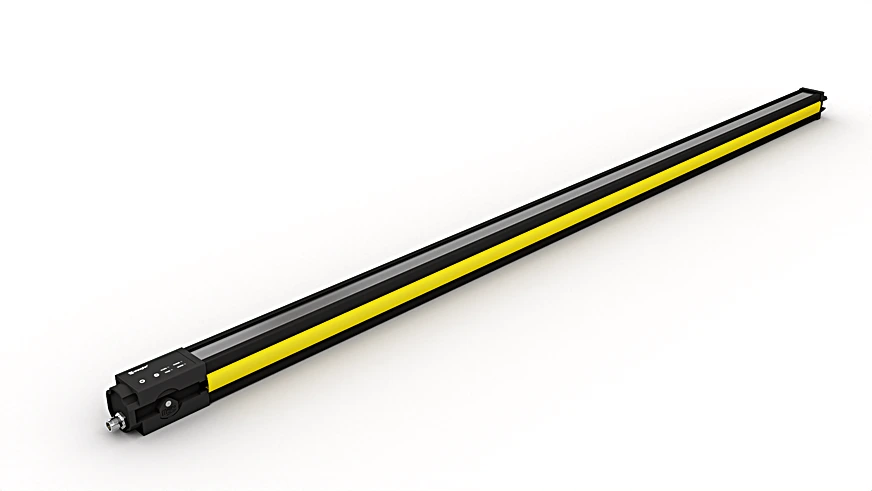

Wenglor SEFG518 Safety Light Curtain Hand Protection

Safety Light Curtain Hand Protection.

$2,731.00
Part Number
  • SEFG518
Highlights...

Features

  • Range: 0.25 to 20 m

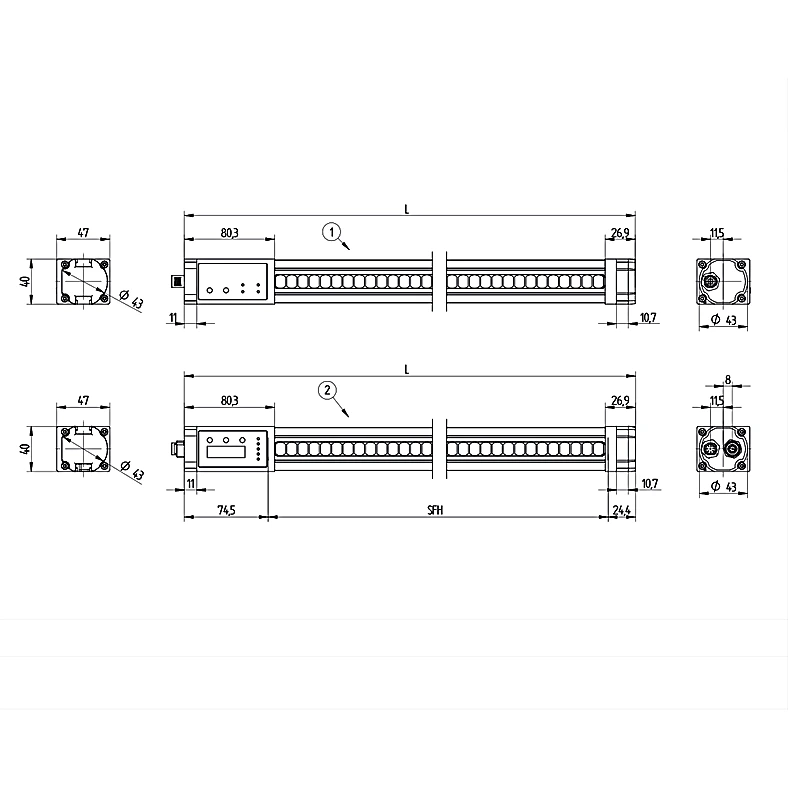

  • Housing Length (L): 1,310 mm
  • Safety Field Height (SFH): 1,211 mm
  • Resolution: 30 mm
  • Light Source: LED, red
  • Wavelength: 630 nm
  • Opening Angle: ± 2.5 °
  • Sensor Type: Emitter
  • Supply Voltage: 19.2 to 28.8 V DC
  • Current Consumption (Ub = 24 V): ≤ 100 mA
  • Response Time: 14.4 ms
  • Temperature Range: -22°F to 131°F
  • Storage temperature: -22°F to 158°F
  • Number of safety outputs (OSSDs): 2
  • Safety Output Voltage Drop: ≤ 2.3 V
  • PNP Safety Output/Switching Current: ≤ 300 mA
  • Number of Signal Outputs: 1
  • Signal Output Voltage Drop: ≤ 2.5 V
  • Signal Output/Switching Current: ≤ 100 mA
  • Short Circuit Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • Housing Material: Aluminum, anodised
  • Optic Cover: Plastic, PC
  • Degree of Protection: IP65, IP67
  • Connection Type: Plug variant

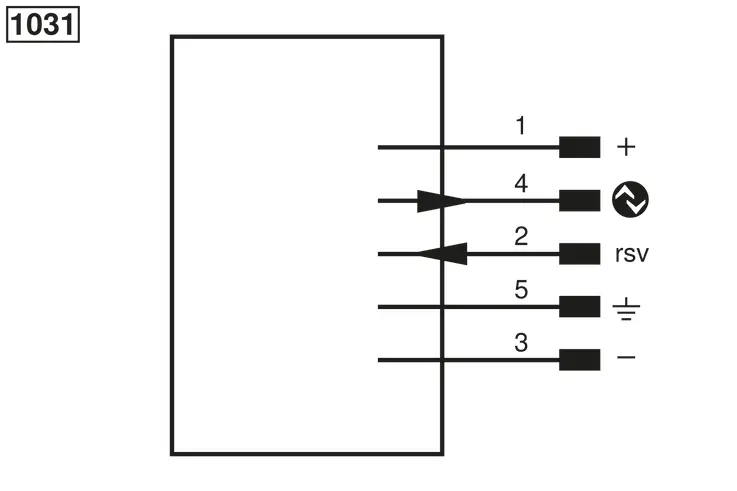

  • Connection: M12 × 1; 5-pin
  • Weight: 2,390 g
  • ESPE Type (EN 61496): 4
  • Performance Level (EN ISO 13849-1): Cat. 4 PL e
  • PFHD: ≤ 1.8 × 10-8
  • Mission Time TM (EN ISO 13849-1): 20 a
  • Safety Integrity Level (EN 61508): SIL 3
  • Safety Integrity Level (EN 62061): SILCL 3
  • Scope of delivery: 1 × safety light curtain
  • Hand Protection: yes
  • Complementary Products: Protection column with deflection mirror Z2SU002, Protection columns with/without protective screen (Z2SS002/ Z2SM002), Deflection mirror Z0032
The safety light curtain can be flexibly integrated into systems thanks to the well-conceived mounting technology and the compact housing. Alignment of the emitter and the receiver is simplified by the visible red light and the signal strength display. User-friendly wTeach2 software make settings and diagnosis via the IO-Link interface extremely easy. Settings can be subsequently saved to a microSD card and quickly duplicated on other products. Extensive muting functions guarantee an ideal solution for every application in order to safely transport objects into and out of the danger zone.
