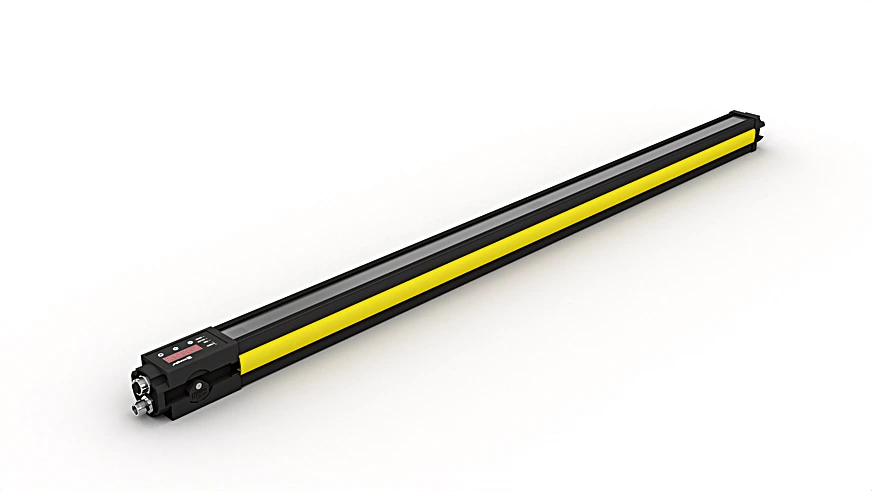

Wenglor SEFB613 Safety Light Array Body Protection

Safety Light Array Body Protection.

$1,696.00
Part Number
  • SEFB613
Highlights...

Features

  • Simple configuration and diagnosis with wTeach2 software
  • Increased safety thanks to intelligent muting functions
  • Multifunctional thanks to measuring function
  • Quick duplication of settings via microSD memory card
  • Range: 0.5 to 50 m

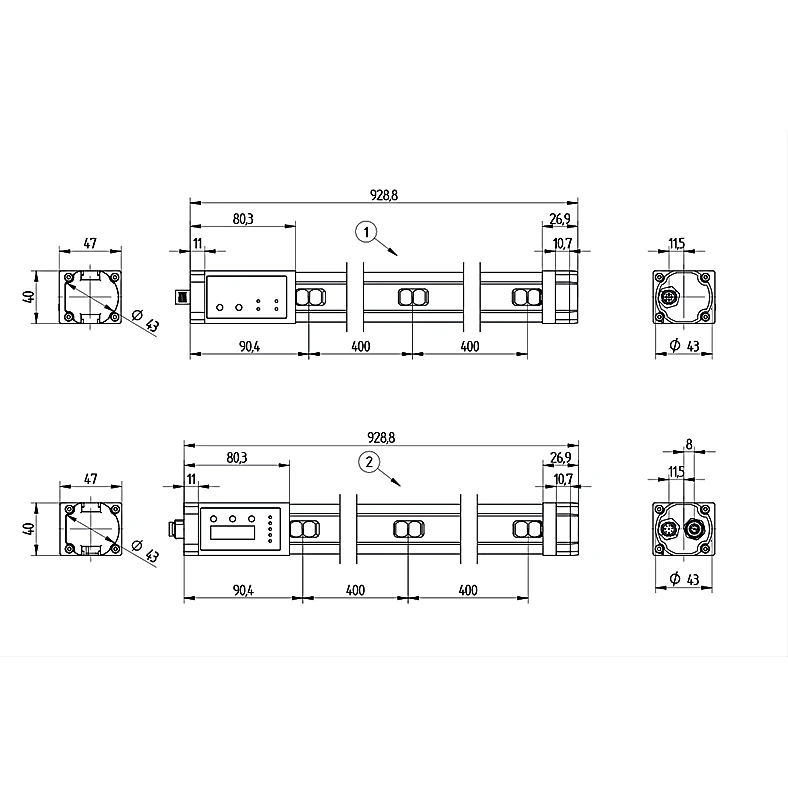

  • Beam Distance: 400 mm
  • Number of Beams: 3
  • Light Source: LED, red
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: ± 2.5 °
  • Sensor Type: Receiver
  • Supply Voltage: 19.2 to 28.8 V DC
  • Current Consumption (Ub = 24 V): ≤ 350 mA
  • Response Time: 15 ms
  • Temperature Range: -22°F to 131°F
  • Storage temperature: -22°F to 158°F

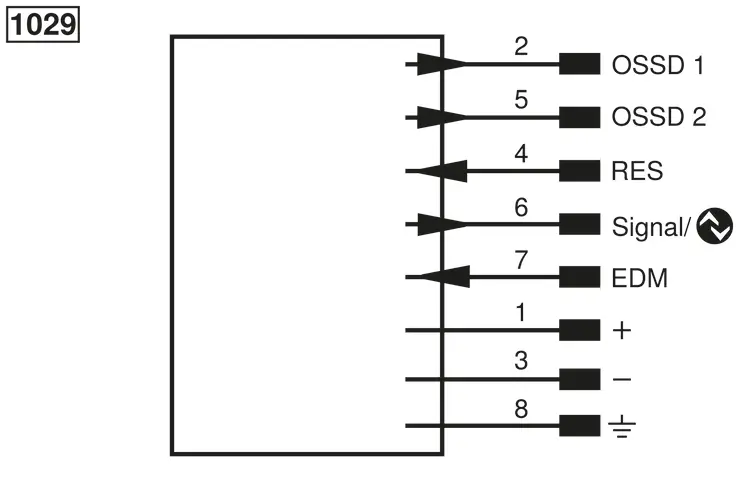

  • Number of safety outputs (OSSDs): 2
  • Safety Output Voltage Drop: ≤ 2.3 V
  • PNP Safety Output/Switching Current: ≤ 300 mA
  • Number of Signal Outputs: 1
  • Signal Output Voltage Drop: ≤ 2.5 V
  • Signal Output/Switching Current: ≤ 100 mA
  • Short Circuit Protection: yes
  • Overload Protection: yes
  • Reverse Polarity Protection: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • Housing Material: Aluminum, anodised
  • Optic Cover: Plastic, PC
  • Degree of Protection: IP65, IP67
  • Connection Type: Plug variant
  • Connection: M12 × 1
  • Weight: 1,720 g
  • ESPE Type (EN 61496): 4
  • Performance Level (EN ISO 13849-1): Cat. 4 PL e
  • PFHD: ≤ 1.8 × 10-8
  • Mission Time TM (EN ISO 13849-1): 20 a
  • Safety Integrity Level (EN 61508): SIL 3
  • Safety Integrity Level (EN 62061): SILCL 3
  • Scope of delivery: 1 × safety light array
  • Body Protection: yes

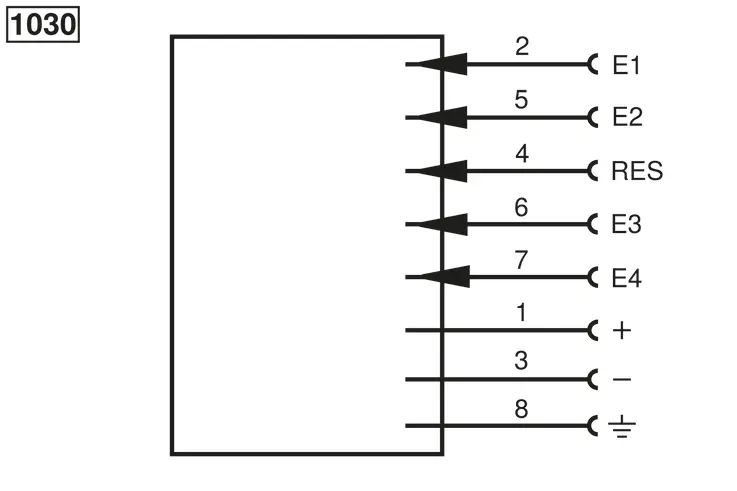

  • Scope of functions: Muting
  • Complementary Products: Protection column with protective screen Z2SS001, Protection Column with Path-Folding Mirror SZ000EU125NN01, Path-Folding Mirror Z2UG001, IO-Link Master, Connection box for muting sensors, Muting Sensor Set, Safety Relay SG4-00VA000R2, SR4B3B01S, SR4D3B01S, Software, microSD card ZNNG013
The safety light array can be attached anywhere thanks to the T slot and mounting bracket. The visible red light and signal strength display make it easy to align the emitter and the receiver. Safety operating mode, restart inhibit and contactor monitoring are included as standard functions. The user-friendly IO-Link and wenglor software wTeach2 are used for configuration. In addition, safety light arrays provide various muting features for transporting material through hazardous areas. Optional LED indicator stripes visualize the various muting phases.
