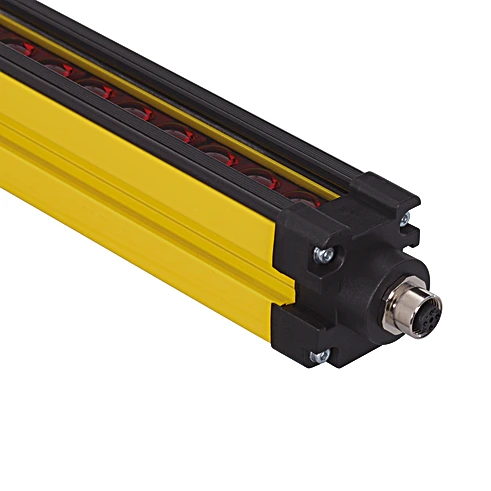

Wenglor SB4-40IS080C1 Safety Light Array Body Protection

Safety Light Array Body Protection.

$1,339.00
Part Number
  • SB4-40IS080C1
Highlights...

Features

  • Completely integrated electronics
  • Quick alignment through visible red light
  • Range: 0.5 to 20 m
  • Beam Distance: 400 mm
  • Number of Beams: 3
  • Light Source: LED, red
  • Wavelength: 650 nm
  • Opening Angle: ± 2.5 °
  • Sensor Type: Emitter
  • Supply Voltage: 21.6 to 26.4 V DC
  • Current Consumption (Ub = 24 V): 100 mA
  • Temperature Range: -4°F to 122°F
  • Storage temperature: -13°F to 158°F
  • Protection Class: III
  • Housing Material: Aluminum, powder-coated
  • Optic Cover: Plastic, PC
  • Degree of Protection: IP67
  • Connection Type: Plug variant

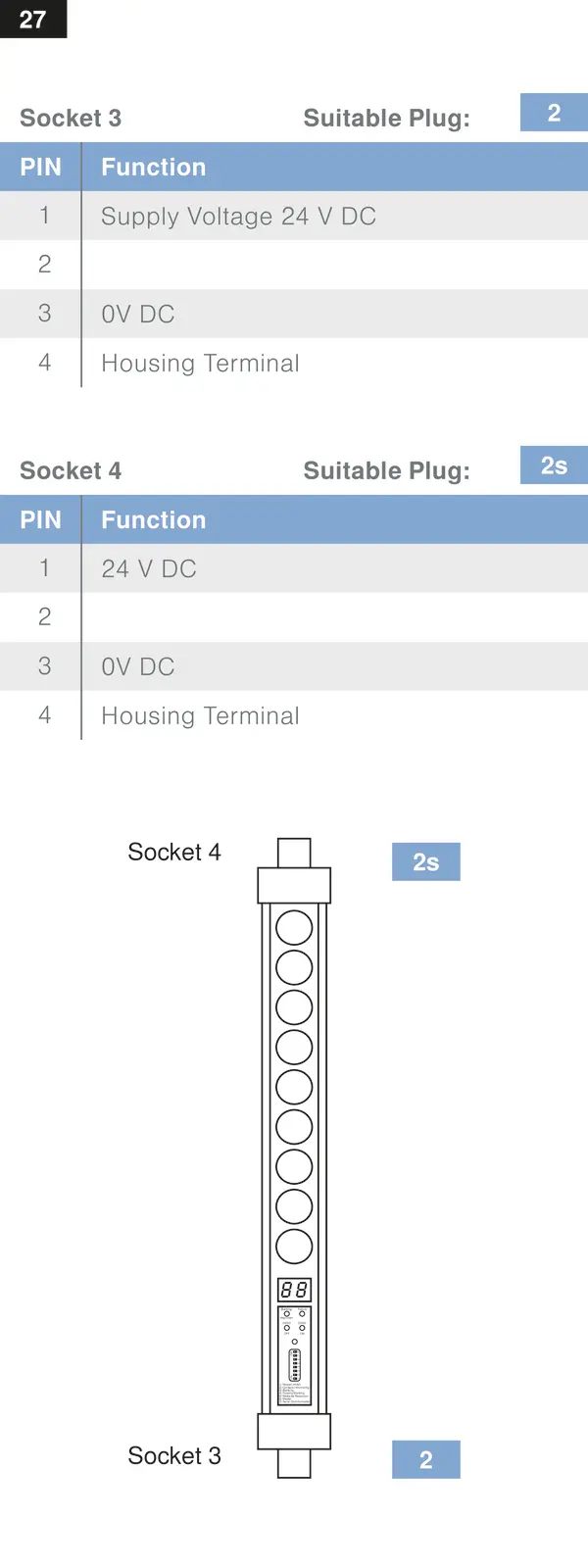

  • Connection: M12 × 1; 4-pin
  • Weight: 1,660 g
  • ESPE Type (EN 61496): 4
  • Safety Category (EN ISO 13849-1): 4
  • Performance Level (EN ISO 13849-1): PL e
  • PFHD: 3,08 × E-8 1/h
  • Mission Time TM (EN ISO 13849-1): 20 a
  • Body Protection: yes
  • Scope of functions: Basic function
  • Complementary Products: Protection Column with Protective Screen SZ000EG125NN01, Protection Column with Path-Folding Mirror SZ000EU125NN01, Laser Alignment Tool SZ0-LAH1, Path-Folding Mirror Z2UG003, Software
These safety light arrays are distinguished by their compact design. They are also equipped with numerous auxiliary functions, allowing for adaptation to the respective application in a highly individualized fashion. The adequate mounting angle BEF-SET-33 is included in the delivery.
