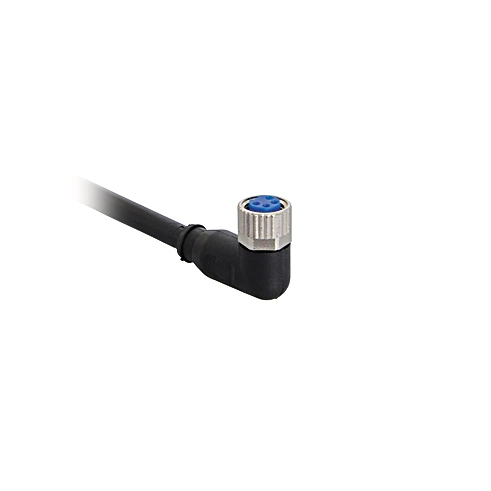

Wenglor S60-10MPUR Connection Line M8 × 1; 4-pin

Connection Line M8 × 1; 4-pin.

$39.90
Part Number
  • S60-10MPUR
Highlights...

Features

  • Halogen free, drag chain suitability
  • PUR, angled
  • Supply Voltage: ≤ 50 V AC/DC
  • Connection 1: Socket, angled

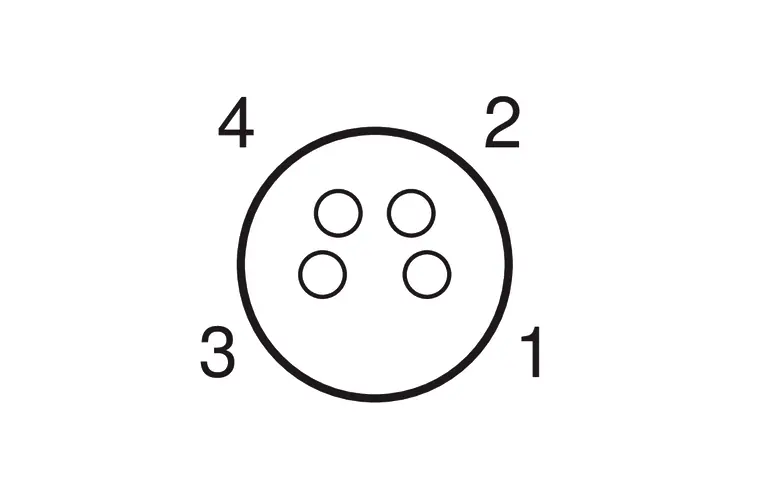

  • Connection mode 1: M8 × 1, 4-pin
  • Connection 2: stripped
  • Torque: M8: 0,4 Nm
  • Cable length (L): 10 m
  • Outer diameter (d): 4.7 mm
  • Wire cross-section: 0.25 mm²
  • Degree of Protection: IP67
  • Temperature range (fixed installation): -13°F to 176°F
  • Temperature range (moving application): -25 to 80
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: Plastic, PP
  • Material Sleeve Nut: Brass, nickel-plated
  • Halogen-free: yes
  • Drag Chain Suitable: yes
  • Bending radius (fixed installation): 5 × d
  • Bending radius (used in motion): 10 × d
  • Travel speed (with 5 m horizontal travel distance): ≤ 3 m/s
  • Acceleration: ≤ 10 m/s²
  • Bending cycles: ≤ 10000000
  • Weight: 285 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
