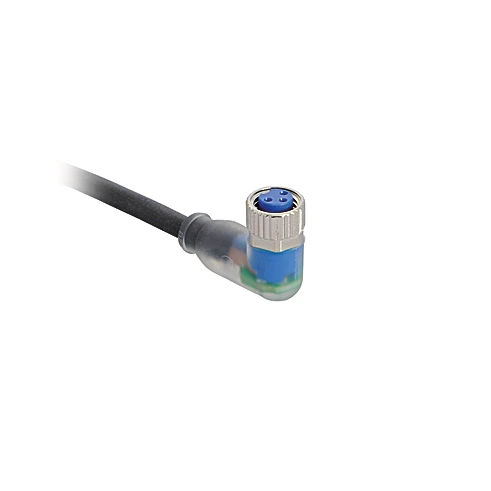

Wenglor S56-5M Connection Line M8 × 1; 3-pin

Connection Line M8 × 1; 3-pin.

$29.50
Part Number
  • S56-5M
Highlights...

Features

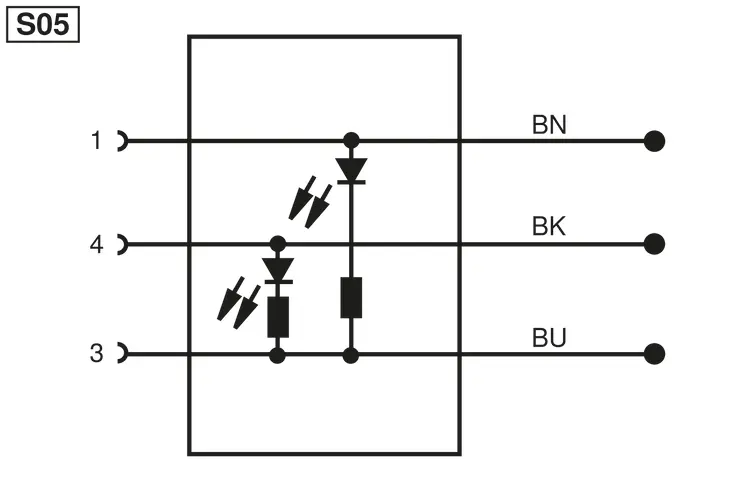

  • With LED, angled
  • Supply Voltage: ≤ 24 V DC
  • Connection 1: Socket, angled

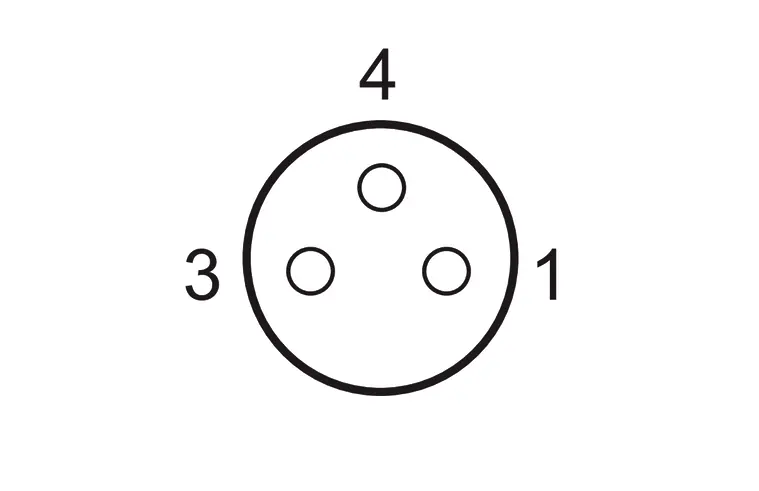

  • Connection mode 1: M8 × 1, 3-pin
  • Connection 2: stripped
  • Torque: M8: 0,4 Nm
  • Cable length (L): 5 m
  • Outer diameter (d): 4.5 mm
  • Wire cross-section: 0.25 mm²
  • Display: LED
  • Degree of Protection: IP67
  • Temperature range (fixed installation): -22°F to 176°F
  • Temperature range (moving application): 23°F to 176°F
  • Cable Jacket Material: PVC
  • Material Wire Insulation: Plastic, PVC
  • Material Sleeve Nut: Brass, nickel-plated
  • Weight: 150 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
