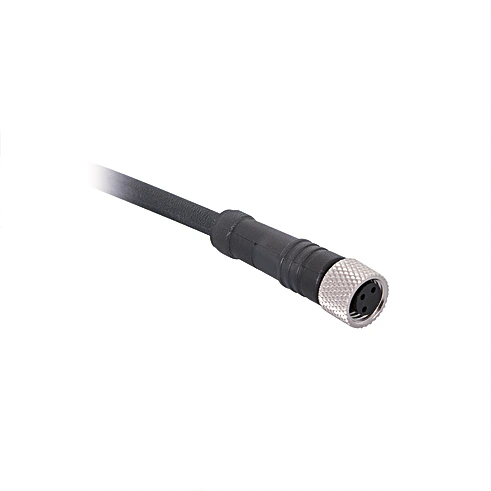

Wenglor S49-5MPUR Connection Line M8 × 1; 3-pin

Connection Line M8 × 1; 3-pin.

$28.30
Part Number
  • S49-5MPUR
Highlights...

Features

  • Halogen free, drag chain suitability
  • PUR, straight
  • Supply Voltage: ≤ 63 V AC/DC
  • Connection 1: Socket, straight

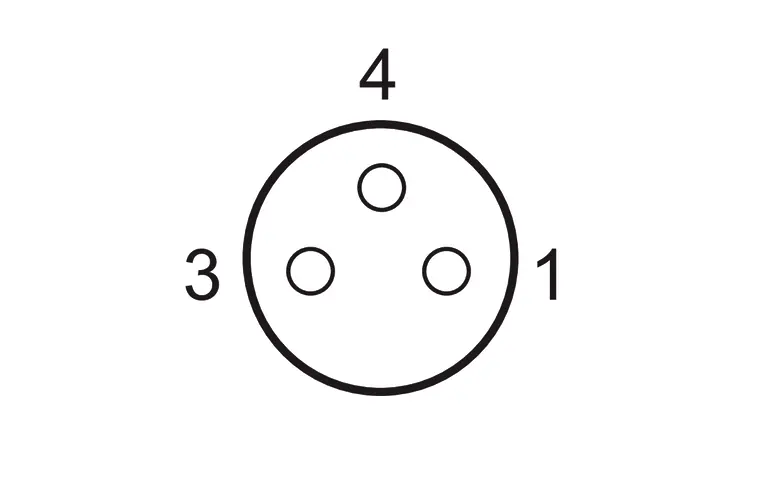

  • Connection mode 1: M8 × 1, 3-pin
  • Connection 2: stripped
  • Torque: M8: 0,3 Nm
  • Cable length (L): 5 m
  • Outer diameter (d): 4.3 mm
  • Wire cross-section: 0.34 mm²
  • Degree of Protection: IP67
  • Temperature range (fixed installation): -58°F to 176°F
  • Temperature range (moving application): -13°F to 176°F
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: Plastic, PP
  • Material Sleeve Nut: Brass, nickel-plated
  • Halogen-free: yes
  • Drag Chain Suitable: yes
  • Bending radius (fixed installation): > 5 × d
  • Bending radius (used in motion): > 10 × d
  • Travel speed (with 5 m horizontal travel distance): ≤ 5 m/s
  • Acceleration: ≤ 5 m/s²
  • Bending cycles: > 5000000
  • Weight: 129 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
