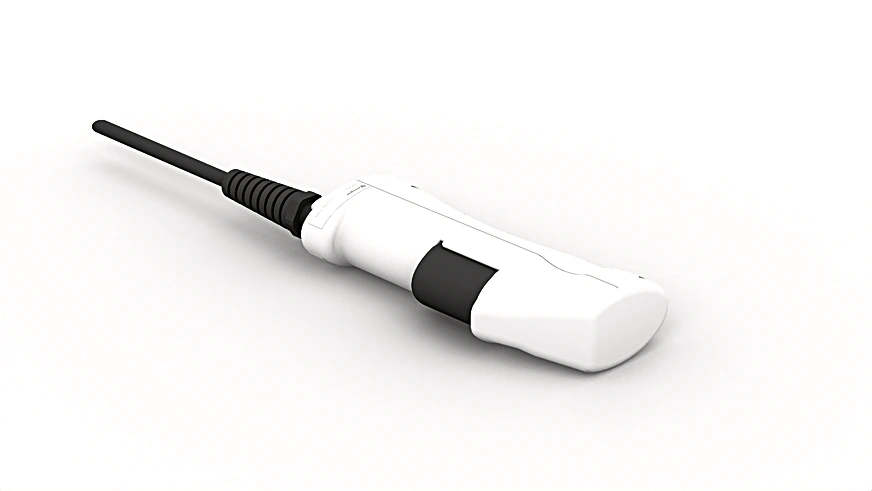

Wenglor S2DF003 Enabling Switch

Enabling Switch.

$572.00
Part Number
  • S2DF003
Highlights...

Features

  • One-hand operation thanks to ergonomic design
  • Rubberized enabling switch
  • Temperature Range: 23°F to 140°F
  • Housing Material: Plastic
  • Service Life (Switching Cycles): 1000000
  • Degree of Protection: IP54
  • Connection Type: XXX
  • Connection: Cable; 12-wire
  • Cable length (L): 10 m
  • Weight: 940 g
  • B10d Switching Cycles: 100 000

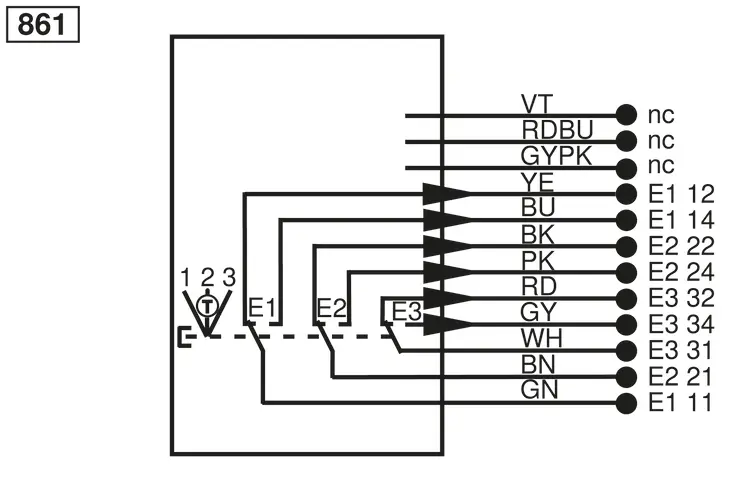

  • Changeover Contacts: 3
  • Scope of delivery: 1 × quick start, 1 × enabling switch
  • 3-stage: yes
  • Complementary Products: Safety Relay SR4B3B01S, SR4D3B01S, Software
The 3-stage enabling switch is very well suited to extensive commissioning or service work thanks to the special design. The ergonomic design prevents fatigue and makes work easier.
