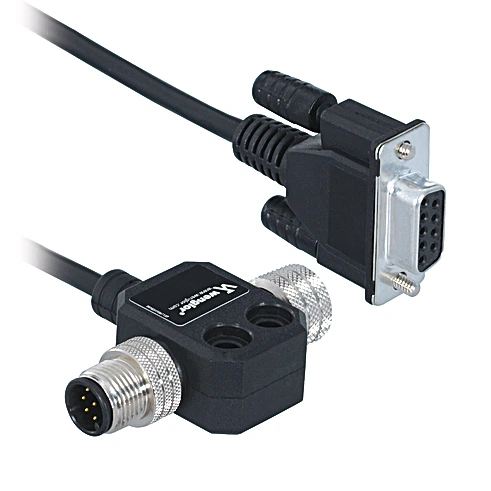

Wenglor S232W3 Interface Cable

Interface Cable.

$96.00
Part Number
  • S232W3
Highlights...

Features

  • Socket M12 × 1, angled
  • Socket SUB D, 9-pin
  • Screened
  • Plug M12 × 1, angled
  • Connection 1: Socket, straight
  • Connection mode 1: SUB D, 9-pin
  • Connection 2: Socket, angled / Plug, angled
  • Connection mode 2: M12 × 1, 8-pin
  • Torque: M12: 0,6 Nm
  • Coding: A-coding
  • Cable length (L): 1.5 m
  • Outer diameter (d): 4.4 mm
  • Wire cross-section: 0.25 mm²
  • Degree of Protection: IP50
  • Temperature Range: 14°F to 140°F
  • Cable Jacket Material: Plastic, PUR
  • Material Wire Insulation: Plastic, PVC
  • Material Sleeve Nut: Brass, nickel-plated
  • Equipment: Shielded
  • Weight: 99 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
