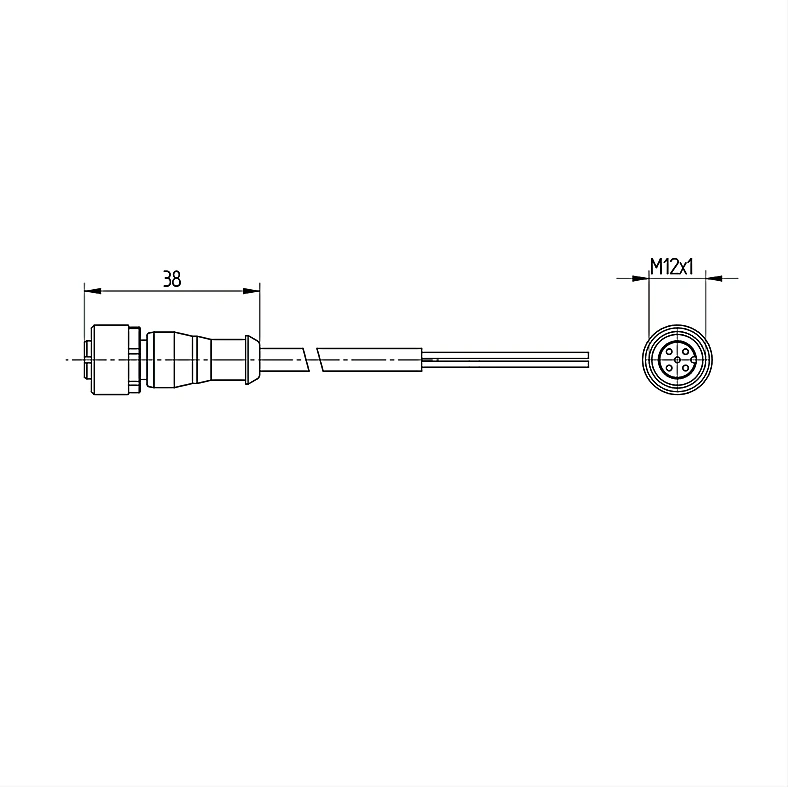

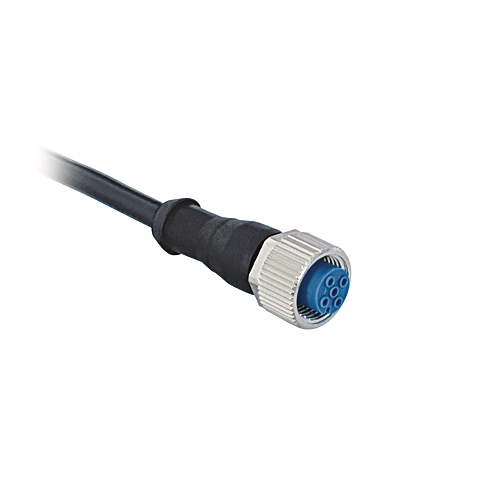

Wenglor S23-15M Connection Line M12 × 1; 4-pin

Connection Line M12 × 1; 4-pin.

$39.90
Part Number
  • S23-15M
Highlights...

Features

  • Straight
  • Supply Voltage: ≤ 250 V DC/AC
  • Connection 1: Socket, straight

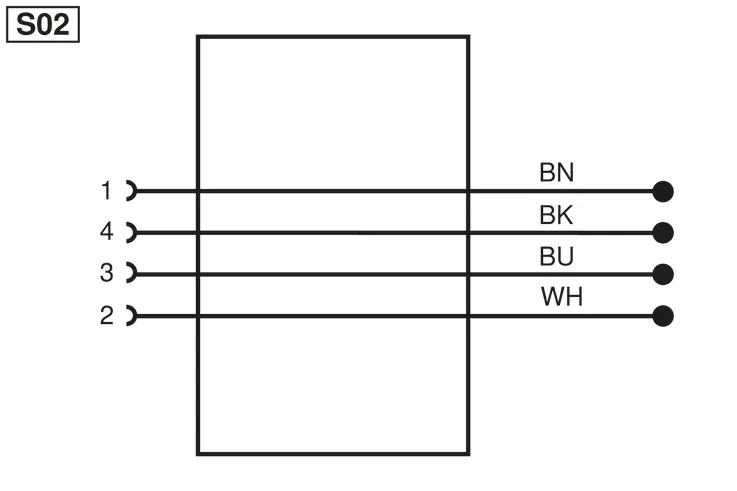

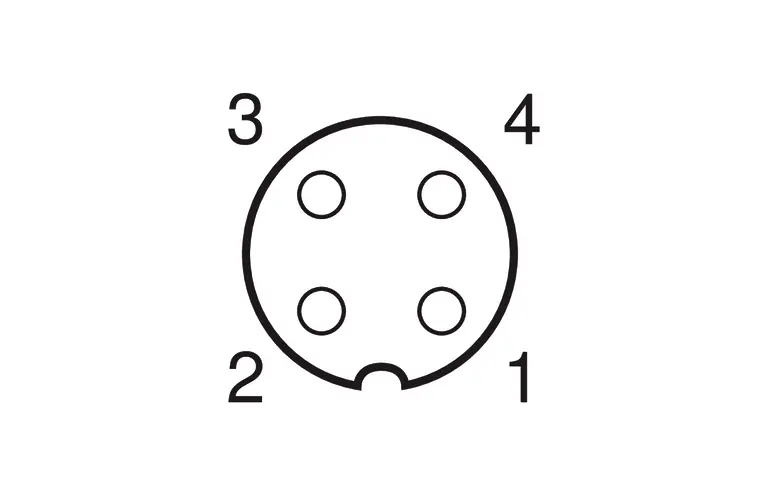

  • Connection mode 1: M12 × 1, 4-pin
  • Connection 2: stripped
  • Torque: M12: 0,6 Nm
  • Coding: A-coding
  • Cable length (L): 15 m
  • Outer diameter (d): 5 mm
  • Wire cross-section: 0.34 mm²
  • Degree of Protection: IP67
  • Temperature range (fixed installation): -22°F to 176°F
  • Temperature range (moving application): 23°F to 176°F
  • Cable Jacket Material: Plastic, PVC
  • Material Wire Insulation: Plastic, PVC
  • Material Sleeve Nut: Brass, nickel-plated
  • Weight: 592 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
