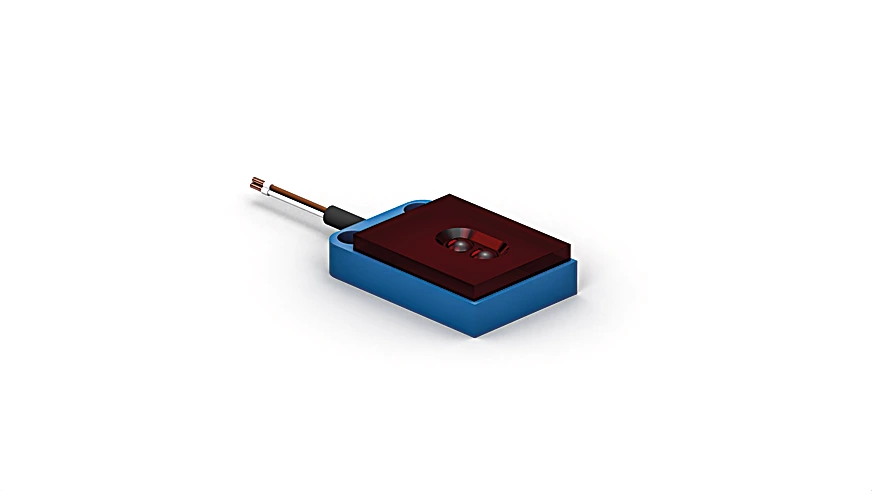

Wenglor S1FL66 Through-Beam Sensor

Through-Beam Sensor.

$79.60
Part Number
  • S1FL66
Highlights...

Features

  • Rear panel mounting
  • Test input
  • Range: 1,000 mm
  • Light Source: Infrared, LED
  • Service Life (T = 77°F): 100,000 h
  • Opening Angle: 25 °
  • Sensor Type: Emitter
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Reverse Polarity Protection: yes
  • Test input: PNP
  • Protection Class: III
  • Housing Material: Plastic, ABS-GF
  • Degree of Protection: IP67

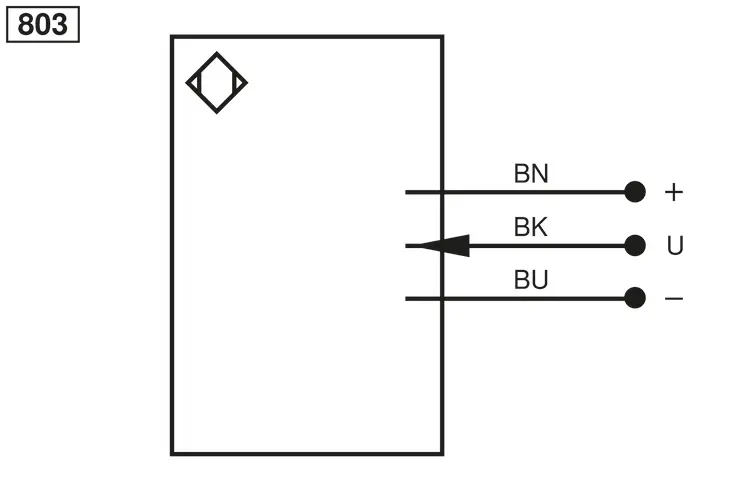

  • Connection: Cable; 3-wire
  • Cable length (L): 2 m
  • Cable Jacket Material: PVC
  • Wire cross-section: 0.09 mm²
  • Weight: 21 g
  • MTTFd (EN ISO 13849-1): 6,531.61 a
  • Scope of delivery: 1 × BEF-SET-23 mounting set, 1 × initial start-up instructions, 1 × sensor
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
