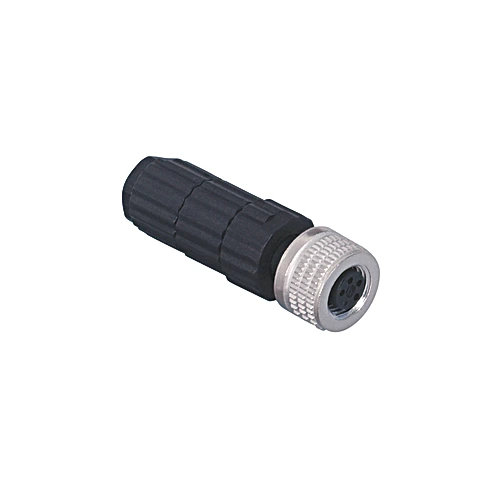

Wenglor S07G Connection Socket M8 × 1; 4-pin

Connection Socket M8 × 1; 4-pin.

$22.90
Part Number
  • S07G
Highlights...

Features

  • Socket M8 × 1, straight
  • Connection 1: Socket, straight

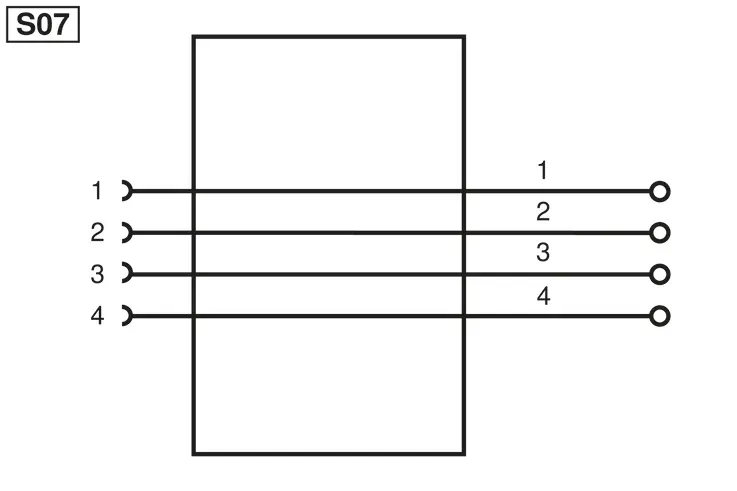

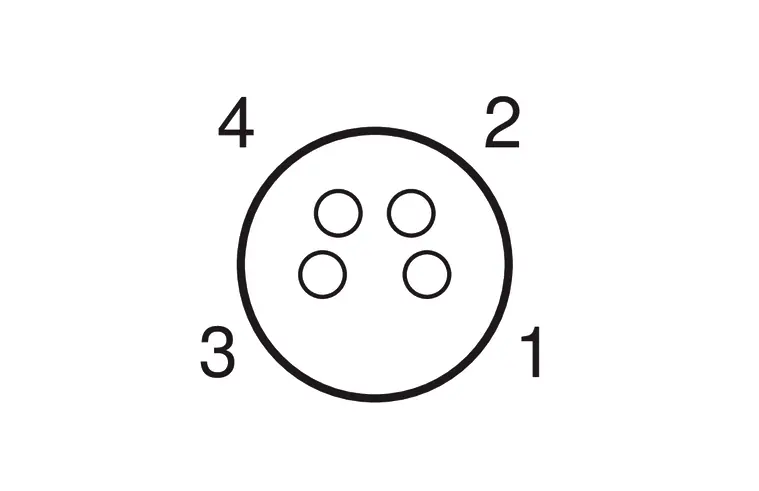

  • Connection mode 1: M8 × 1, 4-pin
  • Torque: M8: 0,4 Nm
  • Outer diameter (d): 4 to 5 mm
  • Wire cross-section: 0.14 to 0.34 mm²
  • Assembling: Pin penetration
  • Degree of Protection: IP67
  • Temperature Range: -13°F to 158°F
  • Material Sleeve Nut: Zinc, nickel-plated
  • Weight: 12 g
  • Scope of delivery: 1 × connection socket
  • Packaging unit: 1 Piece
