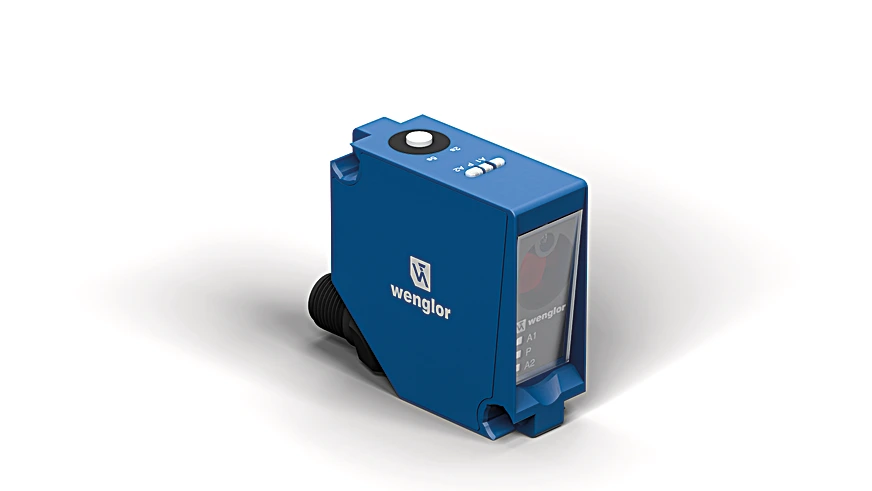

Wenglor P1PY133 Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$707.00
Part Number
  • P1PY133
Highlights...

Features

  • 2 mutually independent switching outputs
  • Wide working range and precise detection thanks to DS technology
  • No interactive influence

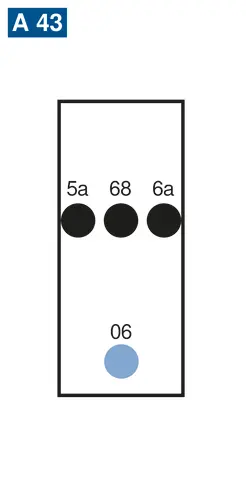

  • Intuitive operating concept
  • Large light spot
  • Working Range: 0 to 5,000 mm
  • Setting Range: 50 to 5,000 mm

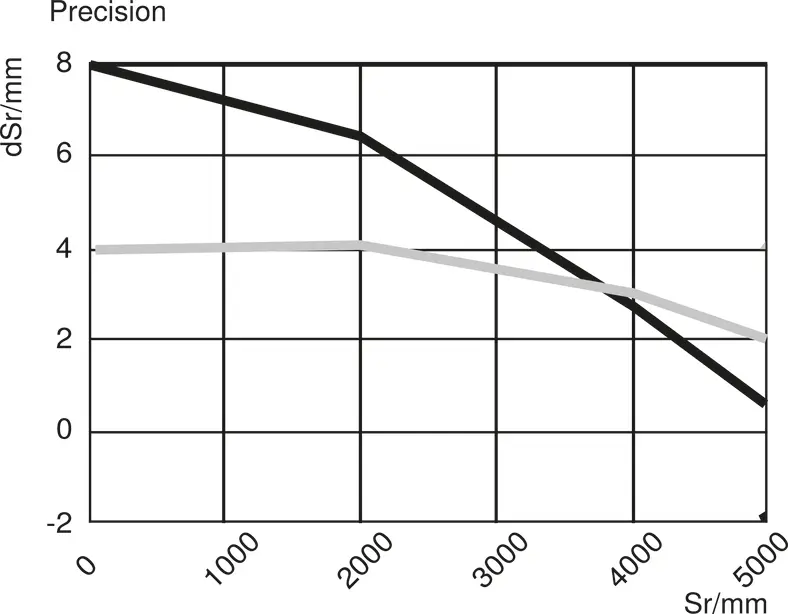

  • Reproducibility maximum: 3 mm*
  • Linearity Deviation: 10 mm*
  • Switching Hysteresis: < 15 mm
  • Light Source: Laser, red
  • Light spot geometry: Large light spot
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 100,000 Lux
  • Light Spot Diameter: see table 1
  • Reflector required: no
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 35 mA

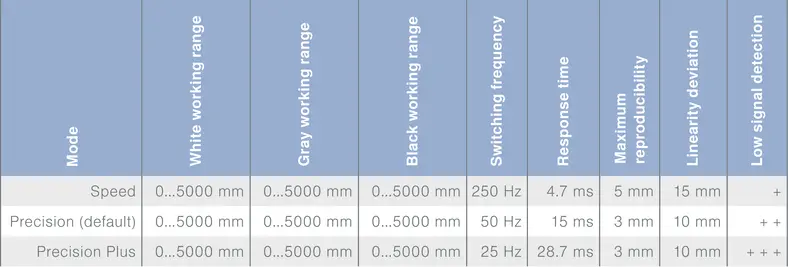

  • Switching Frequency: 50 Hz*
  • Switching Frequency (max.): 250 Hz*
  • Response Time: 15 ms *
  • Response Time (min.): 4.7 ms *
  • Temperature Drift: < 0.4 mm/K
  • Temperature Range: -40°F to 122°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • IO-Link transmission speed: COM3
  • Protection Class: III
  • FDA Accession Number: 2110079-001
  • Setting Method: Teach-In
  • Housing Material: Plastic, ABS
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP67, IP68
  • Connection Type: Plug variant

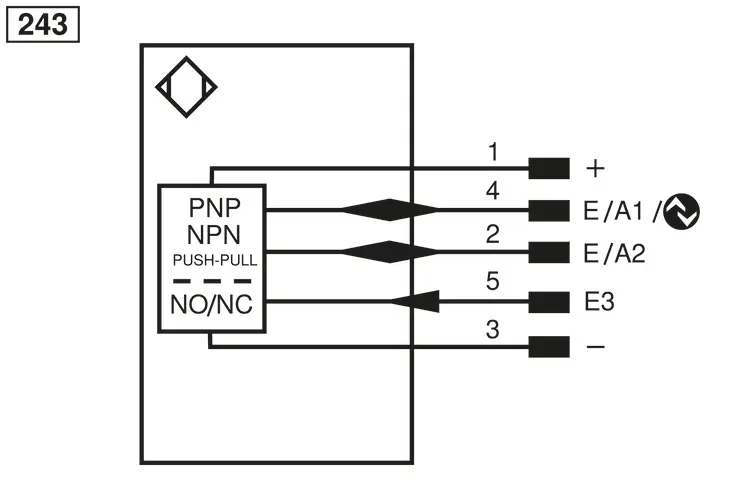

  • Connection: M12 × 1; 5-pin
  • Weight: 41 g
  • MTTFd (EN ISO 13849-1): 547.59 a
  • Scope of delivery: 1 × Z1PE002 mounting set, 1 × initial start-up instructions, 1 × sensor
  • NPN NO: yes
  • IO-Link: yes
  • Output: Error Output, Push-pull, NPN, PNP, Warning output
  • Circuit: NC, NC/NO, NC+NO, NO
  • Other parameters: Off-delay, On-delay, Filter, Unit of measure, Measuring mode, Emitted light, Sensor localization, Key illumination, Teach mode, Sensitivity
  • Working Distance: 0 m, 2 m, 5 m
  • Light Spot Diameter: 5 mm, 30 mm, 65 mm
  • Complementary Products: IO-Link Master, Protective Screen, Software, Dust extraction tube
The sensors function in accordance with the principle of transit time measurement with laser class 1. The wintec with Dynamic Sensitivity technology (DS) enables previously unattainable reception sensitivity even with very weak signals. The versions with a large light spot are suitable for reliably detecting objects with stamped, perforated or very uneven surfaces. The wintec also works very reliably in adverse ambient conditions, such as those caused by ambient light or dirt. Extensive condition monitoring functions additionally enable predictive maintenance and trouble-free operation.
