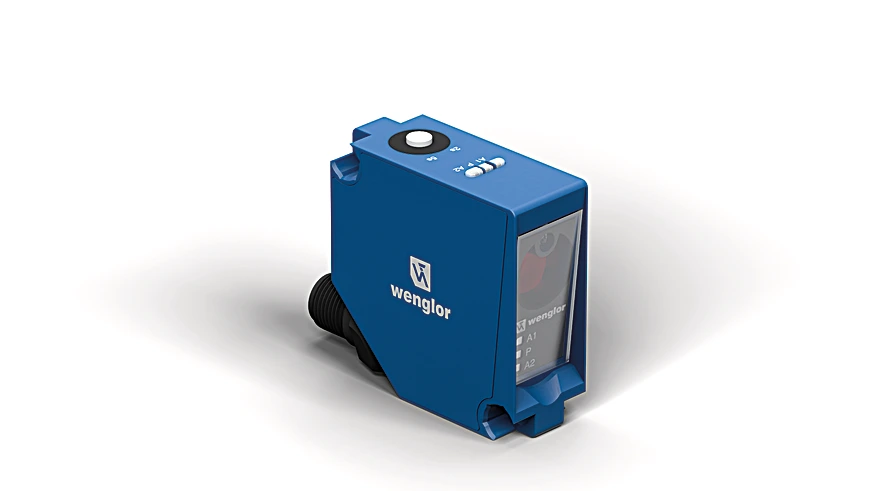

Wenglor P1PY111 Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$798.00
Part Number
  • P1PY111
Highlights...

Features

  • 2 mutually independent switching outputs
  • Wide working range and precise detection thanks to DS technology
  • No interactive influence
  • Built-in acceleration sensor
  • Working Range: 0 to 10,000 mm
  • Setting Range: 50 to 10,000 mm

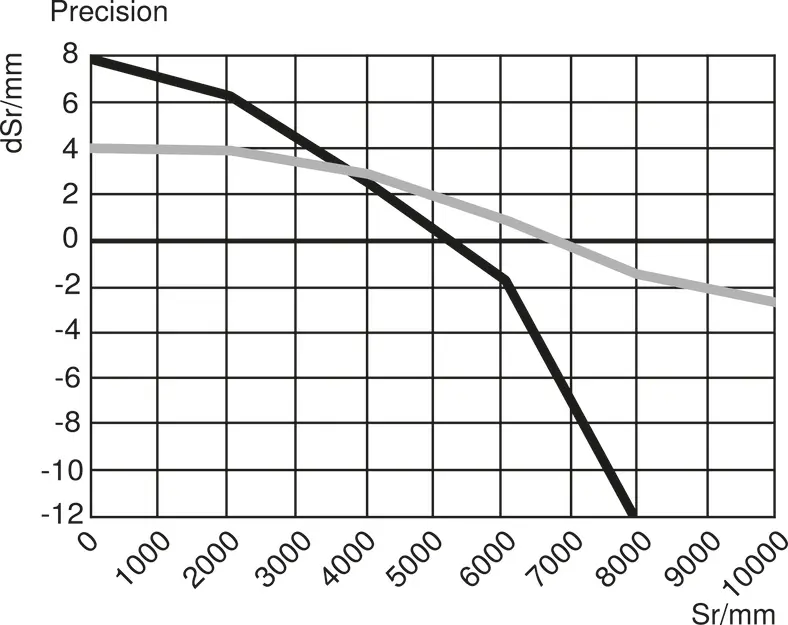

  • Reproducibility maximum: 3 mm*
  • Linearity Deviation: 10 mm*
  • Switching Hysteresis: < 15 mm
  • Light Source: Laser, red
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Beam Divergence: < 2 mrad
  • Max. Ambient Light: 100,000 Lux
  • Light Spot Diameter: see table 1
  • Reflector required: no
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 35 mA

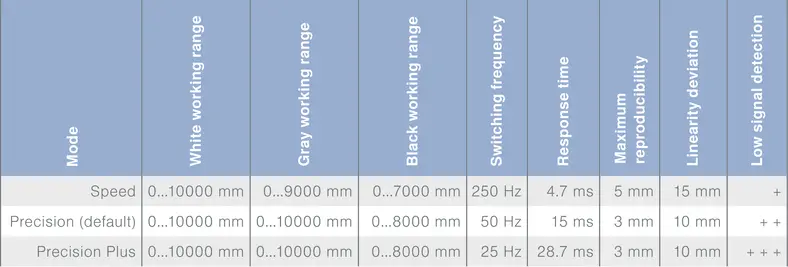

  • Switching Frequency: 50 Hz*
  • Switching Frequency (max.): 250 Hz*
  • Response Time: 15 ms *
  • Response Time (min.): 4.7 ms *
  • Temperature Drift: < 0.4 mm/K
  • Temperature Range: -40°F to 122°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • IO-Link transmission speed: COM3
  • Protection Class: III
  • FDA Accession Number: 2110079-001
  • Setting Method: Teach-In
  • Housing Material: Plastic, ABS
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP67, IP68
  • Connection Type: Plug variant
  • Connection: M12 × 1; 5-pin
  • Weight: 41 g
  • MTTFd (EN ISO 13849-1): 543.26 a
  • Scope of delivery: 1 × Z1PE002 mounting set, 1 × initial start-up instructions, 1 × sensor
  • PNP NO: yes
  • IO-Link: yes
  • Acceleration sensor: yes

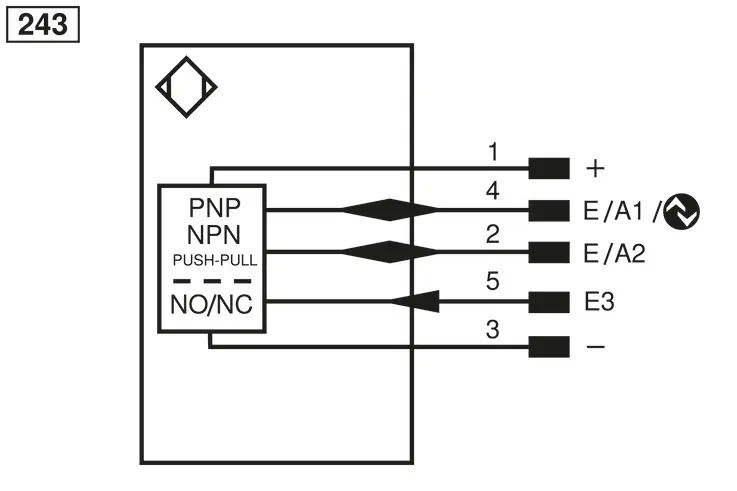

  • Output: Error Output, Push-pull, NPN, PNP, Warning output
  • Circuit: NC, NC/NO, NO, NC+NO
  • Other parameters: Off-delay, On-delay, Acceleration sensor, Sensitivity, Filter, Unit of measure, Measuring mode, Emitted light, Sensor localization, Key illumination, Teach mode
  • Working Distance: 0 m, 5 m, 10 m
  • Light Spot Diameter: 5 mm, 10 mm, 15 mm
  • Complementary Products: IO-Link Master, Protective Screen, Software, Dust extraction tube
The sensors function in accordance with the principle of transit time measurement with laser class 1. wintec with Dynamic Sensitivity technology (DS) enables previously unattainable reception sensitivity even with very weak signals. As a result, the sensors have a large working range of up to 10 m and can reliably detect dark or shiny objects even at extreme angles. wintec also works very reliably in adverse ambient conditions, such as those caused by ambient light or contamination. Extensive condition monitoring functions also enable predictive maintenance and trouble-free operation.
