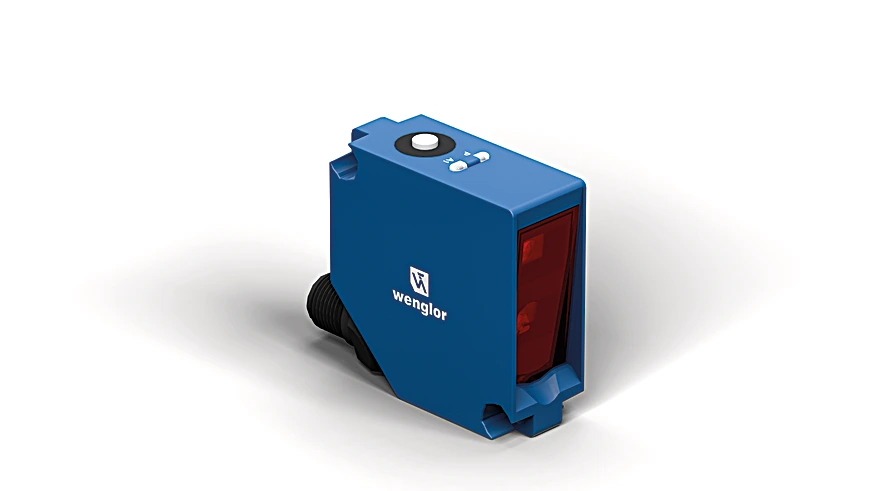

Wenglor P1PM104 Reflex Light Barrier

Reflex Light Barrier.

$432.00
Part Number
  • P1PM104
Highlights...

Features

  • Dynamic readjustment of the switching threshold
  • Recognition of high-gloss and jet black objects
  • IO-Link 1.1
  • No blind spot
  • Teach-in on moving background, such as feed belts
  • Range: 1,000 mm
  • Reference Background: White, 90% remission
  • Switching Hysteresis: < 5 %
  • Light Source: LED, red
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Optics: Two-Lens Optic
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Supply Voltage: 15 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 900 Hz
  • Switching Frequency (interference-free mode): 450 Hz
  • Response Time: 0.6 ms
  • Response time (interference-free mode): 1.1 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • PNP Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Teach Mode: moving background
  • Interface: IO-Link V1.1
  • IO-Link Version: 1.1
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68
  • Connection Type: Plug variant

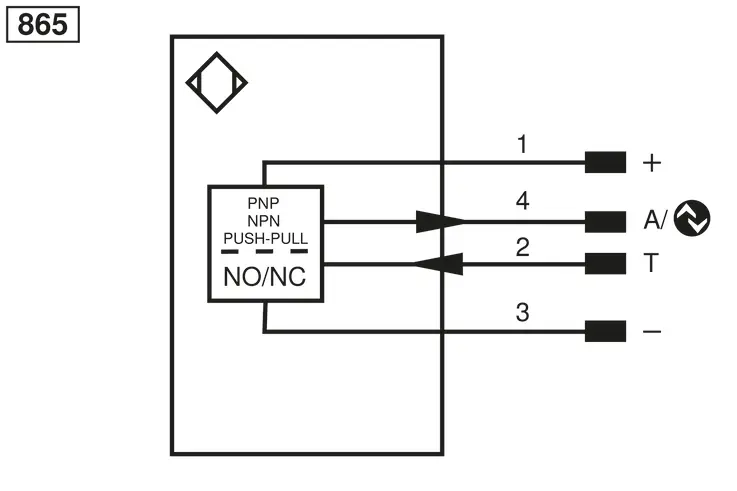

  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 35 g
  • MTTFd (EN ISO 13849-1): 803.65 a
  • Scope of delivery: 1 × Z1PE002 mounting set, 1 × initial start-up instructions, 1 × sensor
  • NPN NO: yes
  • External teach-in input: yes
  • IO-Link: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC+NO, NO
  • Other parameters: Off-delay, On-delay, Dynamic readjustment, Error output, Filter, Hysteresis, Emitted light, Teach mode
  • Range: 100 mm, 500 mm, 1000 mm
  • Light Spot Diameter: 16 mm, 22 mm, 33 mm
  • white (90 %): 0.1 to 1 m
  • grey (18 %): 0.1 to 0.7 m
  • black (6 %): 0.1 to 0.45 m
  • Stainless Steel: 0.1 to 1 m
  • Complementary Products: Protective Screen, Protective housing set, IO-Link Master, Software, Dust extraction tube
The reflex light barriers work with red light and detect objects both via the intensity of the backscattered light and via the distance to a previously taught-in reference background. Thanks to the combined detection principle, the sensors are suitable for contactless object detection without a reflector, regardless of color, shape or surface. Due to their large range, reflex light barriers enable ejection and presence check applications as well as object detection on wide feed belts. The IO-Link interface can be used to configure reflex light barriers (PNP/NPN, NC/NO, teach-in mode) as well as for reading out switching statuses.
